Teagle Tomahawk 8080 User Manual

Ref Description Part No. Q’ty Associated Components Part No. Q’ty
Kit complete SC3903
1 Hose clamp ¼ " HYD1960 1
2 Inspection plate SC3909 1 Washer M8 FAS2343P 5
Locknut M8 FAS2332 5
3 Housing top - giraffe SC3908 1 Setscrew M12 x 25 FAS2677P 6
Plain Washer M12 FAS2345P 12
Locknut M12 FAS2334 6
Setscrew M10 x 25 FAS2654P 2
Plain washer M10 FAS2344P 4
Locknut M10 FAS2333 2
Strap non re-usable FAS9051 1
4 Drive guard SC3710 1 Setscrew M10 x 20 FAS2652P 1
Plain washer M10 FAS2344P 1
5 Spacer segment small SC3707 2
6 Spacer / guide ring SC3708 1
7 Clamp segment SC3709 2 Setscrew M10 x 35 FAS2656P 10
Locknut M10 FAS2333 10
Grease Nipple 1/4" BSF BRG5004 4
8 One way restrictor HYD1755 2 Bonded seal 3/8” BSP HYD4202 4
3/8” x 3/8" M/M union HYD1012 2
9 Gear SC3412 1 Bolt M8 x 45 8.8 FAS9633P 1
Plain Washer 30 x 9 x 5 FAS2408 1
10 Spacer SC3413 1
11 Hydraulic motor – 200cc HYD5207 1 Setscrew M12 x 35 FAS2679P 2
Washer M12 FAS2345P 2
Locknut M12 FAS2334 2
Bonded seal 1/2 BSP HYD4204 2
1/2 x 3/8" M/M union HYD1115 2
Key FAS8113 1
Seal kit - Adan HYD4881 1
Seal kit – Geolink GSF HYD4885 1
12 Chute ram CYL1084 1 Pivot bush - Deflector SC3297 1
Pivot bush – ram body SC3417 1
Bolt M12 x 70 FAS9686P 1
Bolt M12 x 80 FAS9688P 1
Plain Washer M12 FAS2345P 2
13 Swivel chute SC3704 1
14 Deflector SC3942 1 Setscrew M12 x 20 FAS2675P 2
Locknut M12 FAS2334 2

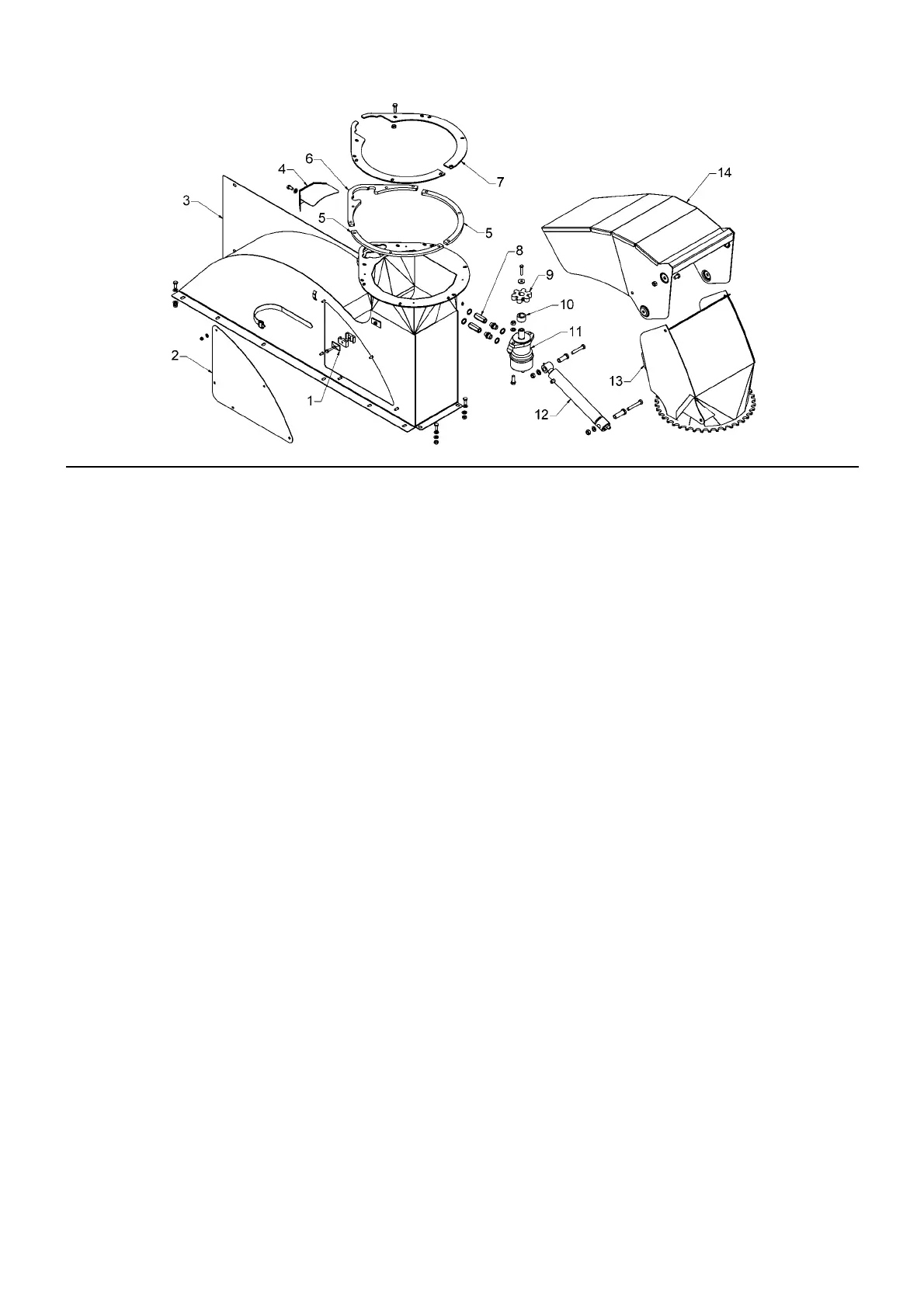

HORIZONTAL FLANGE GIRAFFE CHUTE & HOUSING
