Teagle Tomahawk 8080 User Manual

22

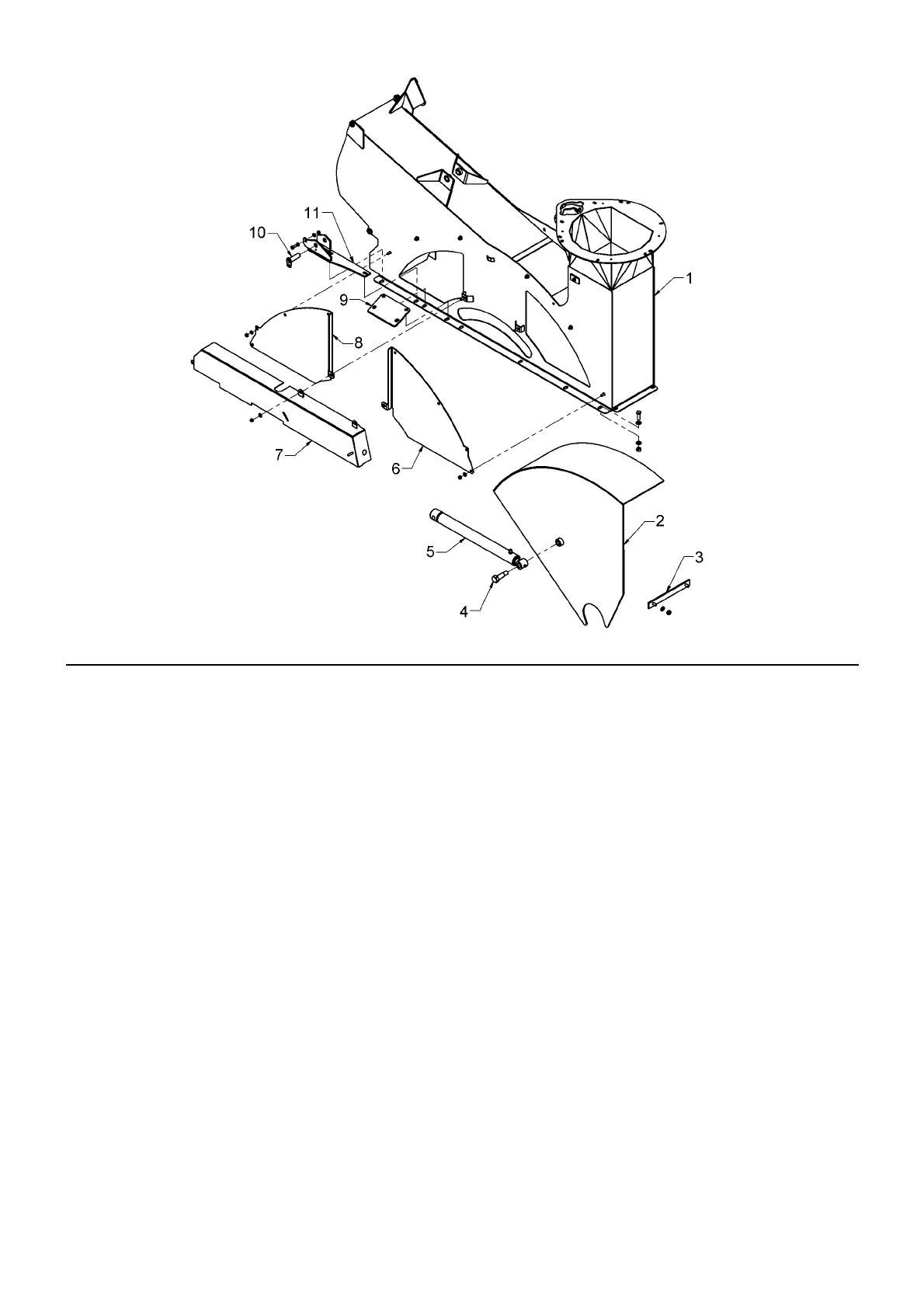

Ref Description T8080/T9090 Qty Associated Components Part No. Qty
Kit complete SC4025
1 Housing top SC4026 1 Setscrew M12 x 25 FAS2677P 4
Setscrew M12 x 30 FAS2678P 4
Plain Washer M12 FAS2345P 14
Locknut M12 FAS2334 8
Setscrew M10 x 25 FAS2654P 2
Plain washer M10 FAS2344P 4
Locknut M10 FAS2333 2
2 Segment SC4024 1
3 Segment stop SC4053 1 Washer M10 FAS2344P 2
Locknut M10 FAS2333 2
4 Pivot bolt – segment SC3476 1
5 Segment ram CYL1205 1 Grease nipple ¼” BSF BRG5004 2
6 Cover plate – L.H. SC4027 1 Plain washer M8 FAS2343P 4
Locknut M8 FAS2332 4
7 Ram cover plate SC4029 1 Setscrew M8 x 20 FAS2627P 1
Plain washer M8 FAS2343P 2
Locknut M8 FAS2332 1
8 Cover plate – R.H. SC4028 1 Plain washer M8 FAS2343P 4
Locknut M8 FAS2332 4
9 Hose carrier mounting SC3628 1
10 Ram pivot pin SC3457 1 Setscrew M8 x 20 FAS2627P 1
Spring washer M8 FAS2353P 1
11 Ram mounting bracket SC4051 1
All other components as listed for the Right Hand Chute / Horizontal Swivel Chute and Housings
TWIN CHUTE HOUSING
