Technaxx TX-29 User Manual

28

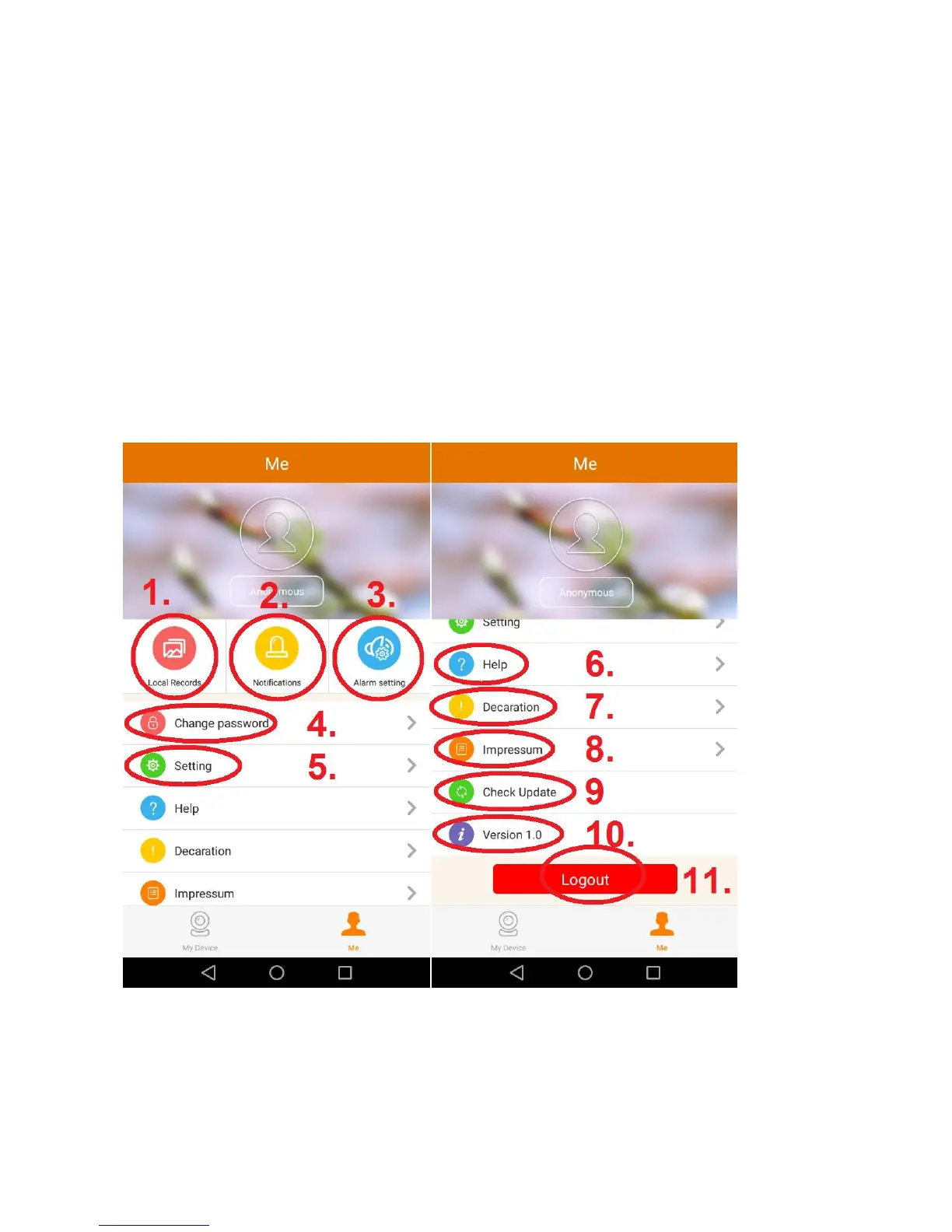

Functions under Me
1. Local Records: Take a look at your manually taken photo & Video.
2. Notifications list: Look up different notifications.
3. Alarm setting: Enable or disable the Alarm setting
4. Change password: You can change the password
5. Setting: Enable or disable the option of 2G/3G/4G network use, set the limit of mobile,
data traffic, look up the mobile data traffic statistics and the video quality that should be
used as default.
6. Help: A short help file is implemented into the APP to help with the basics.
7. Declaration: Statement about application usage.
8. Impressum: Here you can see company information.
9. Check update: Here you can check if your APP is up-to-date.
10. Version: Shows the version number of the APP.
11. Logout: Press Logout to logout as user or for changing the user.

Technaxx TX-29 Specifications

General

LED type	IR
Rotating	-
Megapixel	1 MP
Sensor type	CMOS
Heat function	No
Camera included	Yes
Camera interface	Wi-Fi/RJ-45
Camera resolution	1280 x 720 pixels
Number of cameras	1
Fixed focal length	4 mm
Optical sensor size	1/4 \
Placement supported	Indoor
Camera shutter speed	1/25 - 1/25000 s
Minimum illumination	0.01 lx
Night vision distance	15 m
Connectivity technology	Wired & Wireless
Surveillance camera form factor	Bullet
International Protection (IP) code	IP66
Placement	Table, Wall
Display type	LCD
Display diagonal	10.1 \
HDD size	2.5 \
Video in	AV
HDD interface	Serial ATA
Channels quantity	- channels
Storage media type	HDD
USB 2.0 ports quantity	2
Maximum internal memory	4000 GB
Supported network protocols	UPnP, SMTP (SSL), PPPoE, DHCP, DDNS
Supported video modes	720p
Video compression formats	H.264
Ethernet interface type	Fast Ethernet
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)

Weight and Dimensions

Camera depth	150 mm
Camera width	97 mm
Camera height	87 mm
Camera weight	550 g
Display depth	250 mm
Display width	36 mm
Display height	166 mm
Display weight	1000 g
