2.2 Rear Panel
2.2.1 Midi Security Kit PRO FullHD1080P TX-51

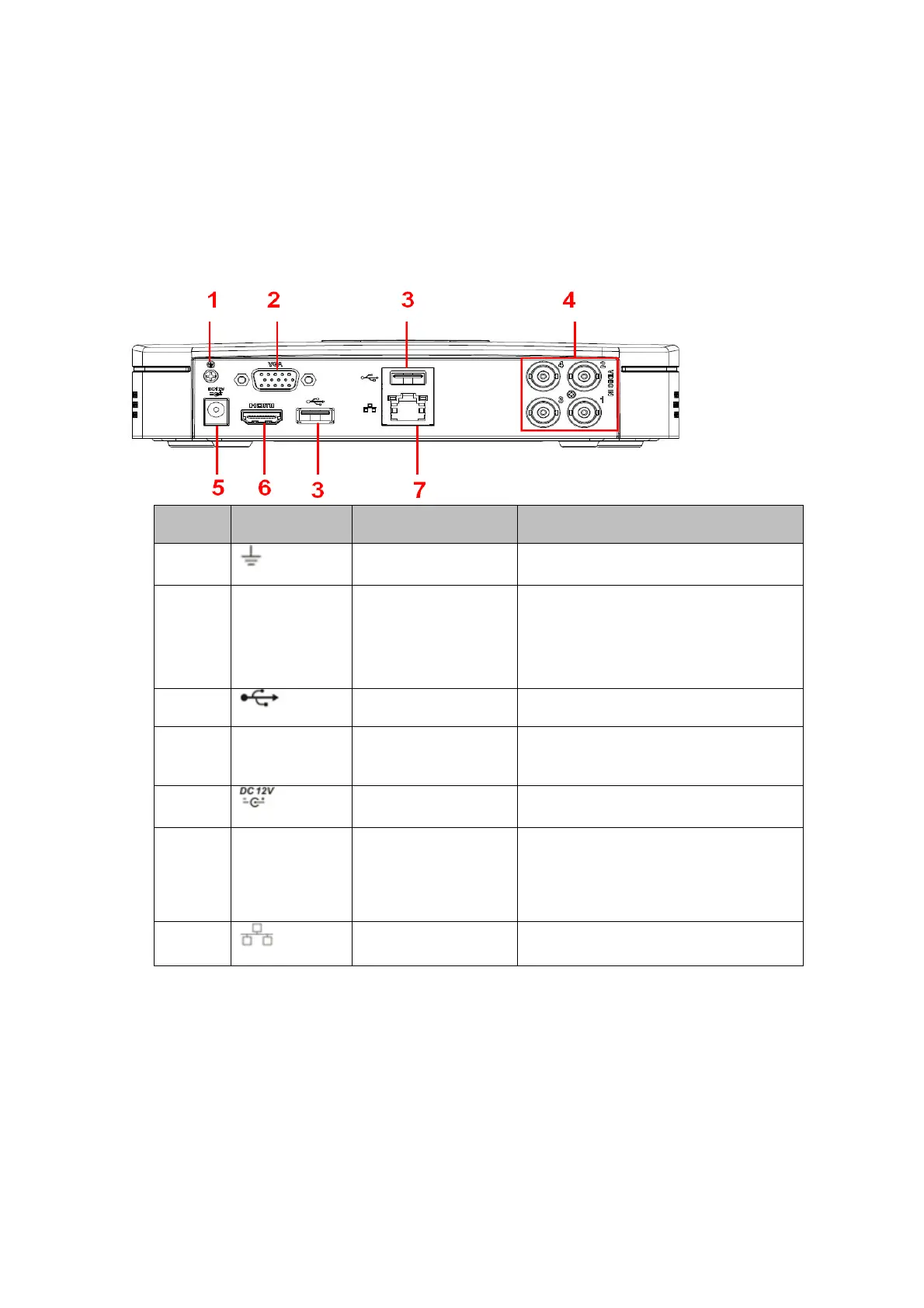

The rear panel of Midi Security Kit Pro TX-51 is shown as below. See Figure 2-2.
Refer to the following sheet for detailed information.
Figure 2-2
SN Icon Name Note
1
GND Ground end
2 VGA VGA video output
port
VGA video output port. Output
analog video signal. Can connect to
the monitor to view ananlog video
output.
3
USB2.0 port Connect to USB storage device,
mouse, burning DVD-ROM and etc.
4 VIDEO IN Video input port Connect to analog camera, video
input signal.
5
Power input port
Input 12V DC.
6 HDMI High definition
media interface
High definition audio and video
signal output port. It transmits
uncompressed high definition video
and multiple-channel data to the
HDMI port of the display device.
7
Network port
100M Ethernet port

When connect the Ethernet port, use crossover cable to connect the PC and use the
straight cable to connect to the switcher or router.
