28
4.4 Right-Click Menu
On the preview interface, right click mouse, you can view menu interface shown as in Figure 4-11.
Tips
After you go to the corresponding interface, right click mouse to go back to the upper-level.

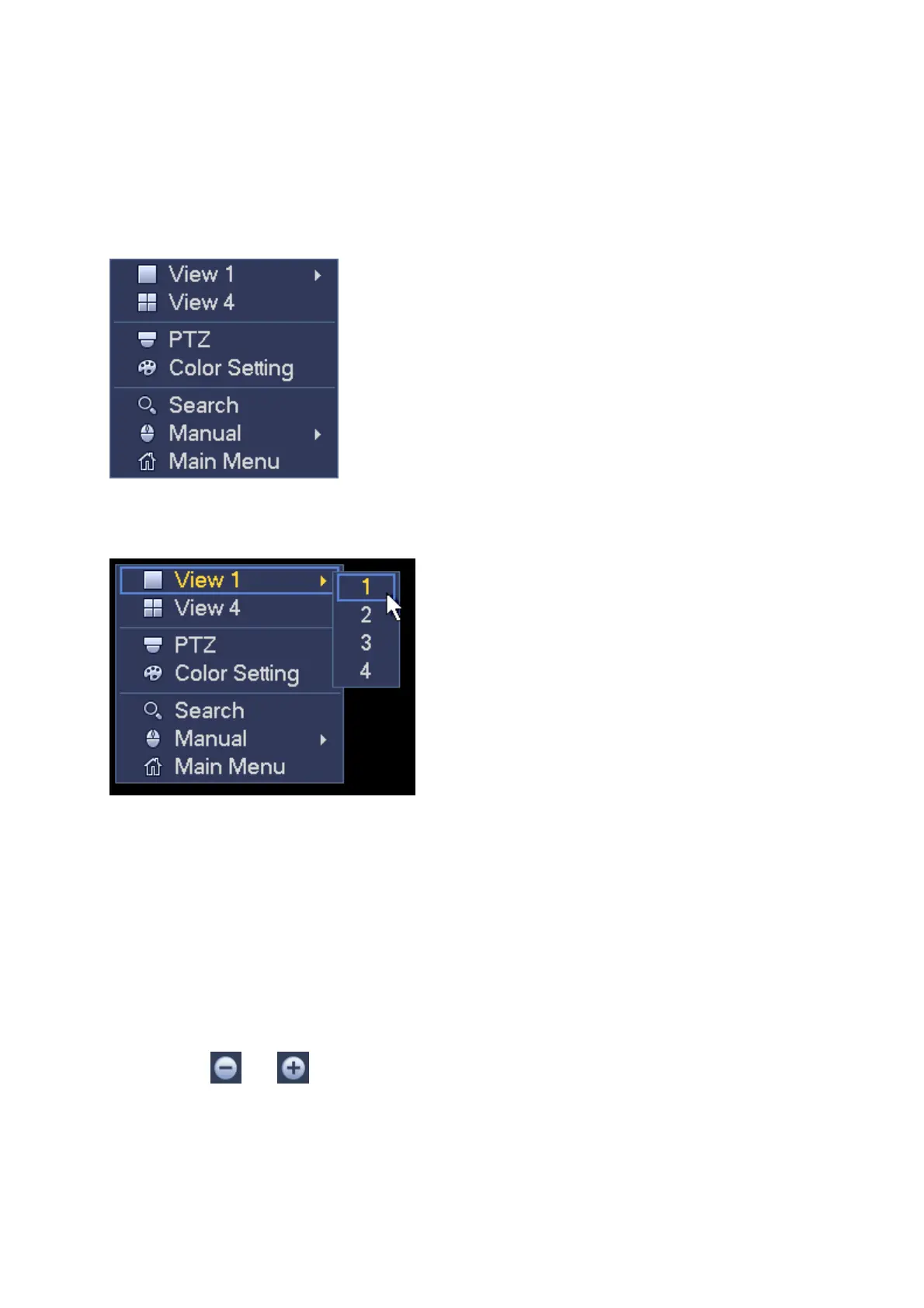

Figure 4-11
4.4.1 Window Switch
System supports 1/4-window. You can select from the dropdown list. See Figure 4-12.
Figure 4-12
4.4.2 PTZ Control
The PTZ setup is shown as in See Figure 4-13.
Note the commend name is grey once device does not support this function.
The PTZ operation is only valid in one-window mode.
Here you can control PTZ direction, speed, zoom, focus, iris, preset, tour, scan, pattern aux
function, light and wiper, rotation and etc. Speed is to control PTZ movement speed. The value
ranges from 1 to 8.The speed 8 is faster than speed 1. You can use the remote control to click
the small keyboard to set.
You can click
and of the zoom, focus and iris to zoom in/out, definition and brightness.
The PTZ rotation supports 8 directions. If you are using direction buttons on the front panel, there
are only four directions: up/down/left/right.
To Next Page
