61
4.10.1.3.4 Channel Name

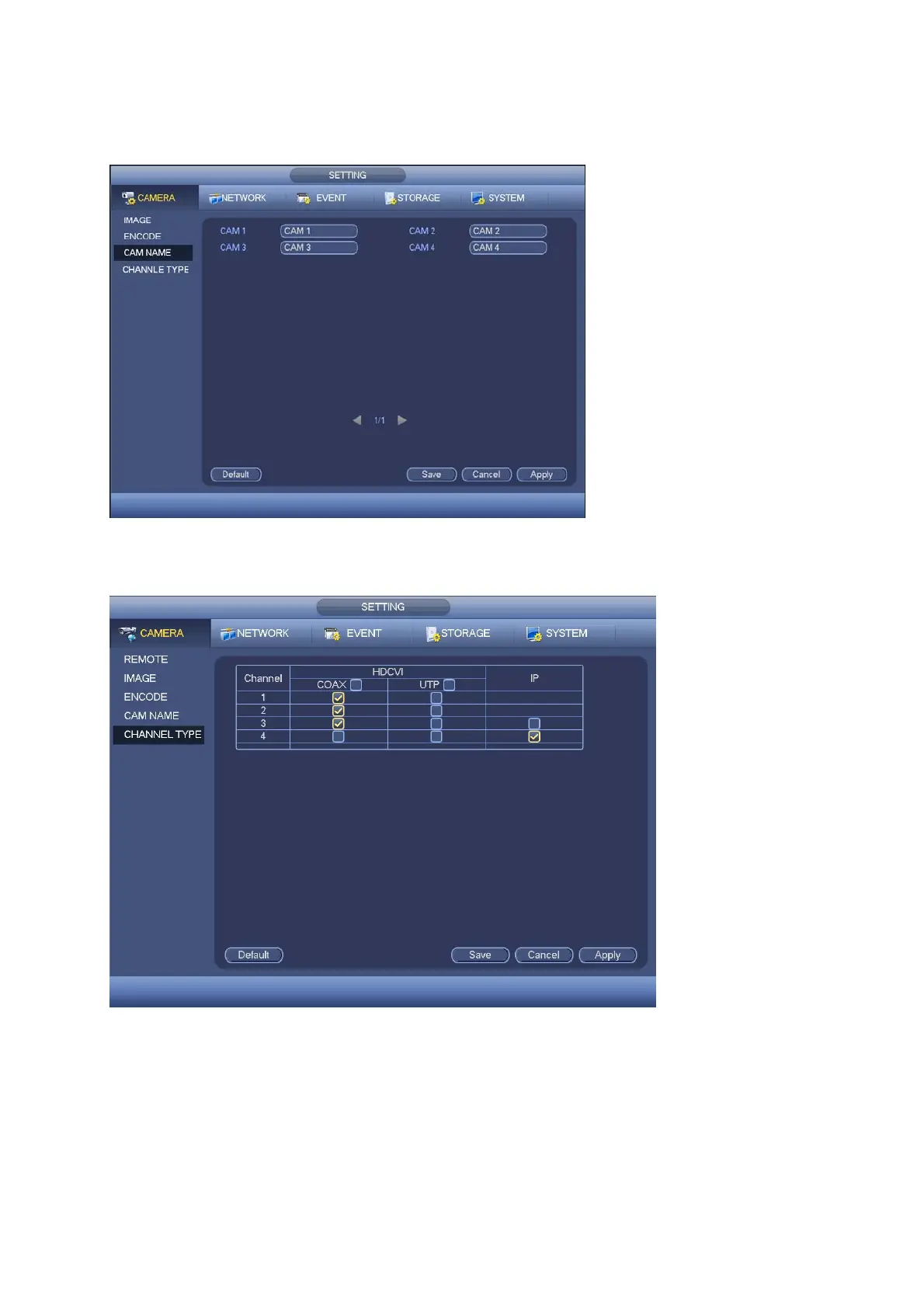

It is to modify channel name. It max supports 31-character. See Figure 4-60.
Figure4‐60
4.10.1.3.5 Channel Type
It is to set channel type. It supports coaxial/UTP. See Figure 4-61.
Figure4‐61
4.10.2 Network
4.10.2.1 TCP/IP
The interface is shown as in Figure 4-62
IP Version: There are two options: IPv4 and IPv6. Right now, system supports these two IP
address format and you can access via them.
MAC address: The host in the LAN can get a unique MAC address. It is for you to access in the
LAN. It is read-only.
