4.10.1.3.3 Overlay

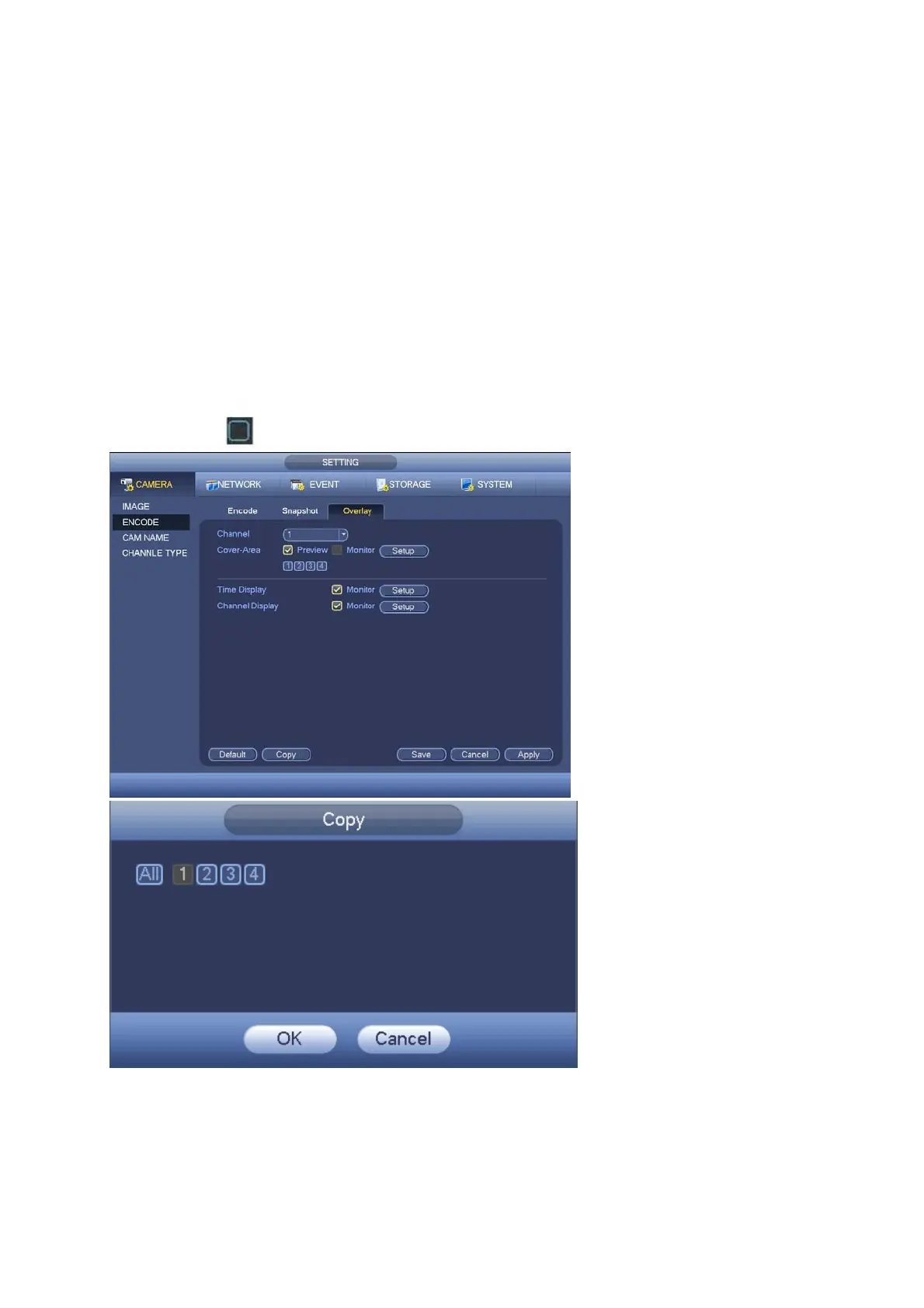

Overlay interface is shown as in Figure 4-58.
Cover area: Here is for you to set cover area. You can drag you mouse to set proper section
size. In one channel video, system max supports 4 zones in one channel.
Preview/monitor: privacy mask has two types. Preview and Monitor. Preview means the
privacy mask zone can not be viewed by user when system is in preview status. Monitor
means the privacy mask zone can not be view by the user when system is in monitor status.
Time display: You can select system displays time or not when you playback. Click set
button and then drag the title to the corresponding position in the screen.
Channel display: You can select system displays channel number or not when you playback.
Click set button and then drag the title to the corresponding position in the screen.
Copy：After you complete the setup, you can click Copy button to copy current setup to
other channel(s). You can see an interface is shown as in Figure 4-59. You can see current
channel number is grey. Check the number to select the channel or you can check the box
ALL. Click the OK button in Figure 4-59 and Figure 4-58 respectively to complete the setup.
Highlight icon
to select the corresponding function.
Figure 4-58
Figure4‐59
