52

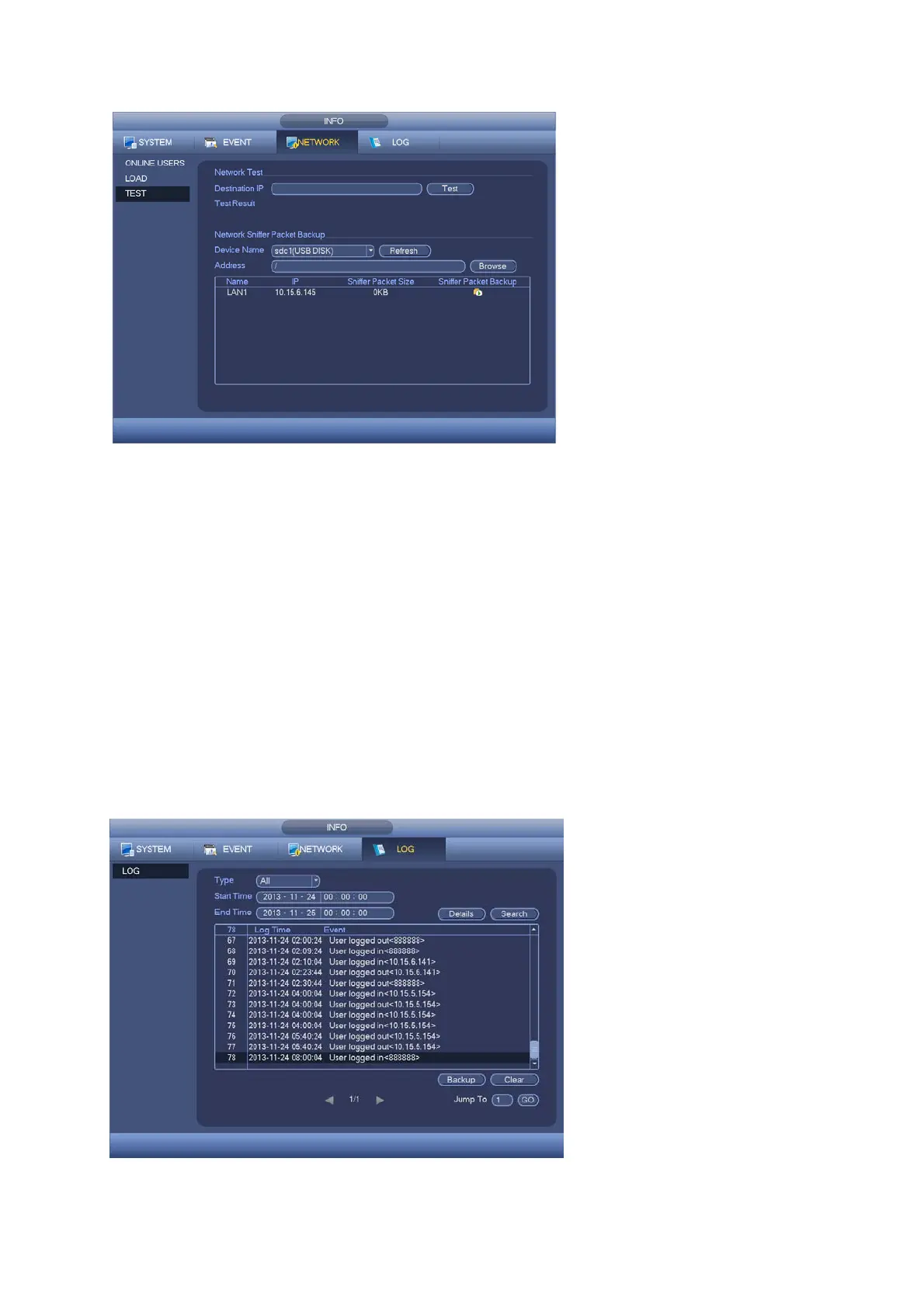

Figure4‐46
4.9.4 Log
Here is for you to view system log file. System lists the following information. See Figure 4-47.
Log types include system operation, configuration operation, data management, alarm event,
record operation, account manager, log clear, file operation and etc. It optimized reboot log.
There are only three types: normal reboot, abnormal reboot and protection reboot. 0x02、0x03、
0x04 is included in the protection reboot type.
Start time/end time: Select start time and end time, then click search button. You can view
the log files in a list. System max displays 100 logs in one page. It can max save 1024 log
files. Use page up/down button on the interface or the front panel to view more.
Backup: Select a folder you want to save; you can click the backup button to save the log
files. After the backup, you can see there is a folder named Log_time on the backup path.
Double click the folder, you can see the log file
Details: Click the Details button or double click the log item, you can view the detailed
information. See Figure 4-48. Here you can use rolling bar to view information, or you can
use Page up/Page down to view other log information.
Figure4‐47
