4.10.5.2.2 Tour

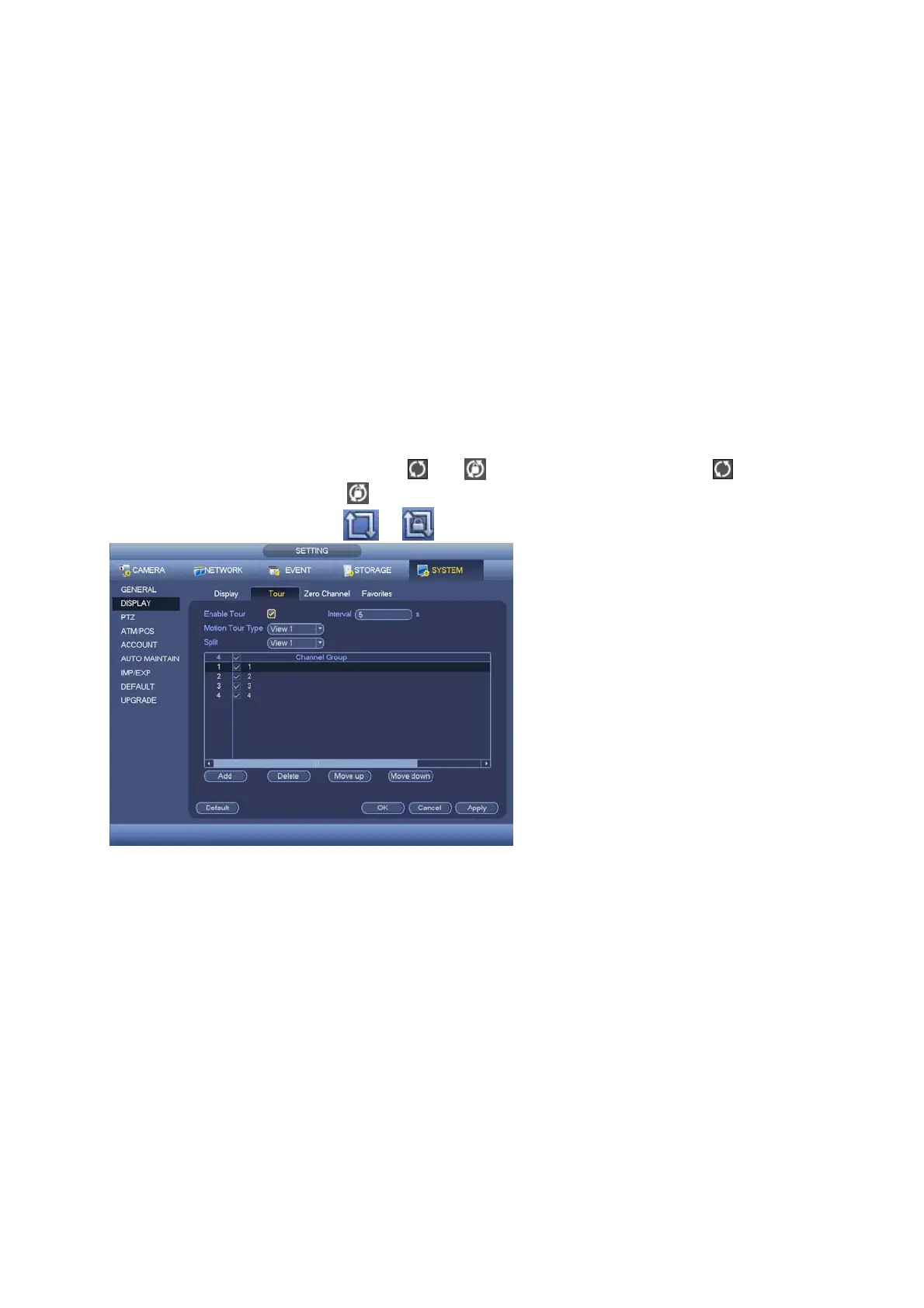

Here you can activate tour function. Click Setup button, you can see an interface shown as in
Figure 4-123
Enable tour: Highlight box here to enable this function.
Interval: System supports 1/8-window tour. Input proper interval value here. The value
ranges from 5-120 seconds. It is for schedule tour/alarm/motion detect tour.
Split: You can select window split mode from the dropdown list.
Channel group: It is to display all channel groups on current split mode. You can edit and
delete a channel group here. Double click an item in the list; you can edit its channel group
setup. Right now system max supports 32.
Add: Under specified window split mode, click it to add channel group.
Delete: Click it to remove selected channel group.
Move up: Click it to move current selected channel up.
Move down: Click it to move current selected channel down.
Default: Click it to restore default setup.
Tips:
Use mouse or Shift button to switch
and button to enable /disable tour. means the
tour funciton is enabled and
meas tour funciton is disabled.
On the navigation bar, click
or to enable/disable tour function.
Figure4‐123
4.10.5.2.3 Zero-channel Encoding
Click zero-channel encoding button, you can go to the following interface. See Figure 4-124.Here
you can enable and set zero-channel encoding function so that you can view several video
sources at one channel.
Enable: This function is disabled by default. Check the box here to enable this function so
that you can control the zero-channel encoding function at the WEB.
Compression: System default setup is H.264. You can set according to device capability.
Resolution: The resolution value may vary due to different device capabilities. Select from
the dropdown list.
Frame rate: The frame rate value may vary due to different device capabilities. Select from
the dropdown list.
Bit Rate: The bit rate value may vary due to different device capabilities and frame rate
setups. Select from the dropdown list.
Save: Click the Save button to save current setup. If this function is disabled, you can not
operate zero-channel encoding function at the WEB, the video is black or null even you
operate when the function is disabled. After you enabled this function, login the Web and you
