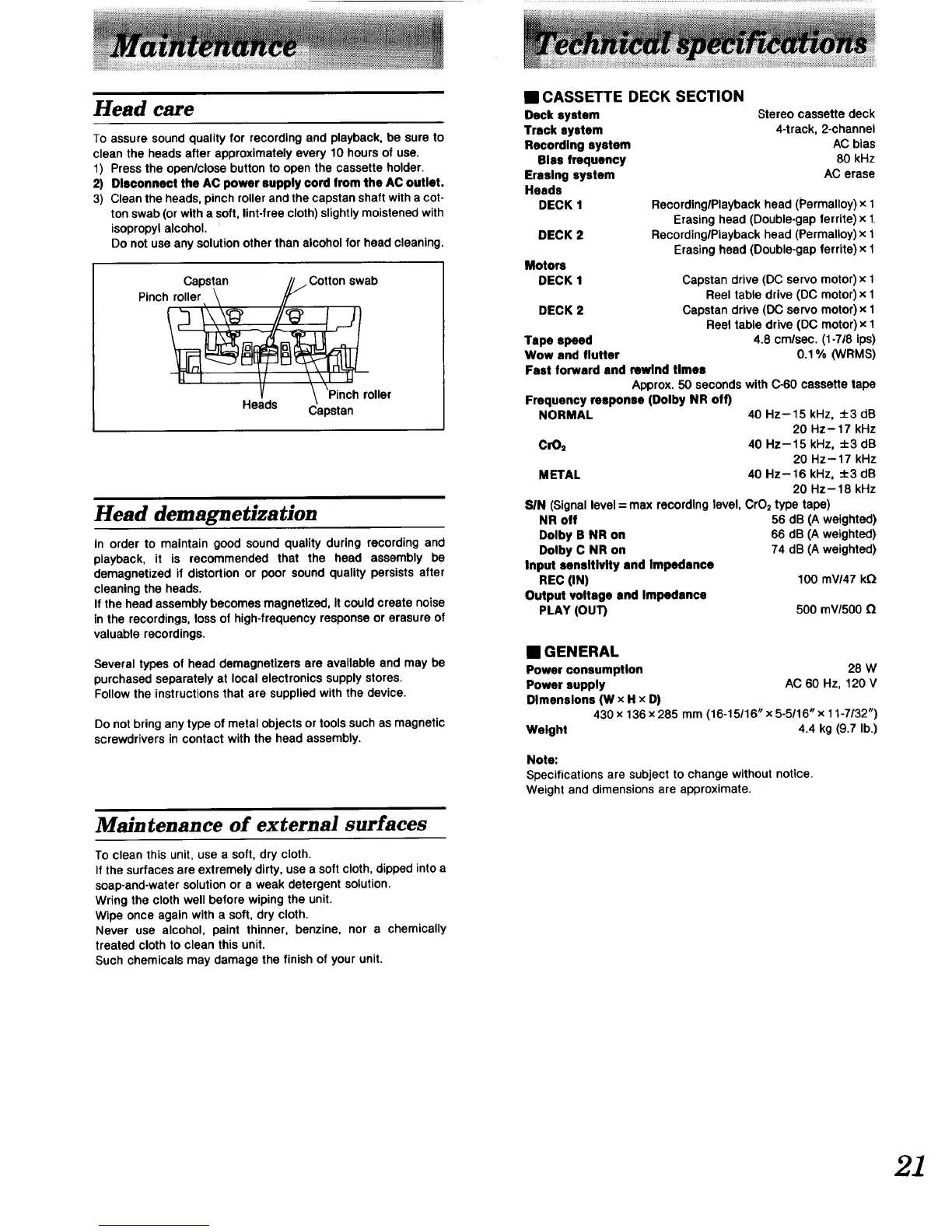

Head care
To assure sound quality for recording and playback, be sure to
clean the heads after approximately every 10 hours of use.
1) Press the openlclose button to open the cassette holder.
2) Disconnect the AC power supply cord from the AC outlet.
3) Clean the heads, pinch roller and the capstan shaft with a cot-
ton swab (or with a soft, lint-free cloth) slightly moistened with
isopropyl alcohol.
Do not use any solution other than alcohol for head cleaning.
Capstan // _Cotton swab
Pinch roller \ //F
r j/
V \ 'Pinch roller
Heads Ca )stan
Head demagnetization
In order to maintain good sound quality during recording and
playback, it is recommended that the head assembly be
demagnetized if distortion or poor sound quality persists after
cleaning the heads.
If the head assembly becomes magnetized, it could create noise
in the recordings, loss of high-frequency response or erasure of
valuable recordings.
Several types of head demagnetizers are available and may be
purchased separately at local electronics supply stores.
Follow the instructions that are supplied with the device.
Do not bring any type of metal objects or tools such as magnetic
screwdrivers in contact with the head assembly.
Main tenance of external surfaces
To clean this unit, use a soft, dry cloth.
If the surfaces are extremely dirty, use a soft cloth, dipped into a
soap-and-water solution or a weak detergent solution.
Wring the cloth well before wiping the unit.
Wipe once again with a soft, dry cloth.
Never use alcohol, paint thinner, benzine, nor a chemically
treated cloth to clean this unit.
Such chemicals may damage the finish of your unit.
• CASSETTE DECK SECTION
Deck system
Track system
Recording system
Bias frequency
Erasing system
Heads
DECK 1
DECK 2
Motors
DECK 1
DECK 2
Tape speed
Wow and flutter
Stereo cassette deck
4-track, 2-channel
AC bias
80 kHz
AC erase
Recording/Playback head (Permalloy)x 1
Erasing head (Double-gap ferrite) x 1.
Recording/Playback head (Permalloy) x 1
Erasing head (Double-gap ferrite) x 1
Capstan drive (DC servo motor) x 1
Reel table drive (DC motor)x 1
Capstan drive (DC servo motor) x 1
Reel table drive (DC motor)x 1
4.8 cm/sec. (1-718 ips)
0.1% (WRMS)
Fast forward and rewind times
Approx. 50 seconds with C-60 cassette tape
Frequency response (Dolby NR off)
NORMAL
CrO=
METAL
40 Hz-15 kHz, +3 dB
20 Hz- 17 kHz
40 Hz-15 kHz, -*-3 dB
20 Hz- 17 kHz
40 Hz-16 kHz, ±3 dB
20 Hz- 18 kHz
S/N (Signallevel = max recordinglevel, CrO2type tape)
NR off
Dolby B NR on
Dolby C NR on
Input sensitivity and Impedance
REC (IN)
Output voltage and Impedance
PLAY (OUT)
56 dB (A weighted)
66 dB (A weighted)
74 dB (A weighted)
100 mV/47 kQ
500 mV/500 Q
• GENERAL
Power consumption 28 W
Power supply AC 60 Hz, 120 V
Dimensions (W x H x D)
430 x 136 x 285 mm (16-15/16" x 5-5116" x 11-7/32")
Weight 4.4 kg (9.7 lb.)
Note:
Specifications are subject to change without notice.
Weight and dimensions are approximate.
21
