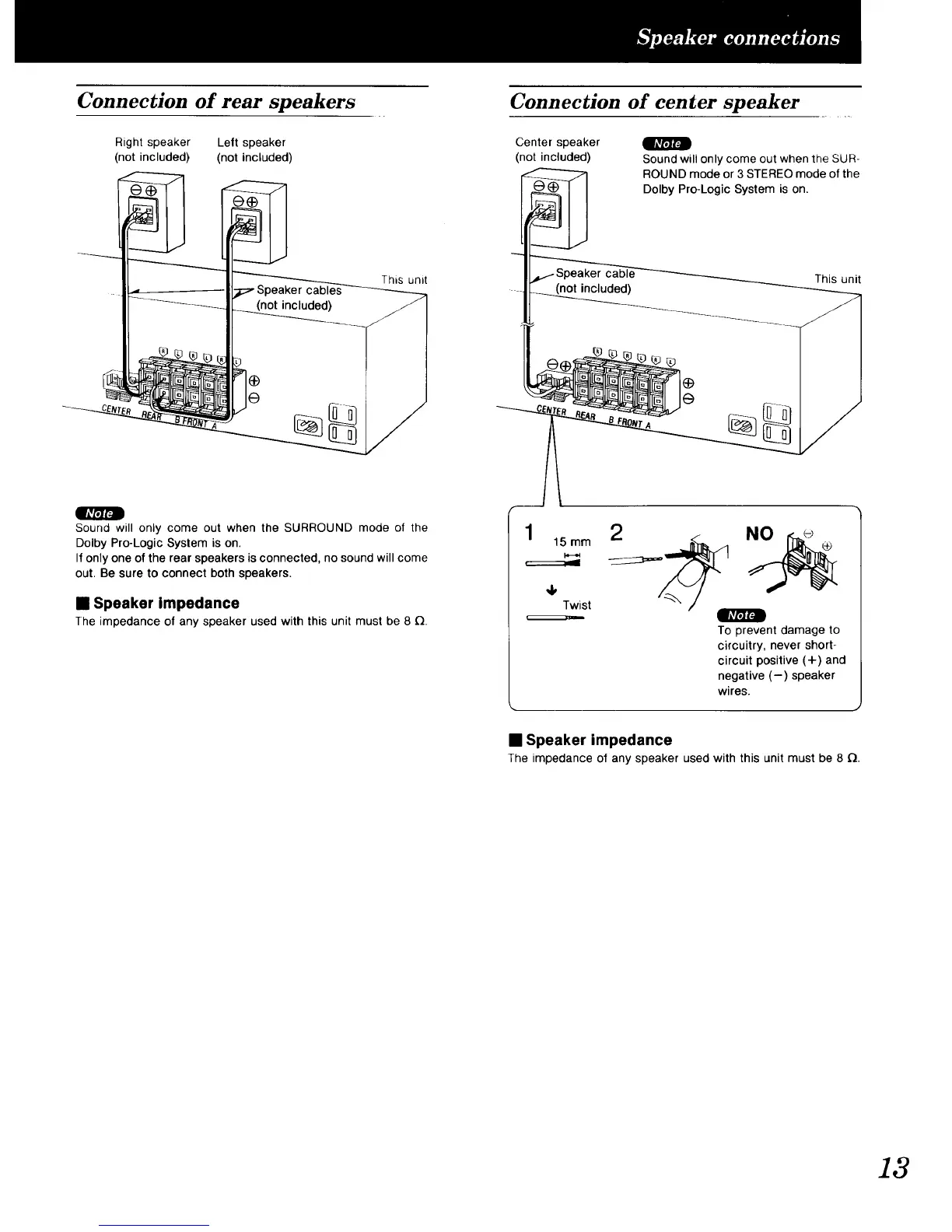

Connection of rear speakers Connection of center speaker
Right speaker Left speaker
(not included) (not included)
This unit
Center speaker
not included)
_cluded)
Sound will only come out when the SUR-
ROUND mode or 3 STEREO mode of the
Dolby Pro-Logic System is on.
This unit
Sound will only come out when the SURROUND mode of the
Dolby Pro-Logic System is on.
If only one of the rear speakers is connected, no sound will come
out. Be sure to connect both speakers.
i Speakerimpedance
The impedance of any speaker used with this unit must be 8 _.
_1, Twist
NO
To prevent damage to
circuitry, never short-
circuit positive (+) and
negative (-) speaker
wires.
• Speaker impedance
The impedance of any speaker used with this unit must be 8 £}.
