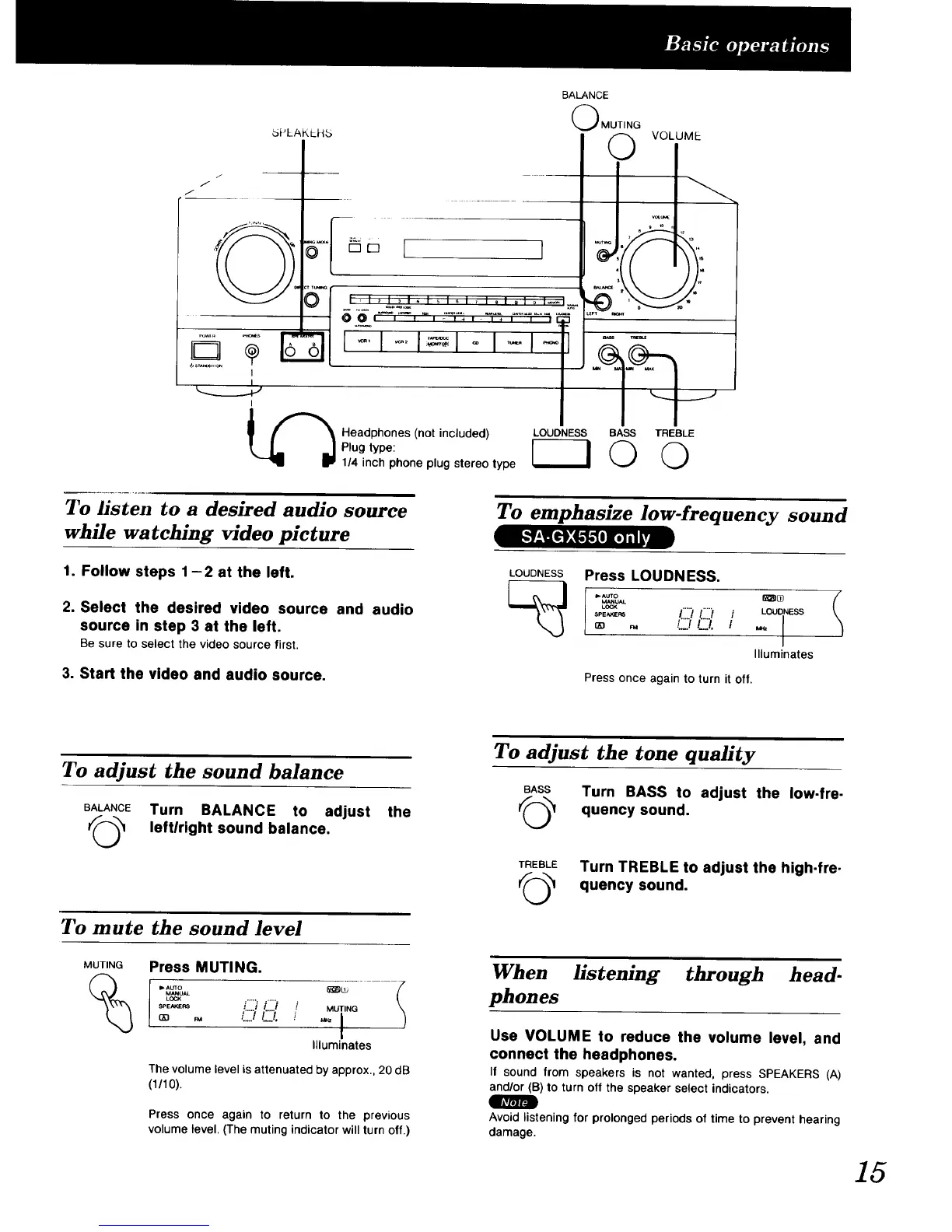

Page #15 background imageLoading...
Page #15 background image
f
/
_PLAKLHS
'L'_....
O
:T_u.K
0
I
BALANCE
OMUTING
©
I
VOLUME
Headphones (not included)
Plug type:
1/4 inch phone plug stereo type
LOUDNESS BASS TREBLE
F---I © ©
To listen to a desired audio source
while watching video picture
1. Follow steps 1-2 at the left.
2. Select the desired video source and audio
source in step 3 at the left.
Be sure to select the video source first.
3. Start the video and audio source.
To emphasize low-frequency sound
LOUDNESS
Press LOUDNESS.
_,-,,,UTO _liI
MANUAL
LOCK
SPEEAKIERS f";` i'"'_ [ LOUDNESS
,,,, .,'-7!2;'. I "' I
Illuminates
Press once again to turn it off.
To adjust the sound balance
BALANCETurn BALANCE to adjust
leftlright sound balance.
the
To mute the sound level
MUTING
Press MUTING.
P'AUrO
LOCK ..........
SPEAKERS i J [ / :
,-,-, ,,,, ..'.::3C;'.
MUTING
"!
Illuminates
The volume level is attenuated by approx., 20 dB
(1/10).
IIla,a_l
Press once again to return to the previous
volume level. (The muting indicator will turn off.)
To adjust the tone quality
BASS Turn BASS to adjust the Iow-fre-
_ quency sound.
TREBLE Turn TREBLE to adjust the high.fre.
quency sound.
When listening through head-
phones
Use VOLUME to reduce the volume level, and
connect the headphones.
If sound from speakers is not wanted, press SPEAKERS (A)
and/or (B) to turn off the speaker select indicators,
Avoid listening for prolonged periods of time to prevent hearing
damage.
15
