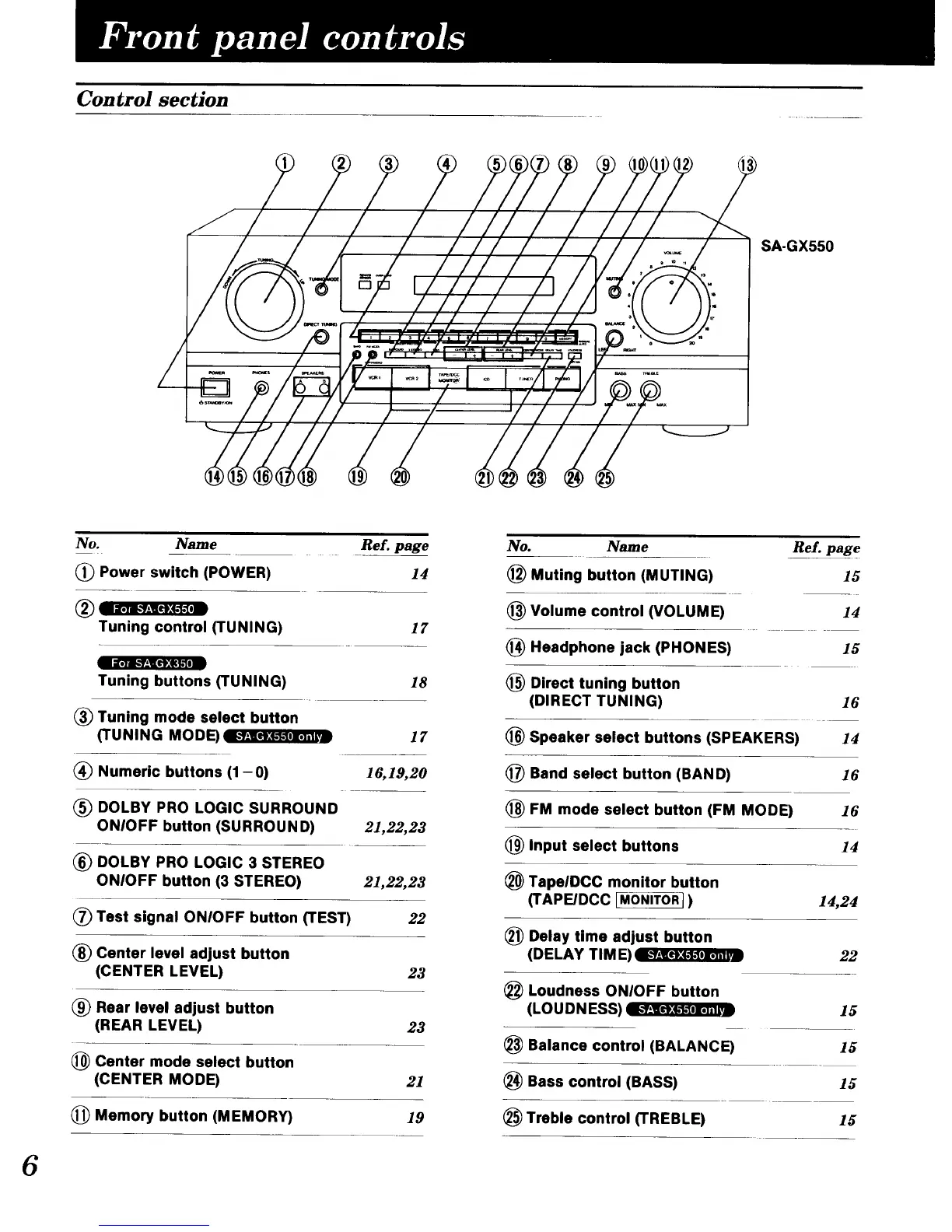

Control section
SA-GX550
No. Name
Power switch (POWER)
Tuning control (TUNING)
Re[. page
14
17
Tuning buttons (TUNING) 18
Tuning mode select button
(TUNING MODE) _ 17
_) Numeric buttons (1-0) 16,19,20
(_ DOLBY PRO LOGIC SURROUND
ONIOFF button (SURROUND) 21,22,23
(_) DOLBY PRO LOGIC 3 STEREO
ONIOFF button (3 STEREO) 21,22,23
Q_)Test signal ONIOFF button (TEST) 22
(_) Center level adjust button
(CENTER LEVEL) 23
(_) Rear level adjust button
(REAR LEVEL) 23
(_) Center mode select button
(CENTER MODE) 21
(_) Memory button (MEMORY) 19
No. Name Re[. page
(_) Muting button (MUTING) 15
(_) Volume control (VOLUME) 14
(_) Headphone jack (PHONES) 15
(_) Direct tuning button
(DIRECT TUNING) 16
(_) Speaker select buttons (SPEAKERS) 14
(_ Band select button (BAND) 16
(_) FM mode select button (FM MODE) 16
(_) Input select buttons 14
_) TapelDCC monitor button
(TAPE/DCC [MONITOR] ) 14,24
(_) Delay time adjust button
(DELAY TIME) _ 22
(_) Loudness ONIOFF button
(LOUDNESS) _ 15
(_ Balance control (BALANCE) 15
(_ Bass control (BASS) 15
(_) Treble control (TREBLE) 15
