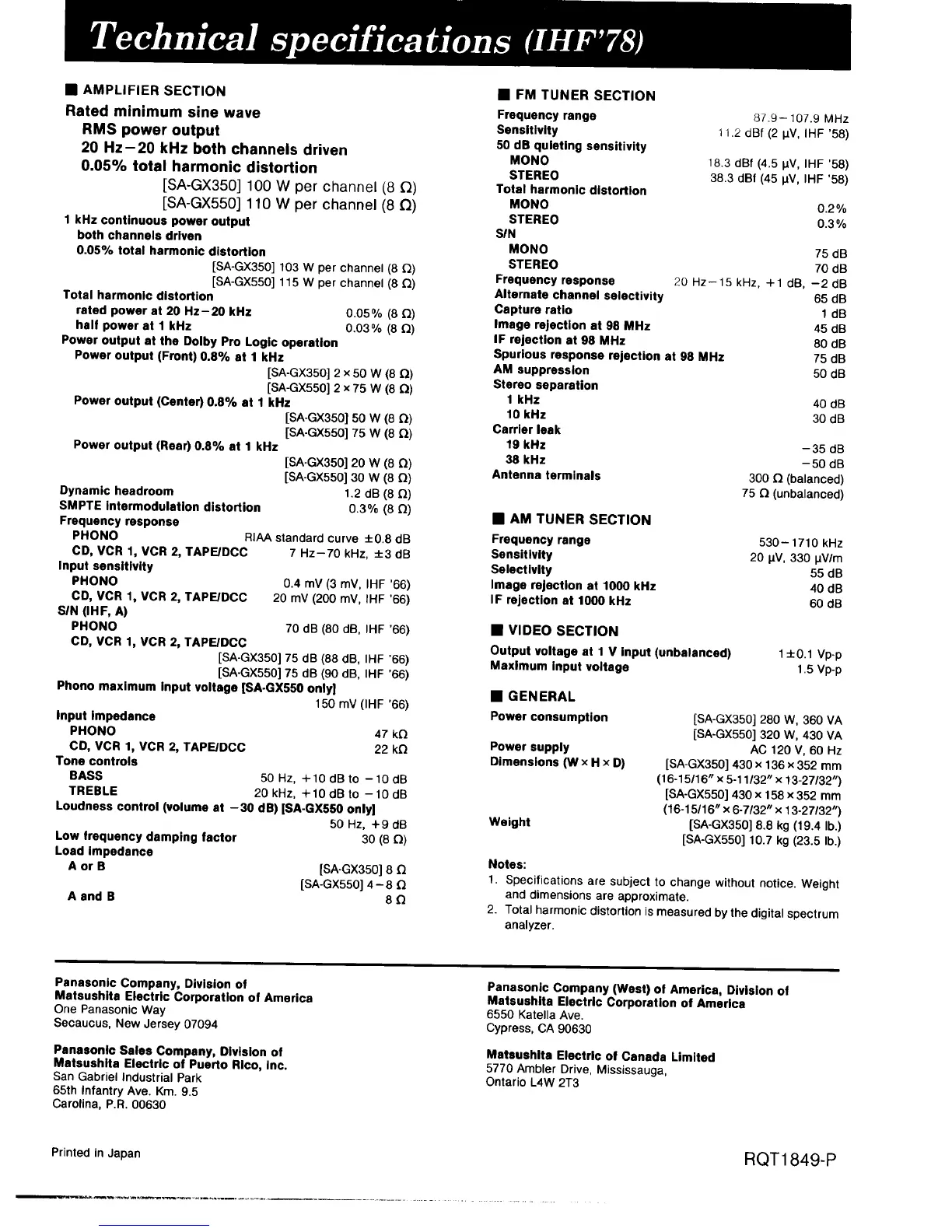

Technics SA-GX550 Operating Instructions

• AMPLIFIER SECTION
Rated minimum sine wave
RMS power output
20 Hz-20 kHz both channels driven
0.05% total harmonic distortion
[SA-GX350] 100 W per channel (8 _.)
[SA-GX550] 1 10 W per channel (8 _)
1 kHz continuous power output
both channels driven
0.05% total harmonic distortion
[SA-GX350]103 W per channel (8 Q)
[SA-GX550]115 W per channel (8 Q)
Total harmonic distortion
rated power at 20 Hz-20 kHz 0.05% (8 Q)
half power at 1 kHz 0,03% (8 Q)
Power output at the Dolby Pro Logic operation
Power output (Front) 0.8% at 1 kHz
[SA-GX350]2 x 50 W (8 Q)
[SA-GX550]2 x 75 W (8 Q)
Power output (Center) 0.8% at 1 kHz
[SA-GX350]50 W (8 £2)
[SA-GX550]75 W (8 Q)
Power output (Rear) 0.8% at 1 kHz
Dynamic headroom
SMPTE intermodulatlon distortion
Frequency response
[SA-GX350] 20 W (8 Q)
[SA-GX550] 30 W (8 Q)
1.2 dB (8 D)
0.3% (8 £2)
PHONO RIAA standard curve +0.8 dB
CD, VCR 1, VCR 2, TAPE/DCC 7 Hz-70 kHz, +3 dB
Input sensitivity
PHONO 0.4 mV (3 mV, IHF '66)
CD, VCR 1, VCR 2, TAPE/DCC 20 mV (200 mV, IHF '66)
SIN (IHF, A)
PHONO 70 dB (80 dB, IHF '66)
CD, VCR 1, VCR 2, TAPE/DCC
[SA-GX350] 75 dB (88 dB, IHF '66)
[SA-GX550] 75 dB (90 dB, IHF '66)
Phono maximum Input voltage [SA-GX550 only]
150 mV (IHF '66)
input Impedance
PHONO 47 k_
CD, VCR 1, VCR 2, TAPF-./DCC 22 kD
Tone controls
BASS 50 Hz, +10 dB to - 10 dB
TREBLE 20 kHz, +10 dB to -10 dB
Loudness control (volume at -30 dB) |SA-GX550 only]
50 Hz, +9 dB
Low frequency damping factor 30 (8 Q)
Load Impedance
A or B [SA-GX350] 8 Q
[SA-GX550] 4-8
Aand B 82
• FM TUNER SECTION
Frequency range 81.9 - 107.9 MHz
Sensitivity 11.2 dBf (2 pV, iHF '58)
50 dB quieting sensitivity
MONO 18.3 dBf (4.5 _V, IHF '58)
STEREO 38.3 dBf (45 rzV, IHF '58)
Total harmonic distortion
MONO 0.2%
STEREO 0.3 %
SIN
MONO 75 dB
STEREO 70 dB
Frequency response 20 Hz- 15 kHz, + 1 dB, -2 dB
Alternate channel selectivity 65 dB
Capture ratio 1 dB
Image rejection at 98 MHz 45 dB
IF rejection at 98 MHz 80 dB
Spurious response rejection at 98 MHz 75 dB
AM suppression 50 dB
Stereo separation
1 kHz 40 dB
10 kHz 30 dB
Carder leak
19 kHz -35 dB
38 kHz -50 dB
Antenna terminals 300 Q (balanced)
75 Q (unbalanced)
• AM TUNER SECTION
Frequency range 530-1710 kHz
Sensitivity 20 pV, 330 IJV/m
Selectivity 55 dB
Image rejection at 1000 kHz 40 dB
IF rejection at 1000 kHz 60 dB
• VIDEO SECTION
Output voltage at 1 V input (unbalanced)
Maximum input voltage
• GENERAL
Power consumption
Power supply
Dimensions ONx H x D)
Weight
[SA-GX350] 280 W, 360 VA
[SA-GX550] 320 W, 430 VA
AC 120 V, 60 Hz
[SA-GX350] 430 x 136 x 352 mm
(16-15/16" x 5-11/32" x 13-27132")
[SA-GX550] 430 x 158 x 352 mm
(16-15/16" x 6-7/32" x 13-27132")
[SA-GX350] 8.8 kg (19.4 lb.)
[SA-GX550] 10.7 kg (23.5 lb.)
Notes:
1. Specifications are subject to change without notice. Weight
and dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum
analyzer.
