Technidea ZIPLEVEL PRO-2000 User Manual

ZIPLEVEL
®
can be used to record measurement data for creating tables,
proles, sections, contour or 3D maps. Press REC and MARK together for
2 seconds to enter or exit. REC will be ashing on the display while in the
Record Data function. Press REC and ZERO together for 2 seconds to clear
all data. Press HOLD momentarily to record each measurement. Press the
ZERO key for 2 seconds to back step and clear a previous measurement,
then momentarily press and release to clear additional measurements.
With each measurement, the display shows that measurement’s position
within a sequence (PXXX) and the sequence number (fraction digits). Press
MARK 2 seconds to start a new sequence. The display will ash ‘FULL’ with
each measurement when memory is within 20 measurements of being lled.
The number of remaining measurements will show in the fraction digits. A
PC can be connected to the serial port to store, graph or tabulate each
measurement as it is taken for an unlimited number of measurements. The
position display will show (FXXX) after the ZIPLEVEL
®
memory is full.
The REC DATA function can be used while in the CARRY function to record
data with each press of the HOLD key. CARRY data and normal data won’t
mix – storing one will delete all other data.
23 ▪ RECORD DATA RECORD DATA ▪ 24
Press 2 seconds
to clear all data

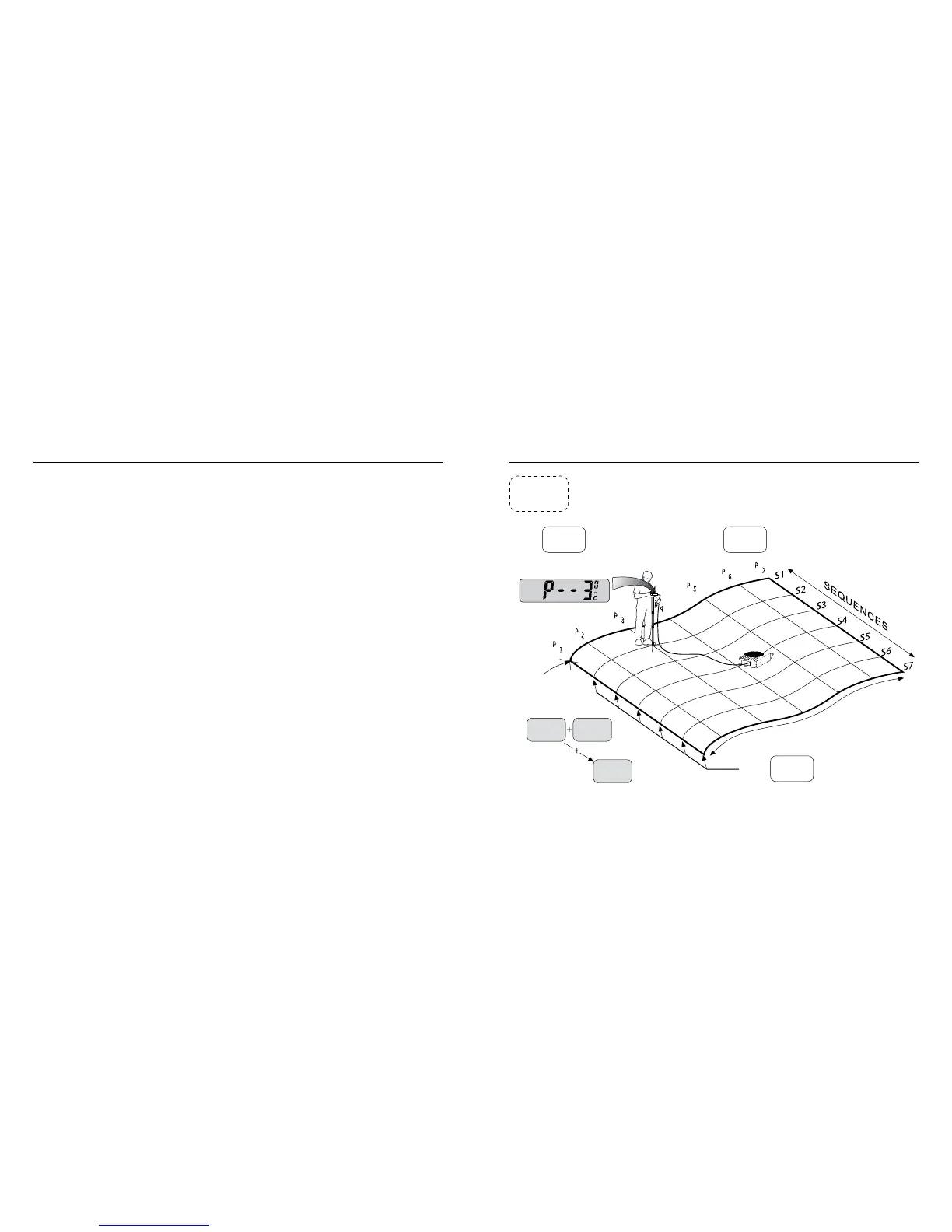

Saves up to 137 measurements, or an unlimited number with a PC.
Take measurements over a grid of regular surface intervals for a contour or 3D map.
One sequence can dene a prole or section.
momentarily to record
HOLD
Press 2 seconds, back space (erase)
ZERO
Press
Sample position display
To
start
2 seconds to start
a new sequence
MARK
Press
P
O
S
I
T
I
O
N
S
Press 2 seconds to enter
REC MARK
ZERO
REC
DATA

Technidea ZIPLEVEL PRO-2000 Specifications

Ranges

set-up vertical range	40’ (12m)
set-up horizontal range	200’ (60m)
carry function range	No limit

Accuracy

reading repeatability	0.1” (2mm) or 0.01” (0.2mm) HP
leveling accuracy	0.1” (2mm) or 0.01” (0.2mm) HP
elevation accuracy	Greater of 0.1” (2mm)/0.01” (0.2mm) HP or 0.2% reading <10’ (3m) & 0.35% reading >10’

Capacity

record capacity	16, 384
record data capacity	137 readings
settings/data retention	Indefinitely, even without battery

Operating Environment

operating temperature range	-22°F to +158°F (-30C to +70C)
storage temperature range	-40°F to +158°F (-40C to +70C)
shock resistance	Measurement Module – 5’ (2m) drop on concrete

Battery

battery type	9V alkaline
battery life	60 hours active use
auto shut-off time	4 minutes inactive
