plate by using the three screws marked “A” on the drawing.

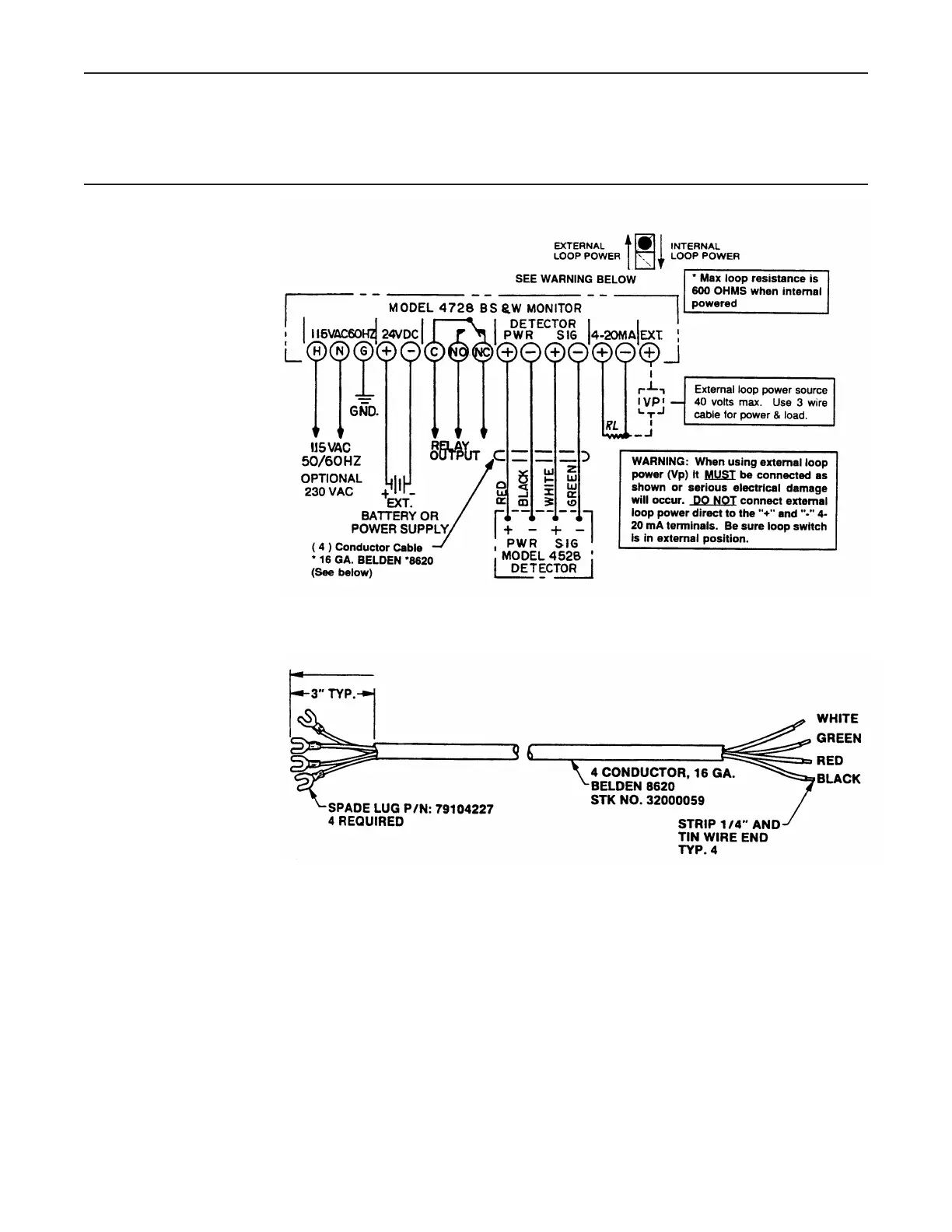

Wiring Diagram
Note: Spade Lugs are not used on CSA Approved Model 4728.
Note: Typical Interconnecting cable between Detector and Readout.
Maximum recommended length is 300 feet.
Installation / Operation Manual
