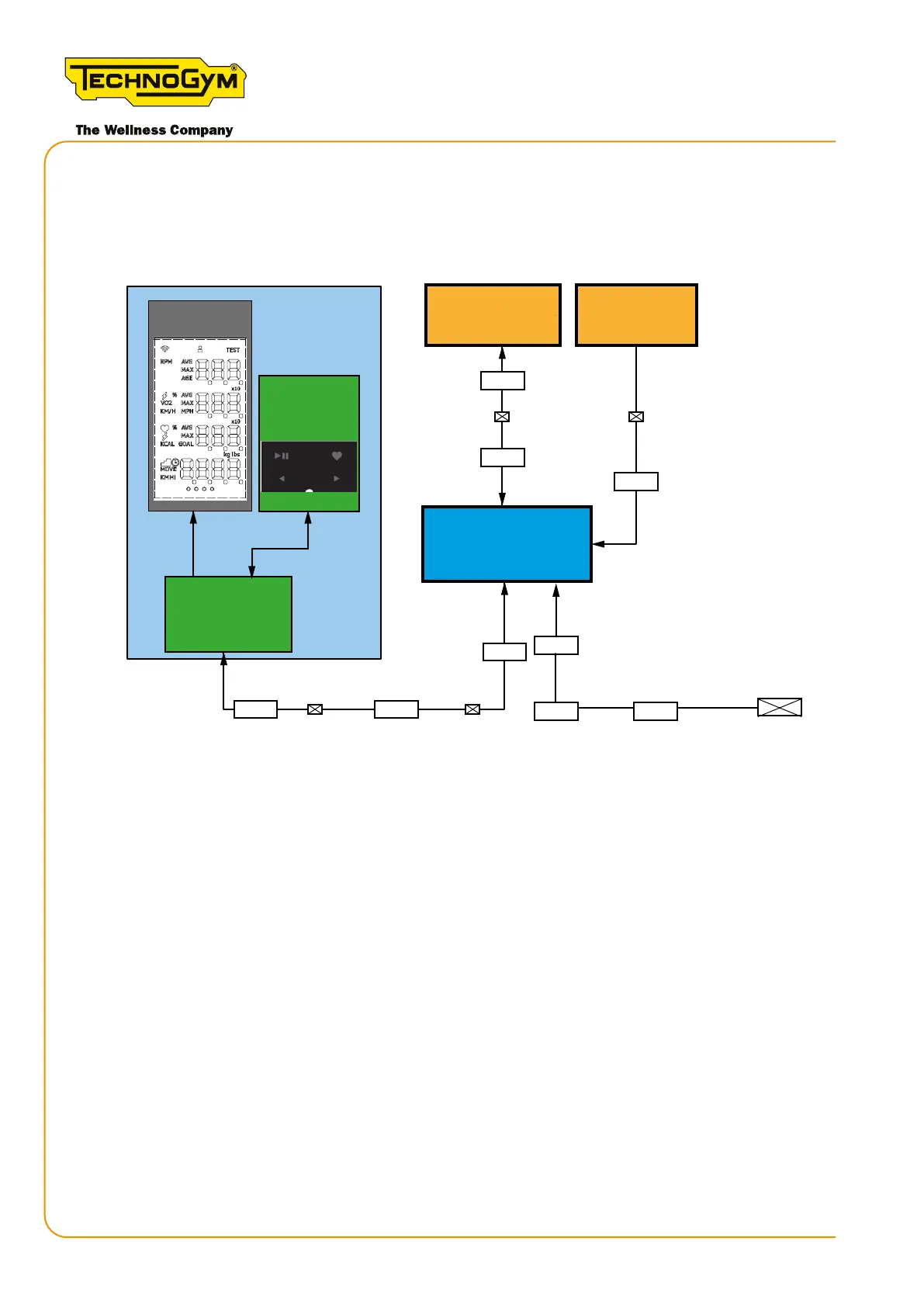

2.8.3 WIRING DIAGRAM - CONSOLE VERSION
LOW KIT
CPU BOARD
POWER SUPPLY
DISPLAY
+5.5V
TX and RX
RPM
+5.5V
TX and RX
RPM
CU0853 CU0883
CU0866
CU0867
CU0863
CU0864
CU0890
CU0889Battery
Patch
connection
Patch
connection
Patch
connection
Patch
connection
Complete
CONSOLE
ANGLE SENSOR
BOARD
RPM SENSOR
TOUCH
KEYPAD
BOARD
Figure 6
2.8.4 WIRING DIAGRAM - GO VERSION
This version is not equipped with electronic components.
