Technogym Skillmill - Display (Console Version); Low Kit

3.1.3 DISPLAY (CONSOLE VERSION)
Compared with the Connect version display, the one on the Console version doesn't have the
following features: Wi-Fi technology; display backlighting; key backlighting; heart buon not
illuminated but drawn.
3.1.4 LOW KIT

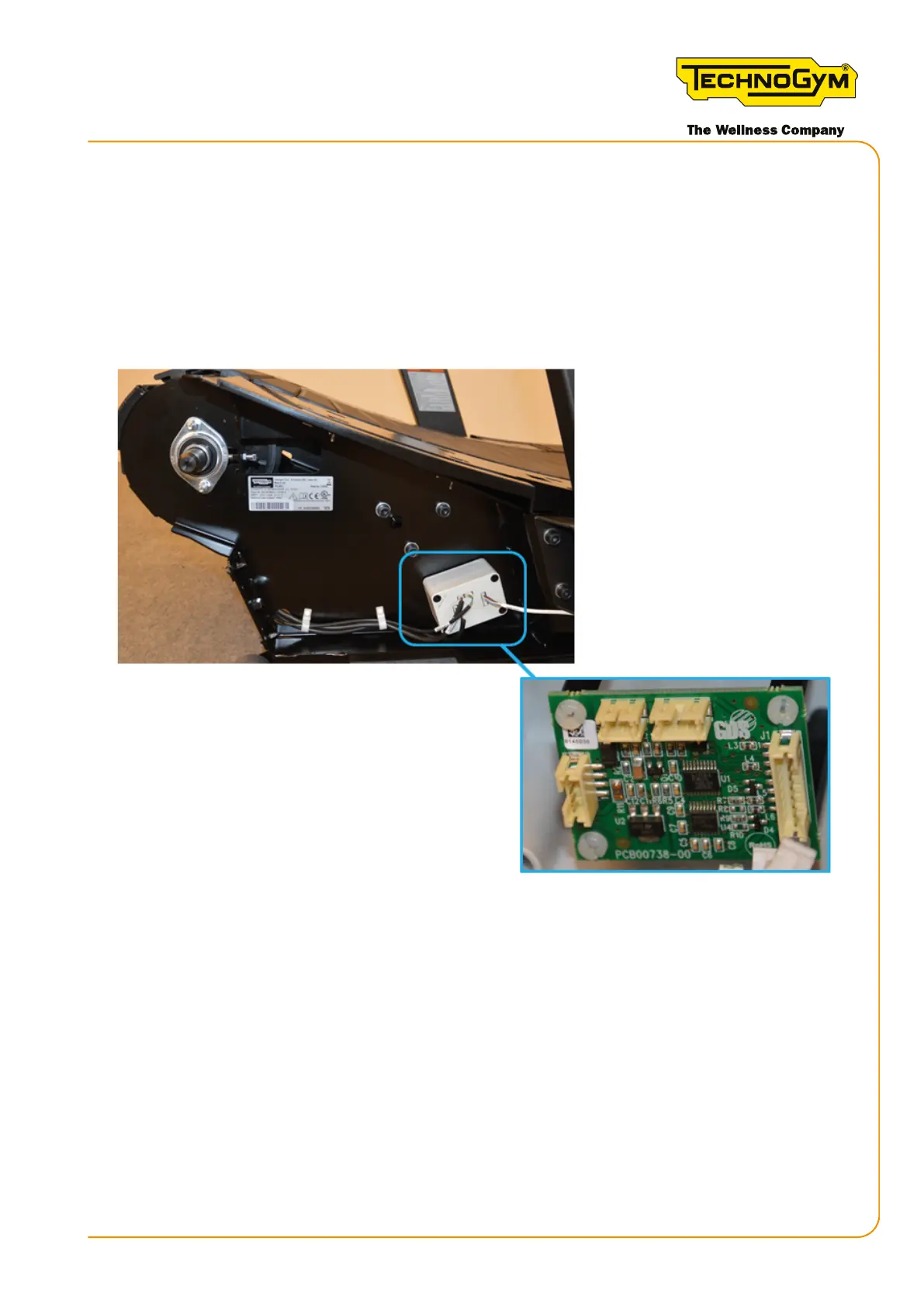

Figure 8 - front left-hand side of the equipment
It receives the RPM signal from the RPM sensor, and the resistance level signal from the angle
sensor. With these two pieces of information, it calculates the power generated by the user during
the exercise and sends this information to the display via a digital signal.
It receives 5V DC from the external power supply and sends this to the display. It generates 3V DC
for internal use and to power the angle sensor.
Its memory includes the brake table calibration database and also the serial number of the equipment
(the laer is sent to the display every time it is turned on).
Skillmill:
Technical Service Guide - Rev. 3.5
Page 29email: support@technogym.com
