3.1.5 RPM SENSOR

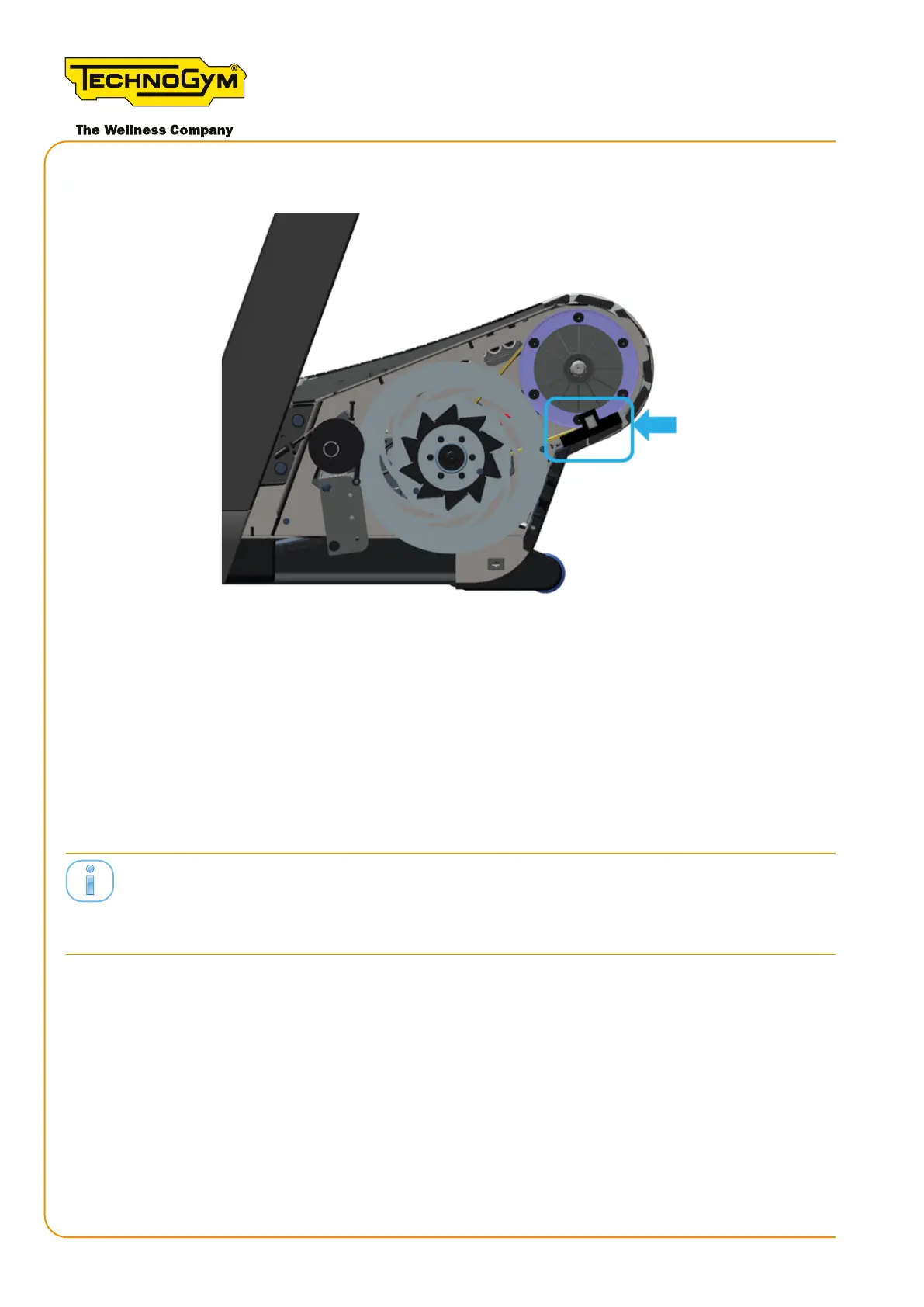

Figure 9 - front right-hand side of the equipment
This is the sensor that sends the horizontal speed of the treadmill to the Low Kit.
3.1.5.1 MECHANICAL REGULATIONS
There are two mechanical regulations, depending on the machine characteristics:
• if the pulley is equipped with standard screws without magnets, the distance between the RPM
sensor and the nearest screw (completing a full turn of the pulley using a feeler gauge) is D=0.8mm
(D=0.0315")
For the Skillmill Console version, starting from SN DJK04D16000241 for the non-UL version and
DJK14D16000003 for the UL version, the equipment has standard screws without magnets, where
the distance between the RPM sensor and the screws is D=0.8mm (D=0.0315”).
Skillmill
Technical Service Guide - Rev. 3.5
Page 30
