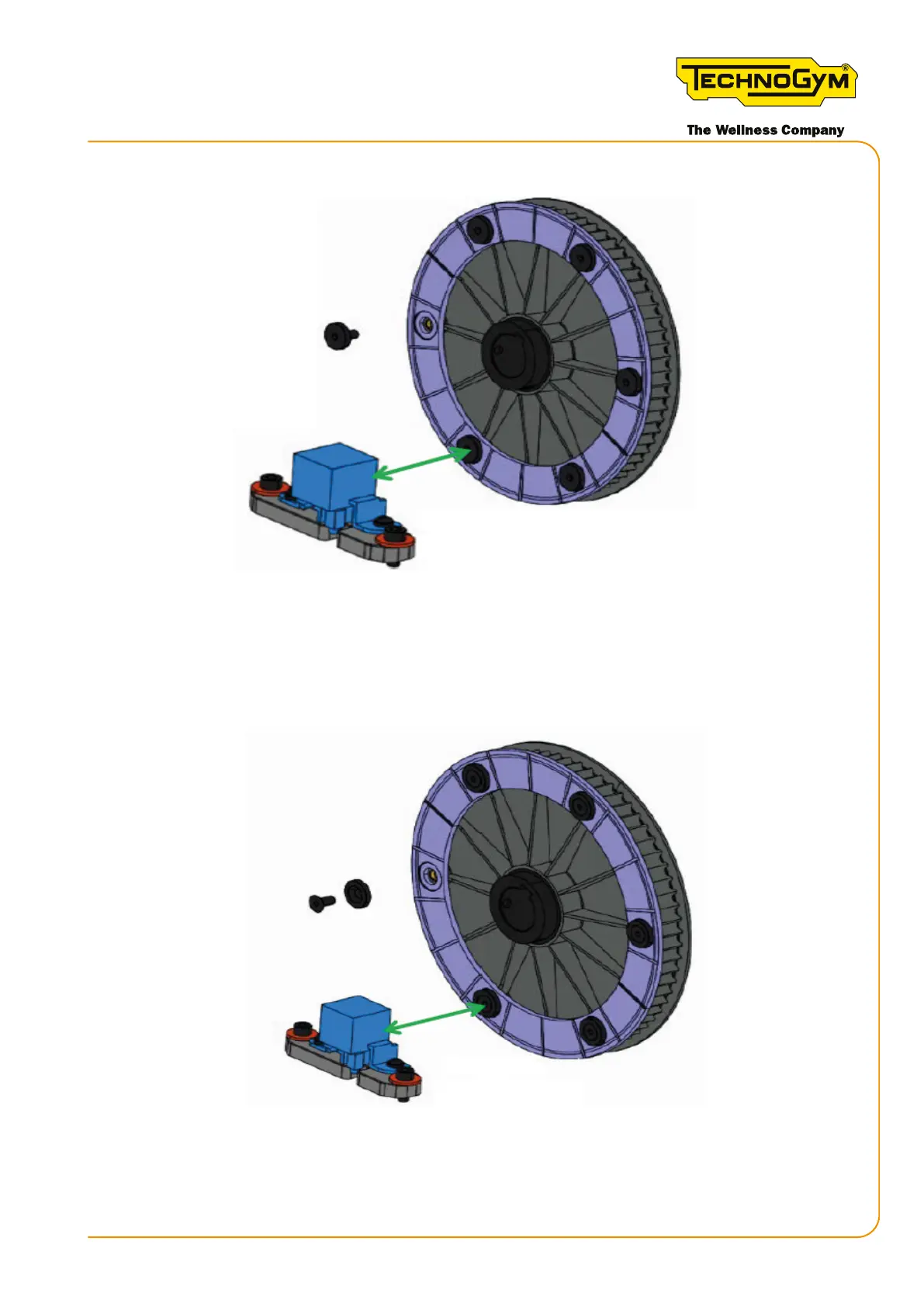

D=0,8mm
D=0.0315”
Figure 10
• if the pulley is equipped with magnets (magnetic washer under the screws), the distance between
the RPM sensor and the nearest magnet (completing a full turn of the pulley using a feeler gauge)
is D=0.8mm (D=0.0315")
D=0,8mm
D=0.0315”
Figure 11
Skillmill:
Technical Service Guide - Rev. 3.5
