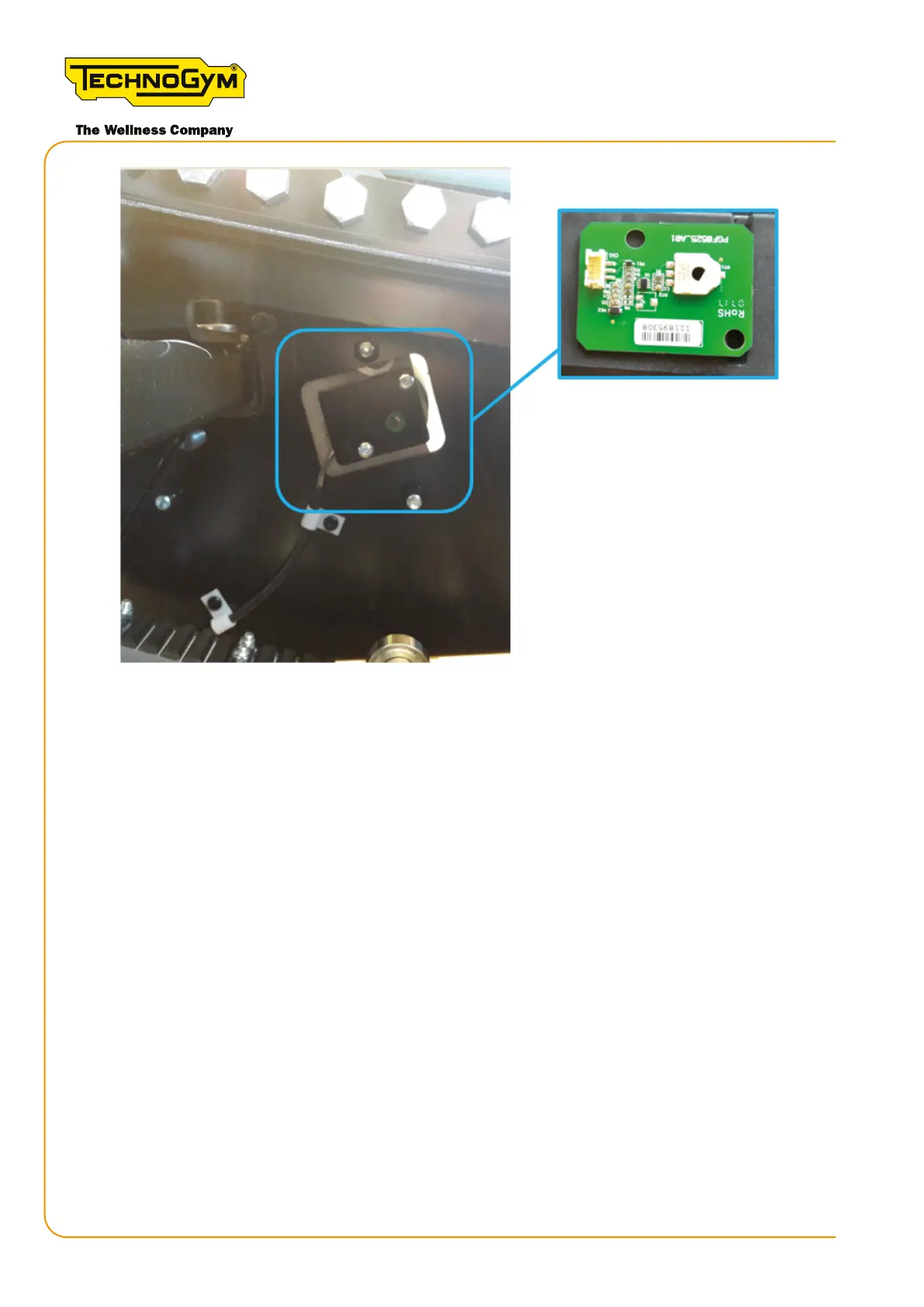

Figure 19 - right side of the internal part of the equipment
The angle sensor is basically a potentiometer installed on the axis of the magnetic brake.
It provides the Low Kit with the position of the brake (from 0 to 10).
It supplies the Low Kit with the angular position of the brake, but it's not possible to measure
the correctness of this signal with a tester to check if the board is working properly. If correctly
congured, the Low Kit knows the relative resistance based on the angular position of the brake,
and it combines this information with the horizontal speed to calculate the power generated by the
user.
It works with a 3V DC power supply received from the Low Kit.
Skillmill
Technical Service Guide - Rev. 3.5
Page 36
