The movement is stopped by a system made up of a free wheel and a friction brake. This unit is
positioned on the opposite side to the brake assembly. It doesn't entirely block the movement of
the belt, but only allows rotation at very low speeds.

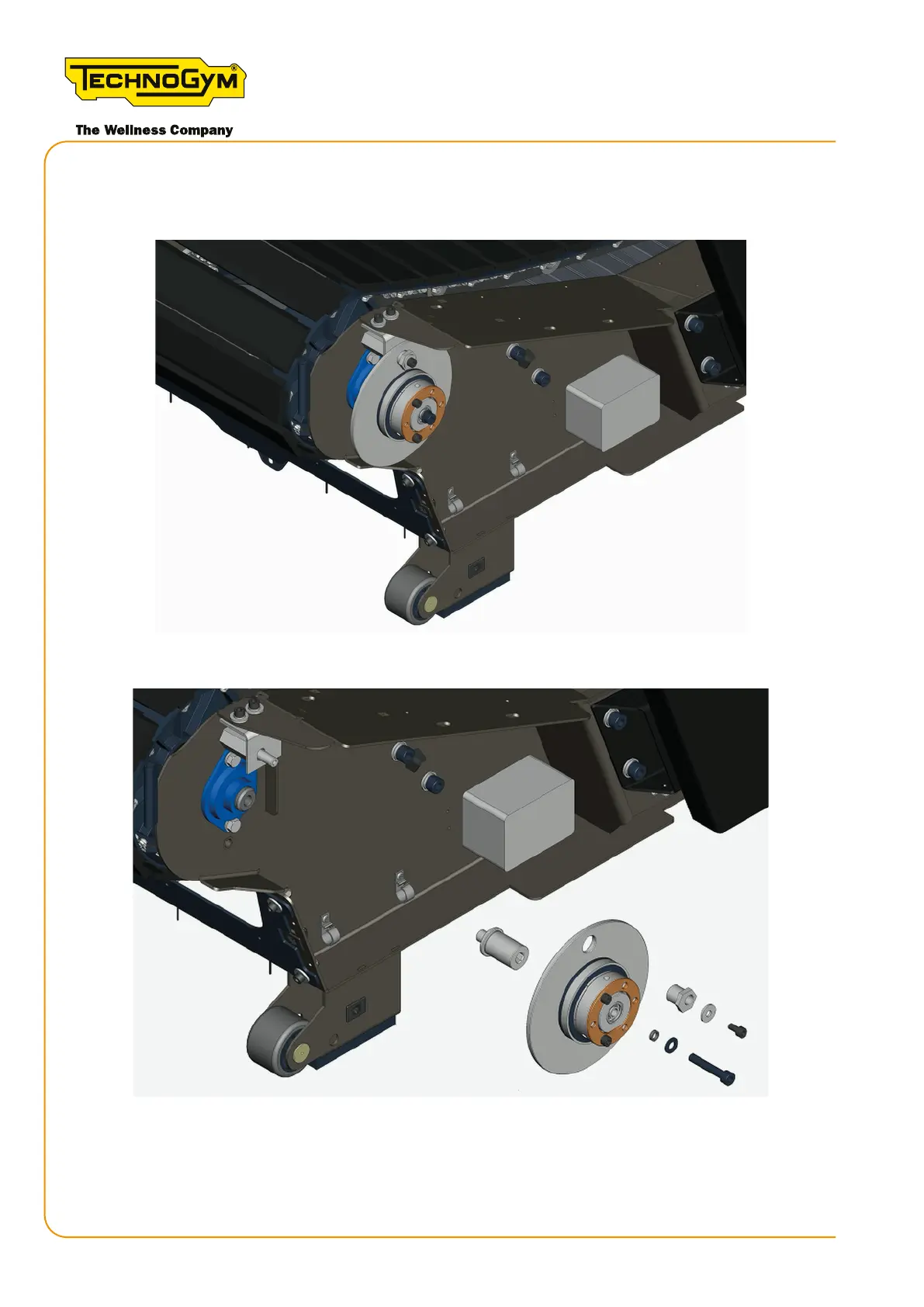

Figure 24 - left-hand side of the equipment
Figure 25
Skillmill
Technical Service Guide - Rev. 3.5
Page 40
