Maintenance: SIM card fitting / replacement

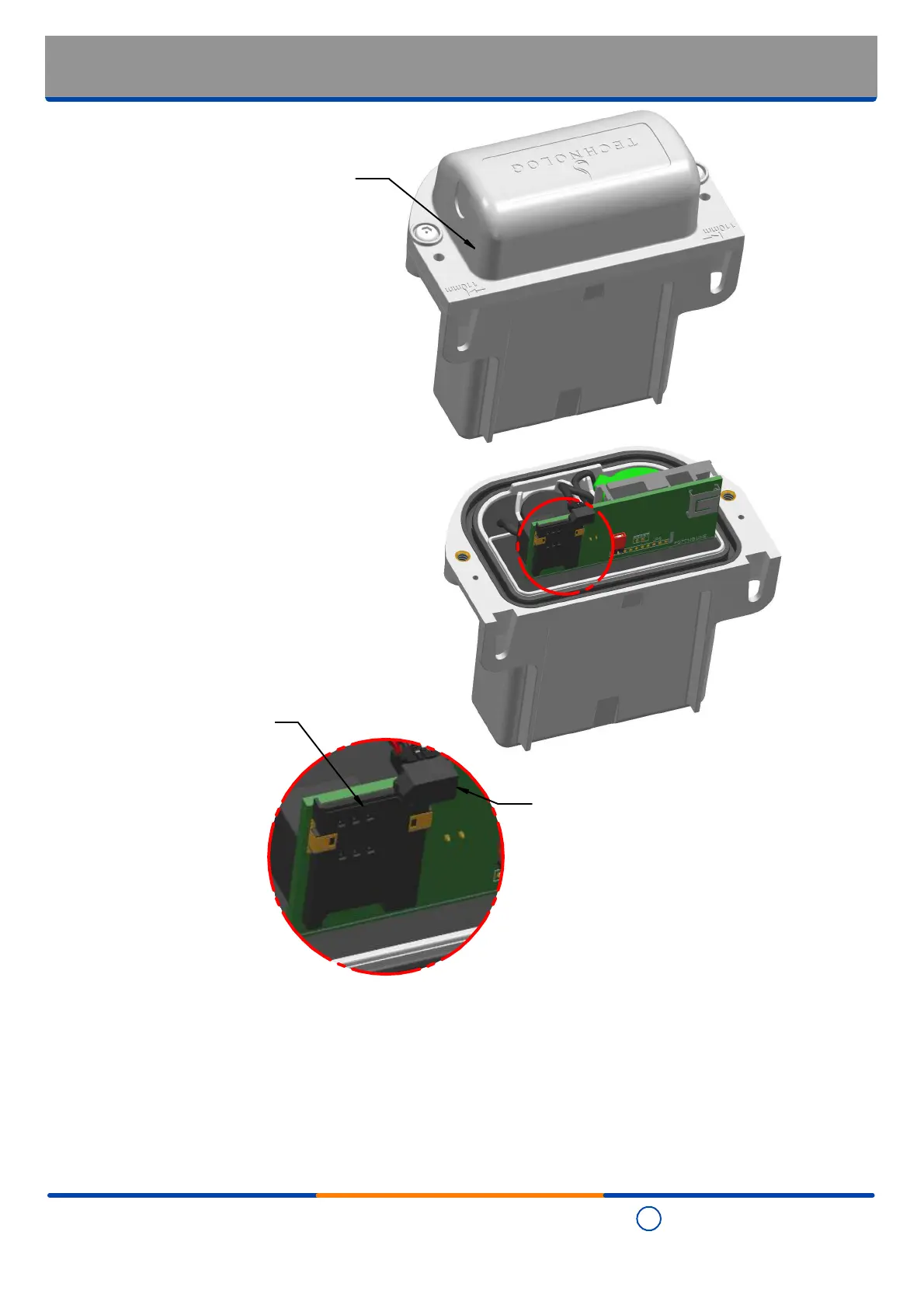

Step 1
Remove the enclosure lid
as indicated in the
'Maintenance: entering the
enclosure" section of this
manual.
A
A
Step 2
Slide the latch on the SIM
card holder to the side
allowing the SIM card to
'pop' up
Step 3
Noting orientation for
replacement / re-fitting,
carefully remove the
SIM card taking care not
to catch the PCB mounted
antenna (where fitted).
Step 4
When re-fiiting the SIM card ensure that it is clean and that there are no finger prints or other marks on its contacts - use
a clean, and dry, lint-free cloth to remove.
Step 5
Noting orientation, and again taking care not to catch the PCB mounted antenna (where fitted), insert the SIM card into
the holder by carefully pushing it down. When fully inserted, the latch automatically closes - be aware that the SIM card
will only fit in the holder one way around and that if incorrectly fitted the latch will not close.
Step 6
Refit the lid as indicated in the "Maintenance: refitting the enclosure lid" section of this manual.
