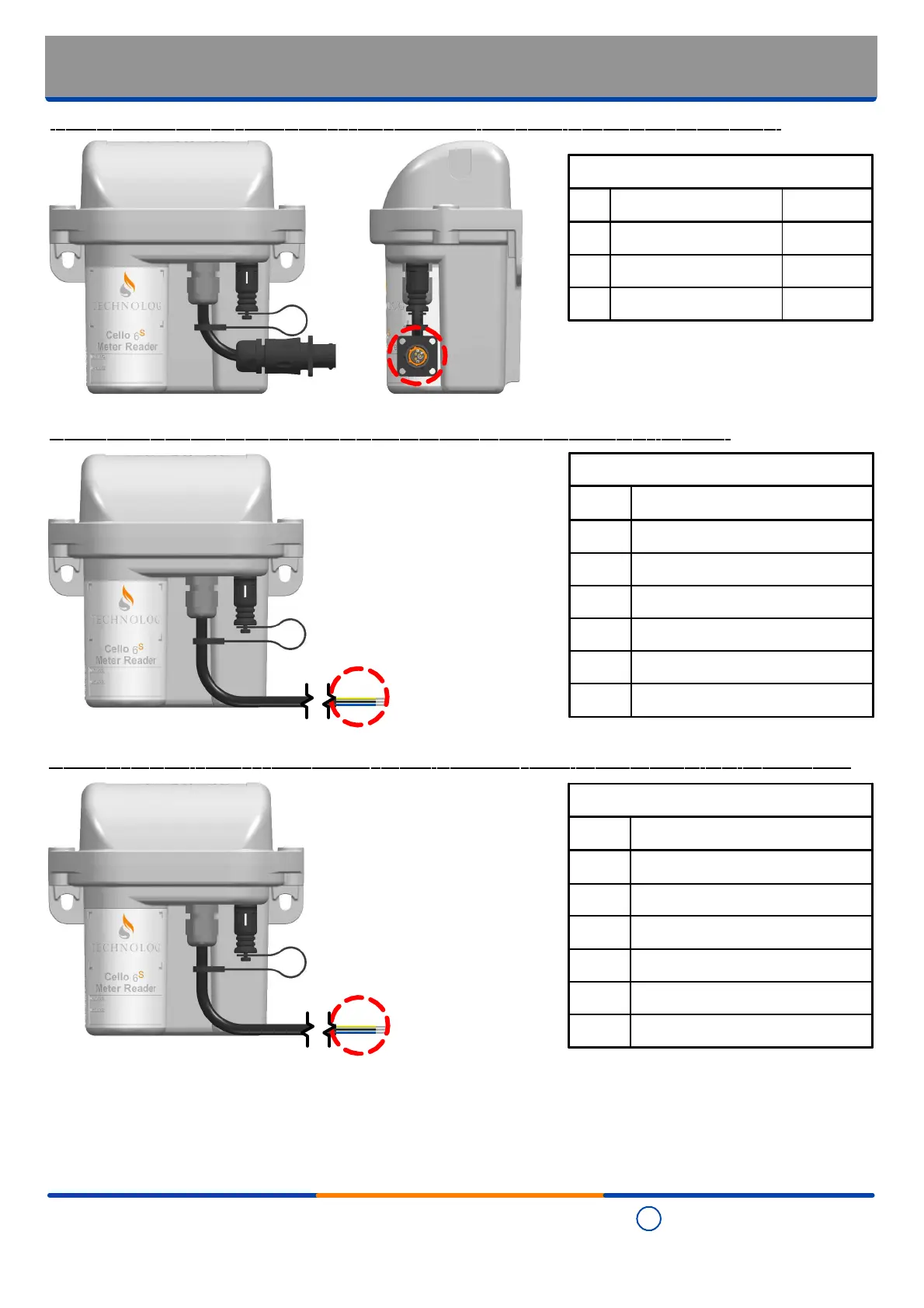

Installation: Standard connections - inputs / output.
"MC03" input connections
Pin Function CBL001-x
A Tamper+ / Channel2+ Black
B Channel1+ White
C GND (0V) Red
Note - as indicated above, a cable from the
Technolog CBL001-x range may be used to
attach to this connector.
"FLxm" input connections
Colour Function
Red Tamper+ / Channel2+
White Tamper- / Channel2-
Blue Channel1+
Green Channel1-
Yellow
No connection
Black
No connection
Regardless of the input connection type, i.e. connector or 'flying lead', the inputs may be connected to other equipment
that provides a volt-free output either in the form of 'switch closure' or 'open collector'. The maximum frequency that may
be applied is 10Hz.
Refer also to the "Considerations: Installation" and "Considerations: Environment" sections of this manual.
Input = Circular 3-way keyed socket compatible with Mil. Spec. standard 26482 ("MC03").
'Flying lead' input cable ("FLxm" where 'xm' denotes cable length (2m as standard))
"FLxm / RSD" input / output connections
Colour Function
Red Tamper+ / Channel2+
White Tamper- / Channel2-
Blue Channel1+
Green Channel1-
Yellow Replicated Channel1+ output
Black Replicated Channel1- output
'Flying lead' input / output cable ("FLxm / RSD" where 'xm' denotes cable length (2m as standard))
Note - the "replicated output" is
a duplication of the input
applied at Channel1 and is in
the form of a volt-free 'open-
collector'. The maximum voltage
that may be attached to this
connection is 24Vdc.
