11
Warning: Do not use the water pipe as the ground wire for anti-lightning protection!

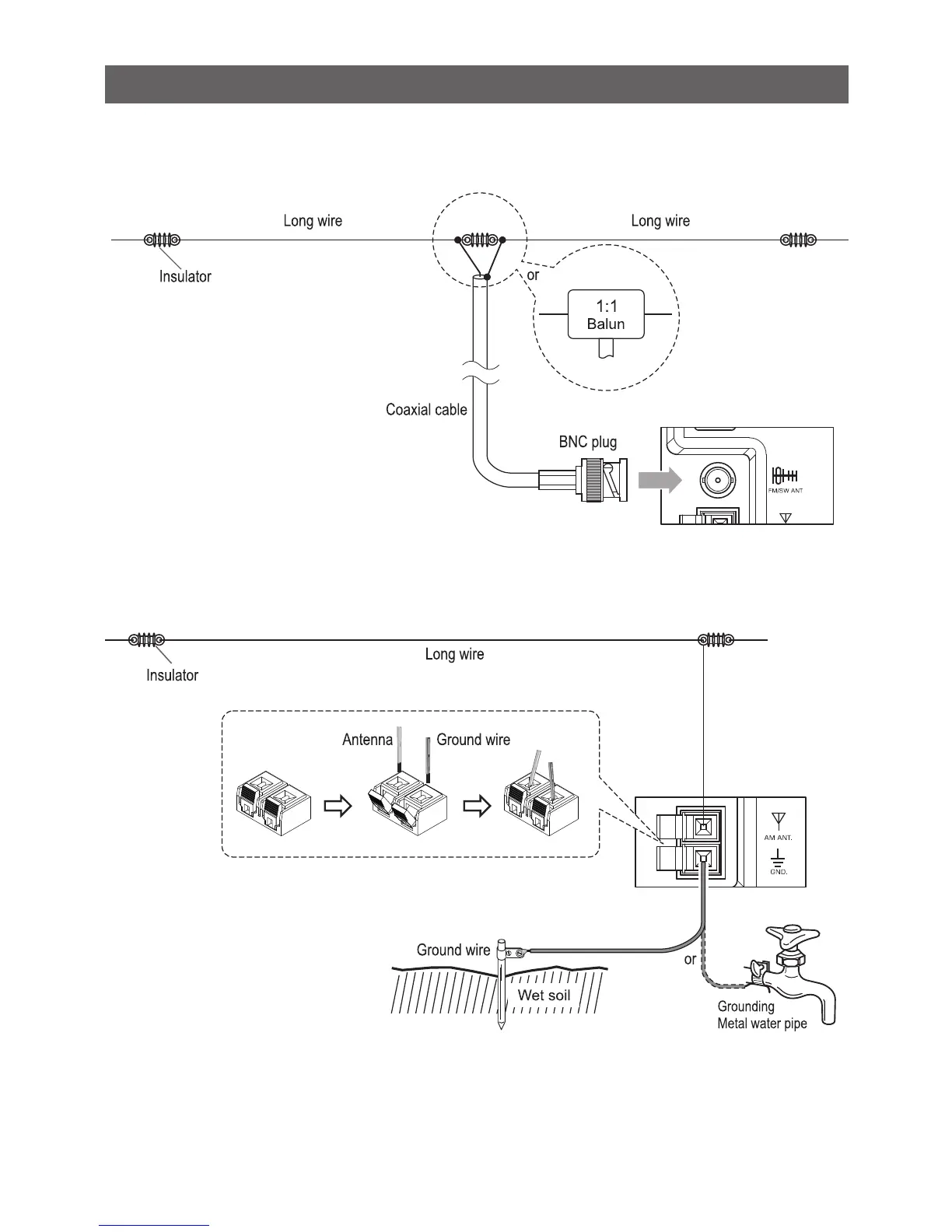

Connecting a low-impedance short wave antenna
Example: symmetrical horizontal antenna:
Connecting a high-impedance short wave antenna
Example: inverted L-shaped antenna
