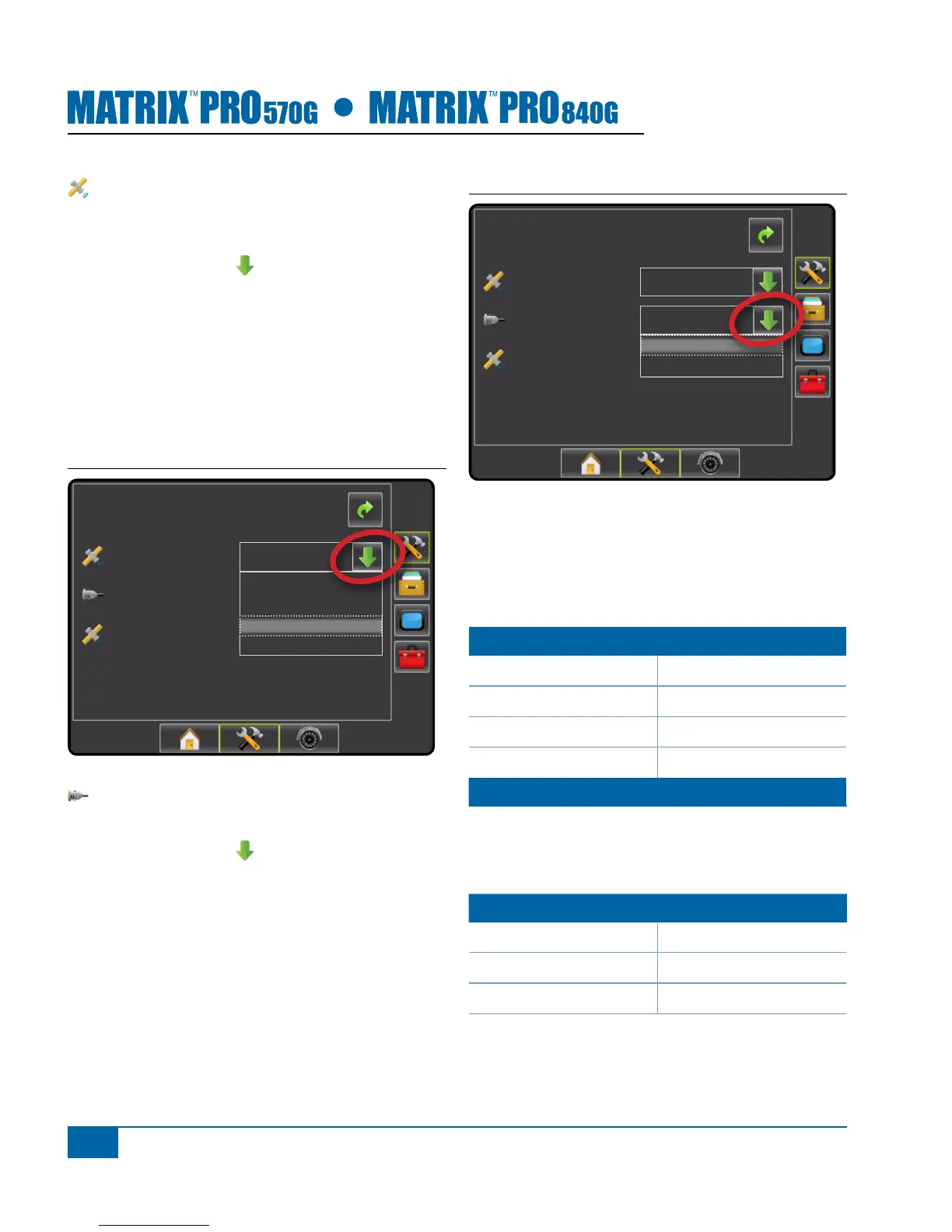

GPS Type
GPS Type customizes the system to accept GPS
source or DGPS source transmissions.
1. Press DOWN arrow to access the list of
options.
2. Select:
►GPS Only – uncorrected signals
►DGPS Only – differentially corrected signals
►GPS/DGPS – either type of signal
►GPS+GLONASS – uncorrected signals from
both the GPS and GLONASS systems
Figure 1-5: GPS Type
Cong->GPS
GPS Status
GPS Port
GPS Type
Information
Internal
GPS/DGPS
GPS Only
DGPS Only
GPS/DGPS
GPS+GLONASS
GPS Port
GPS Port sets port transmission to Internal or External.
1. Press DOWN arrow to access the list of
options.
2. Select:
►Internal – use the internal (D)GPS (if equipped)
and transmit out
►External – receive external (D)GPS data
NOTE: Working with GPS signals such as Omnistar
HP/XP or RTK will require GPS port to be set
to External.
Figure 1-6: GPS Port
Cong->GPS
GPS Status
GPS Port
GPS Type
Information
GPS/DGPS
Internal
Internal
External
External Receiver Minimum Conguration
Requirements
Before the Matrix will connect and work with an
external GPS receiver, these minimum conguration
requirements must be met.
Serial Port Settings
Baud rate: 19,200
Data Bits: 8
Parity: None
Stop Bits: 1
Serial Port connection requirements
Male 9 pin RS-232 serial cable
NOTE: May require Null modem adapter depending
on pin out of receiver.
NMEA Strings
GGA 5 Hz
Optional VTG 5 Hz, 2 Hz, Off
ZDA 0.2 Hz
