Setup Instructions for BoomPilot
®
98-05243 R0
Guidance Width
Guidance Width establishes the width between the
guidelines. Range is 34.0 - 2952.7 inches / 0.9 - 75.0
meters. Default is 60 feet / 18.29 meters.
1. Press the KEYPAD icon .
2. Use the entry screen to establish the guidance
width.
NOTE: This setting is required for auto steering and tilt
sensor operation.

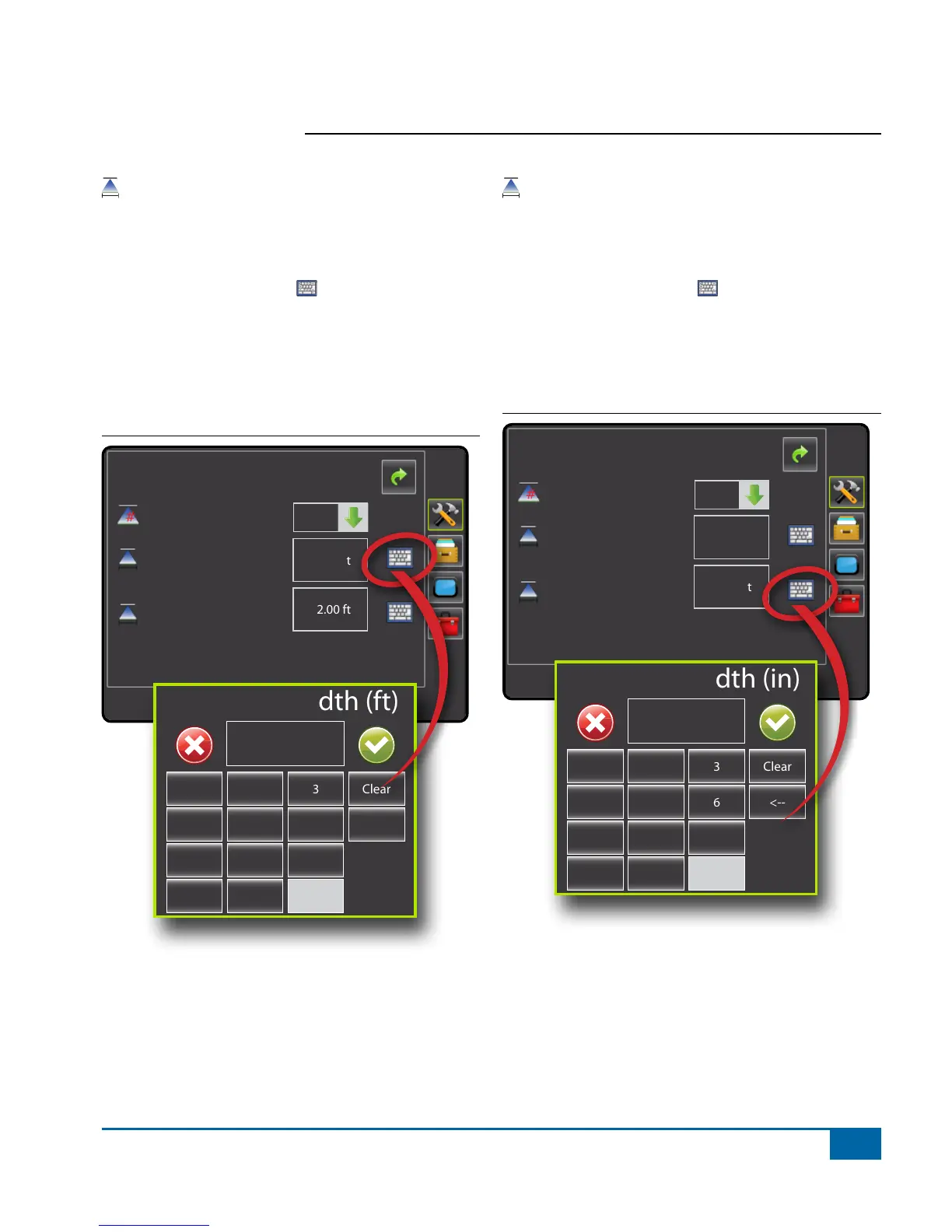

Figure 1-23: Guidance Width
Cong->Implement
Num Sections
Spray Width
Guidance Width
60.00 ft
12.00 ft
1
Guidance Width (ft)
1 2 3
Clear
4 5 6 <--
7 8 9
0 .
+/-
Spray Width
Spray Width establishes the width of the implement.
Range is 34.0 - 2952.7 inches / 0.9 - 75.0 meters.
Default is 144.0 inches (12 feet) / 3.66 meters.
1. Press the KEYPAD icon .
2. Use the entry screen to establish the spray width.
NOTE: This setting is required for auto steering and tilt
sensor operation.
Figure 1-24: Spray Width
Cong->Implement
Num Sections
Spray Width
Guidance Width
60.00 ft
12.00 ft
1
Section 1 Width (in)
1 2 3
Clear
4 5 6 <--
7 8 9
0 .
+/-
