BoomPilot - Single Boom Setup
BoomPilot setup for a single boom is used to establish guidance width and spray width.
Note: If a SmartCable or Section Driver Module (SDM) is present the configurations for Number of Boom
Sections, Overlap, Delay On and Delay Off will be available. Please refer to the BoomPilot - SmartCable
or SDM section to view setup steps.
1. Press CONFIGURATION side tab .
2. Press Implement .
3. Select from:
►Guidance Width – used to enter the width between the guidelines
►Spray Width – used to enter the width of the implement
4. Press RETURN arrow or CONFIGURATION side tab to return to the main Conguration screen.

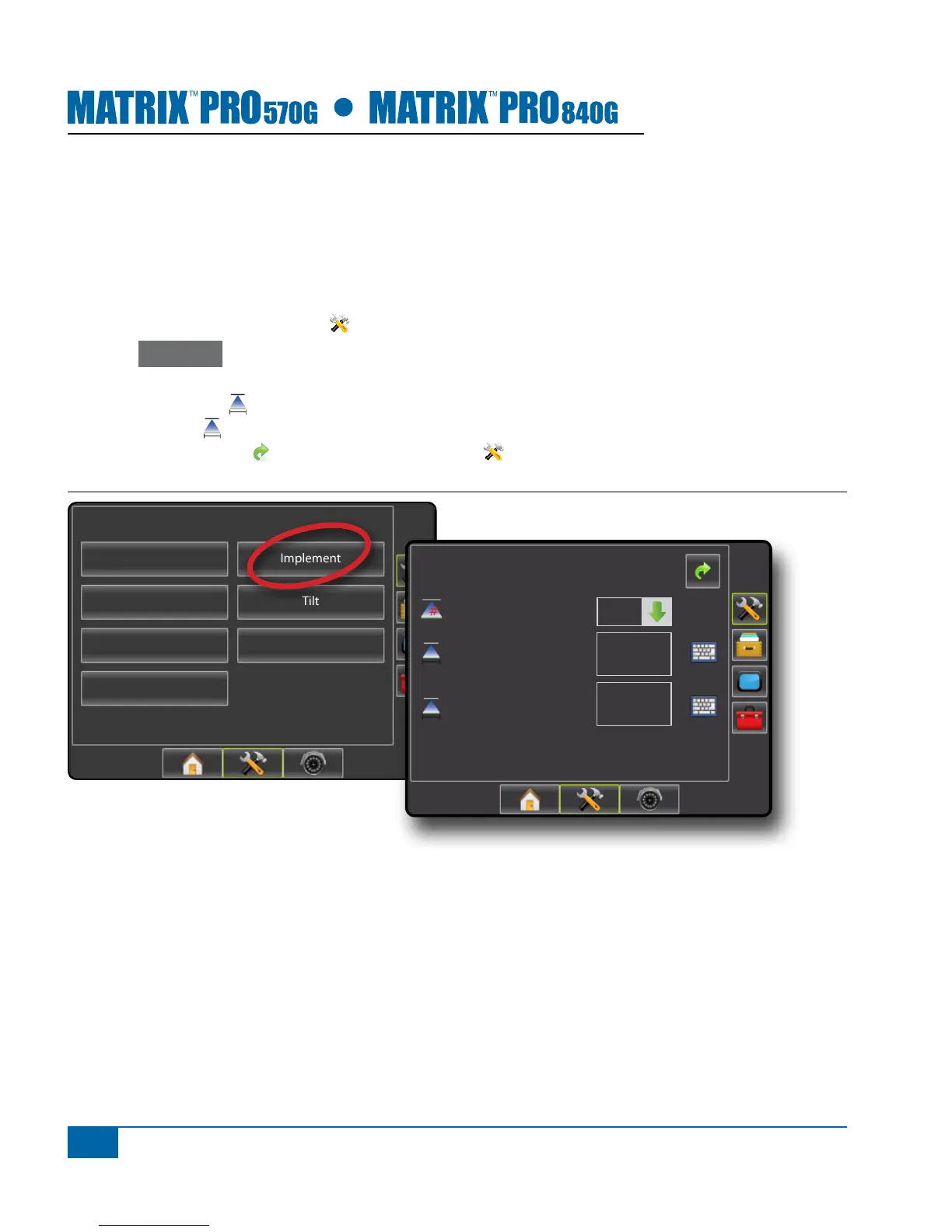

Figure 1-22: Implement Setup Options with No SDM
Conguration
Vehicle
Implement
AutoSteer
Tilt
Lightbar
GPS
Video
Cong->Implement
Num Sections
Spray Width
Guidance Width
60.00 ft
12.00 ft
1
