Setup Instructions for BoomPilot
®
98-05243 R0
Vehicle Type
Vehicle Type selects the type of vehicle steering that
most closely represents your vehicle. Default is Front
Wheel.
1. Press DOWN arrow to access the list of
options.
2. Select:
►Front wheel (also used for combines)
►Articulated
►Tracked

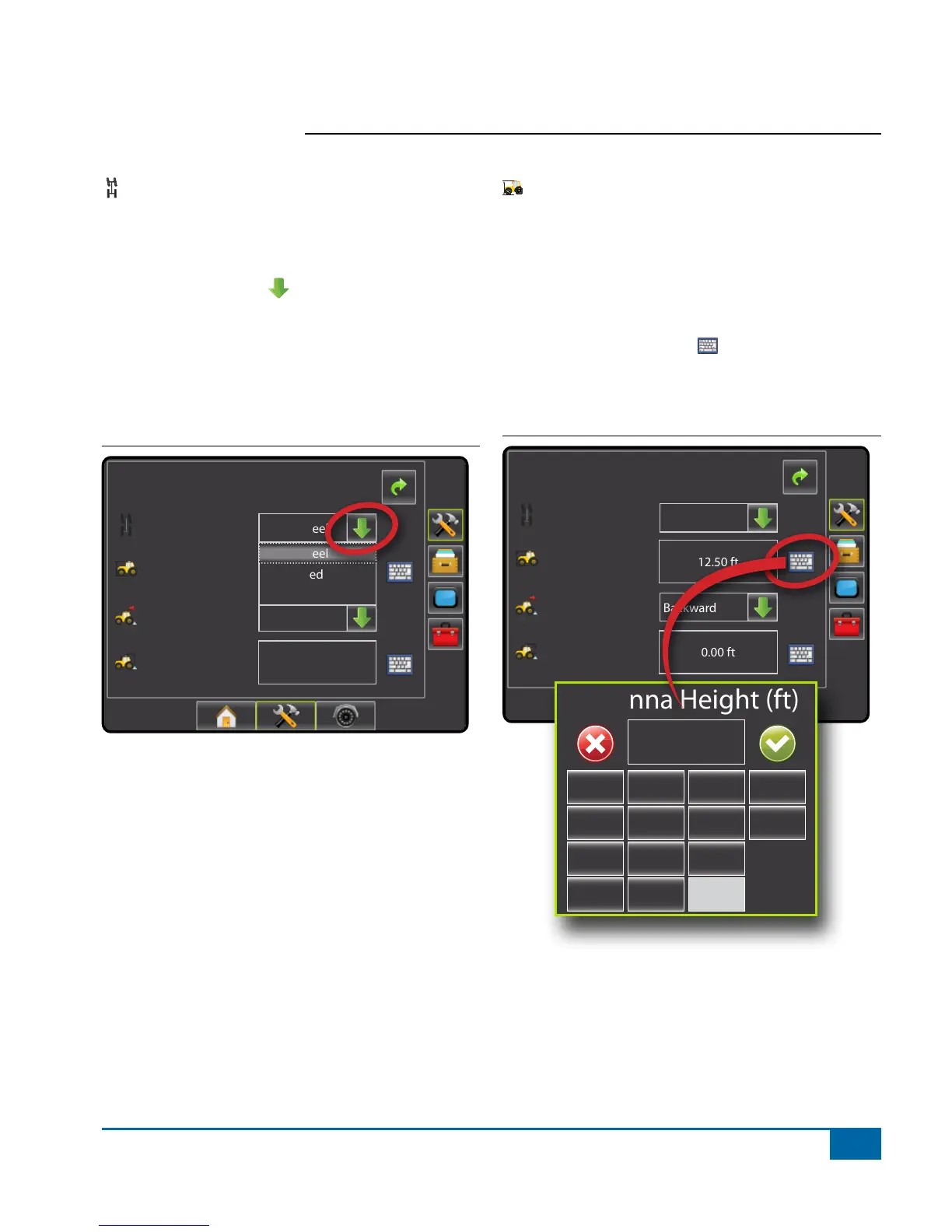

Figure 1-11: Vehicle Type
Cong-> Vehicle
12.50 ft
0.00 ft
Backward
Vehicle Type
Ant Height
Dir to Boom
Dist to Boom
Front Wheel
Front Wheel
Articulated
Tracked
Antenna Height
Antenna Height sets the height of the antenna from the
ground. Range is 0.0 - 32.8 feet / 0.0 - 10.0 meters.
Default is 12.5 feet / 3.81 meters.
NOTE: This setting is required for auto steering and tilt
sensor operation.
1. Press the KEYPAD icon .
2. Use the entry screen to establish the antenna
height.
Figure 1-12: Antenna Height
Cong-> Vehicle
12.50 ft
0.00 ft
Front Wheel
Backward
Vehicle Type
Ant Height
Dir to Boom
Dist to Boom
Antenna Height (ft)
1 2 3
12.50
Clear
4 5 6 <--
7 8 9
0 .
+/-
