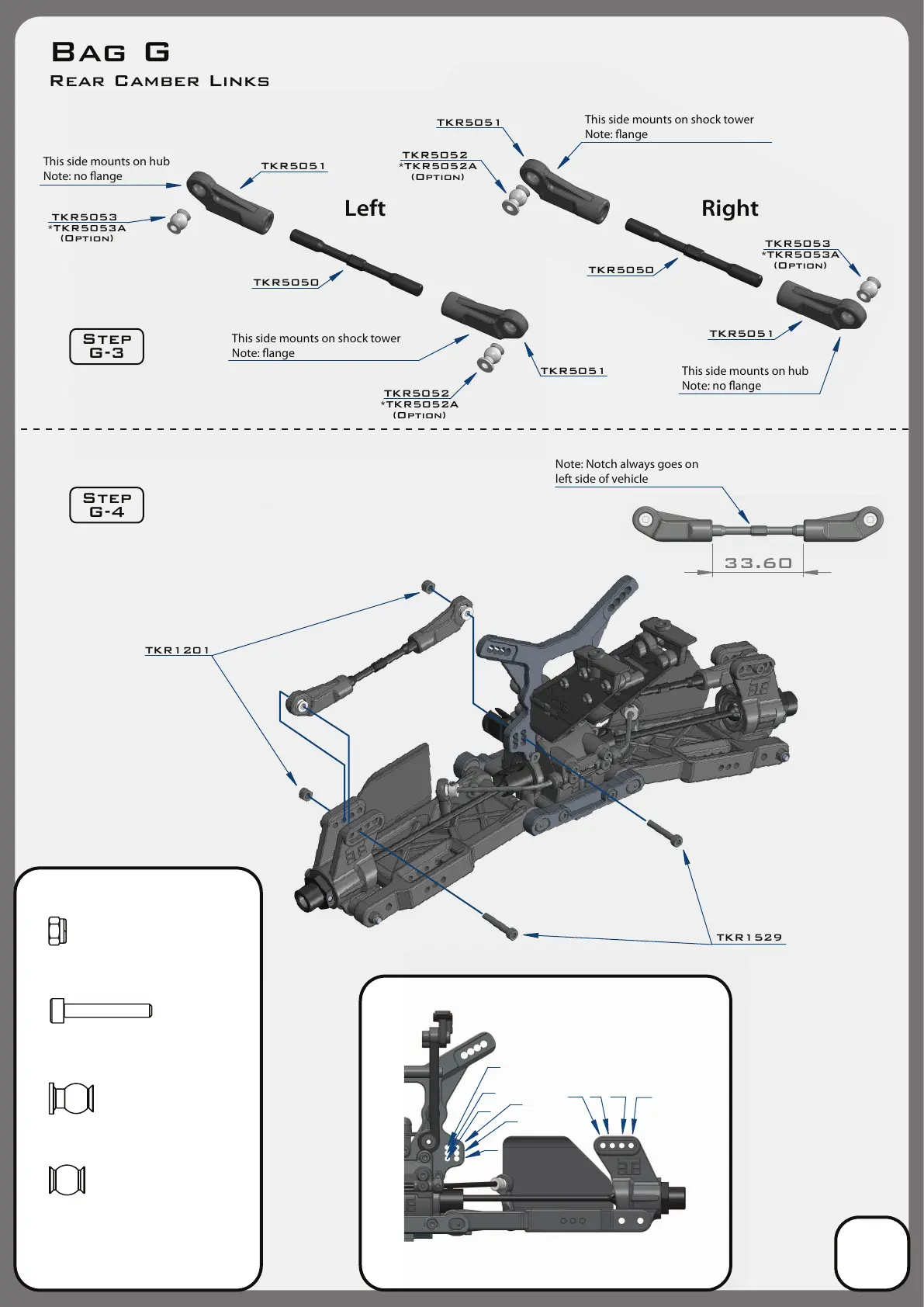

Tekno RC EB48 - P11_EB48 instructions_BagG

TKR5051
TKR5050
TKR5051
TKR5052
This side mounts on hub
Note: no ange
This side mounts on shock tower
Note: ange
TKR5053
33.60
Note: Notch always goes on
left side of vehicle
1
2
3
4
5
6
A B C D
Stock position is 2 / C
TKR1529
TKR1201
Right
TKR5051
This side mounts on hub
Note: no ange
This side mounts on shock tower
Note: ange
TKR5051
Left
TKR5050
TKR1201
M3 Locknut Black
x4
TKR1529
M3x20mm Cap Head Screw
x4
TKR5053
Pivot Ball M3x6.8mm
No Flange
x2
TKR5052
Pivot Ball M3x6.8mm
x2
*TKR5053A
(Option)
TKR5053
*TKR5053A
(Option)
*TKR5052A
(Option)
TKR5052
*TKR5052A
(Option)
Step
G-3
Step
G-4
Bag G
Rear Camber Links
11
