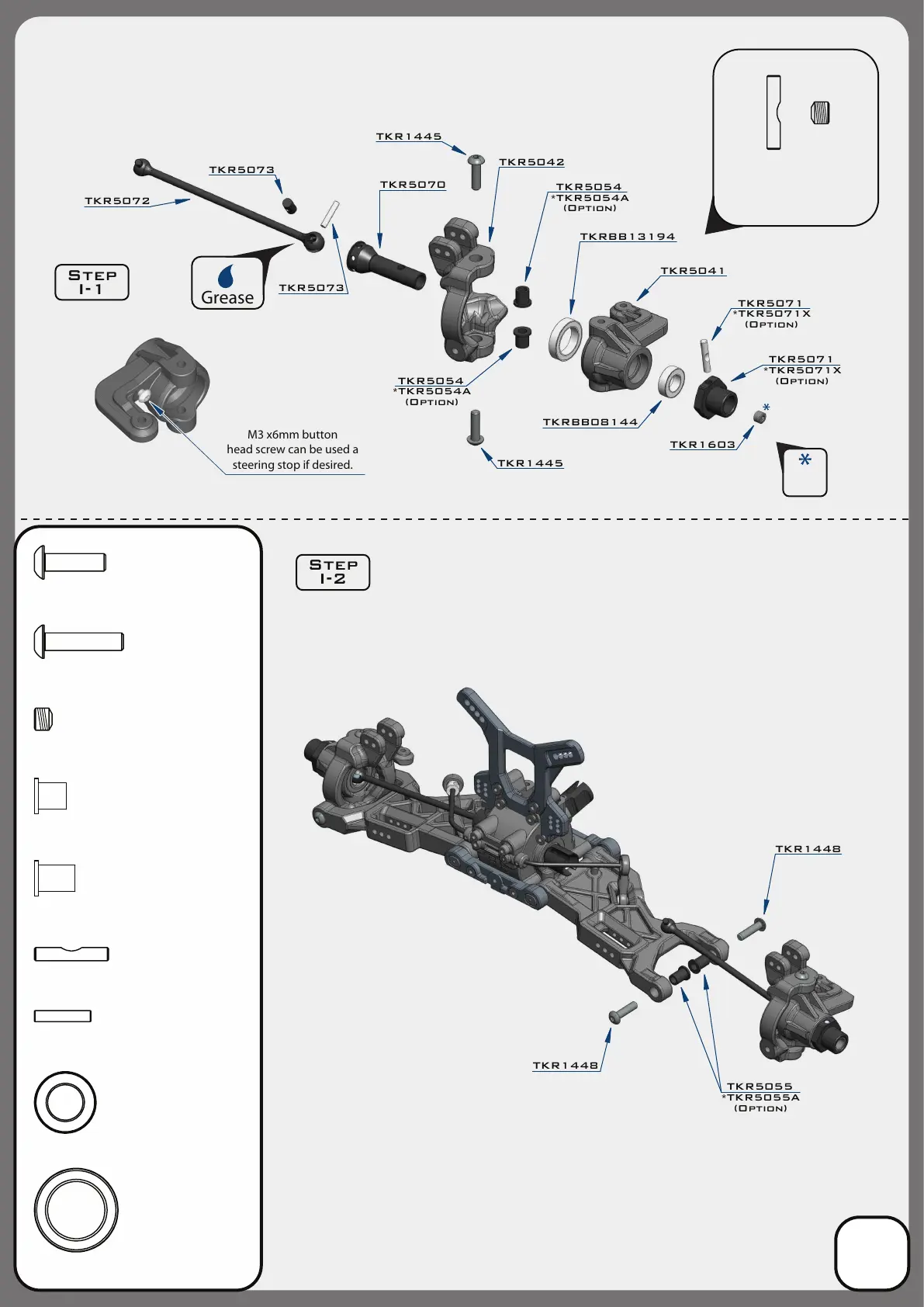

Tekno RC EB48 - Bag I: Front Steering Assembly; Front Steering Components; Front Steering Assembly Steps

TKR5072
TKR5073
TKR5042
TKR5041
TKR5054
TKR1603
TKRBB08144
TKRBB13194
TKR1445
TKR1445
TKR5071
TKR5071
TKR5073
TKR5070
TKR1448
TKR1448
TKR5055
M3 x6mm button
head screw can be used a
steering
stop if desired.
TKR5073
CV Joint Pin
x2
TKR5071
M3x16.8mm Pin
x2
TKR1445
M4x14mm Button Head Screw
x4
TKRBB13194
x2
TKRBB08144
x2
TKR5054
Spindle Pin Sleeve
x4
TKR5055
Suspension Pin Sleeve Front
x4
TKR1448
M4x18mm Button Head Screw
x4
*TKR5054A
(Option)
*TKR5071X
(Option)
*TKR5071X
(Option)
*TKR5055A
(Option)
TKR5054
*TKR5054A
(Option)
Step
I-1
Step
I-2
Grease
TKR1603
M5x4mm Set Screw
x2
Bag I
Front Steering
14
Note: notch on pin
needs to line up
with set screw.
Thread
Lock
