Tekno RC EB48 - Bag L: Center;Rear Assembly; Center;Rear Components; Center;Rear Assembly Steps

TKR5107
TKR5107
TKR5210
TKR1522
TKR5078
TKR1443
TKR5062
TKR1344
TKR1343 x5
TKR1443
TKR5062
TKR5076
TKR1344 x5
TKR1522
M3x8mm Cap Head Screw
x4
TKR1343
M4x10mm Flat Head Screw
x5
TKR1443
M4x10mm Button Head Screw
x2
TKR1344
M4x12mm Flat Head Screw
x7
*TKR5217
(Option)
*TKR5077
(Option)

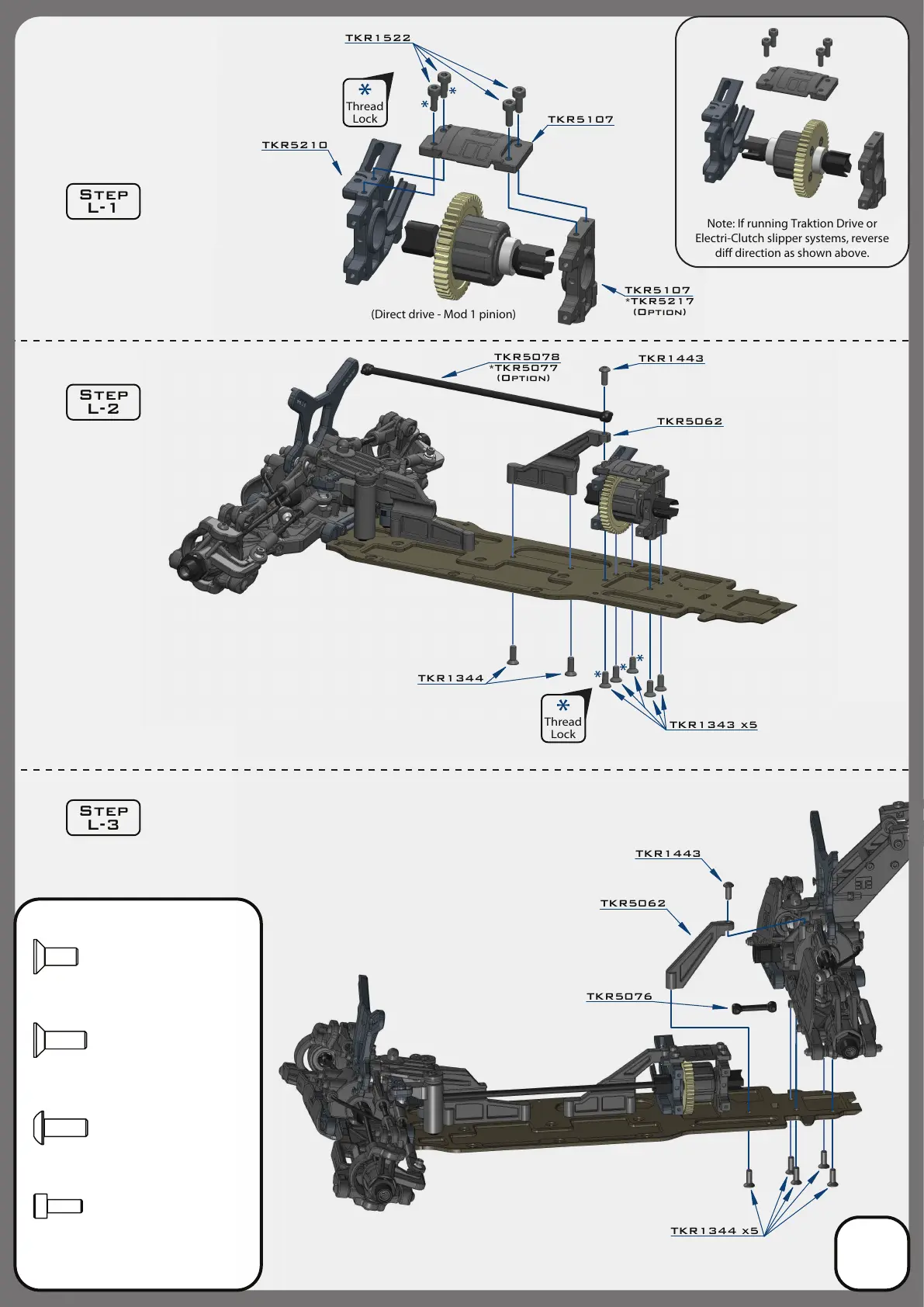

Step
L-1
Step
L-2
Step
L-3
Thread
Lock
Thread
Lock
Note: If running Traktion Drive or
Electri-Clutch slipper systems, reverse
di direction as shown above.
(Direct drive - Mod 1 pinion)
Bag L
Center/Rear Assembly
