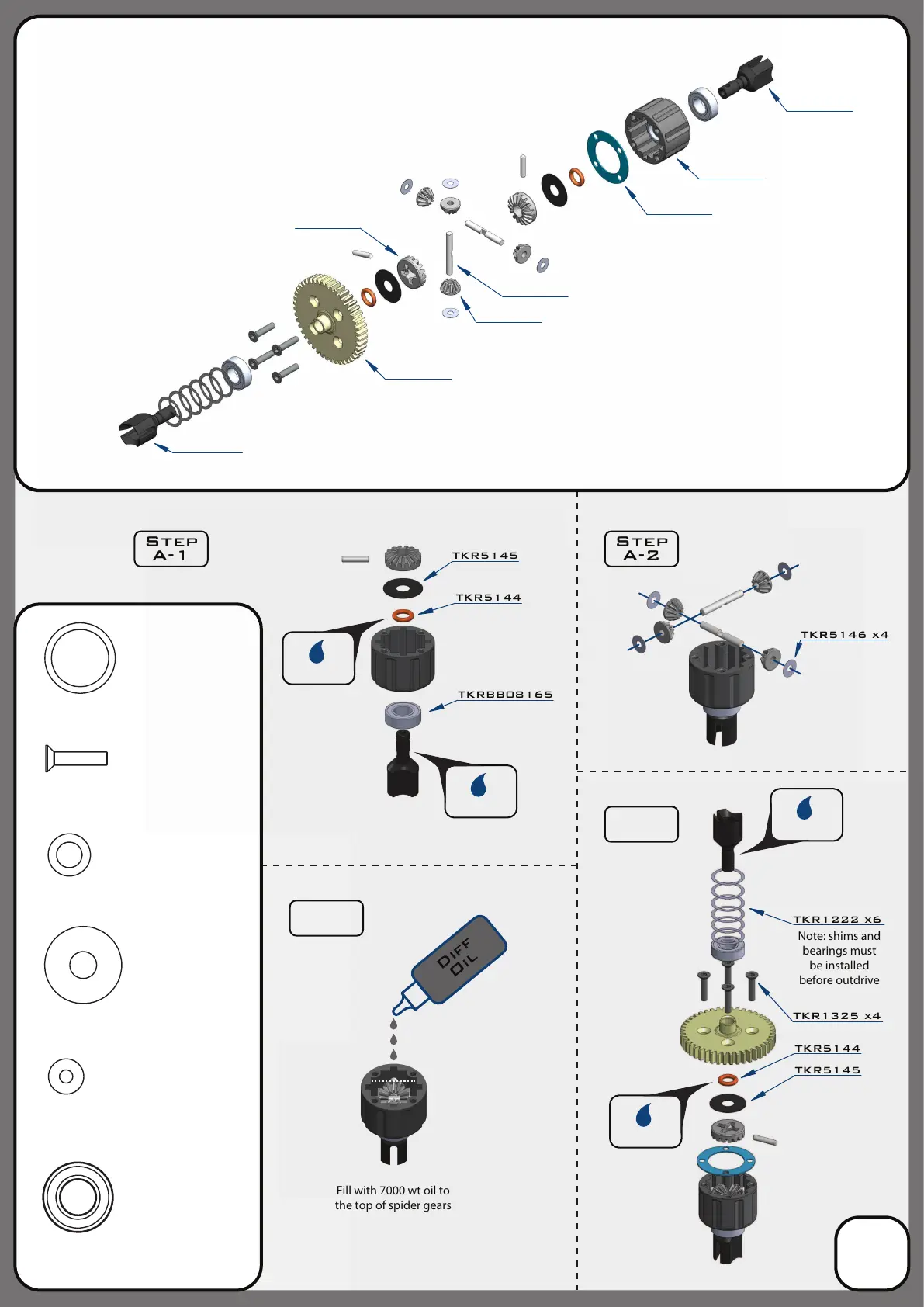

Tekno RC EB48 - Bag A: Center Differential Assembly; Center Diff Components; Center Diff Assembly Steps

TKR5145
TKR5144
Bag A
Center Differential
(overview)
TKR5112
TKR5112
TKR5237
TKR5141
TKR5140
TKR5140
TKR5143
TKR5113
*TKR5112X
(Option)
*TKR5115
(Option)
*TKR5112X
(Option)
TKR5146 x4
Step
A-2
TKR1325
M3x14mm Flat Head Screw
x4
TKR5144
TKR5145
Note: shims and
bearings must
be
installed
before outdrive
TKR1222 x6
TKR1222
13x16x0.1mm Diff Shim
x6
Step
A-1
Fill with 7000 wt oil to
the top of spider gears
TKRBB08165
Ball Bearing(8x16x5mm)
x2
TKR5144
Differential 0-rings
x2
x4
TKR5146
Differential Shims
(3x8x0.15mm)
TKR5145
Differential Shims (6x17mm)
x2
TKR1325 x4
TKRBB08165
Diff
Oil
3
Step
A-4
Step
A-3
Grease
Grease
Grease
Grease
