Tekno RC EB48 - Bag P: Linkages & Servo Arm Alignment; Linkage Assembly & Installation; Servo Arm Neutral Alignment

Bag P
Final Assembly
24
Step
P-6
Step
P-7
Step
P-8
TKR5058
Pivot Ball M3x5.8mm
No Flange
x2
TKR1201
M3 Lock Nut Black
x1
TKR1327
M3x16mm Flat Head Screw
x2
TKR5230
M3x18 Threaded Rod
x1
TKR5058
TKR1327
TKR1201
TKR1327
TKR5230
TKR5056
TKR5058
TKR5056

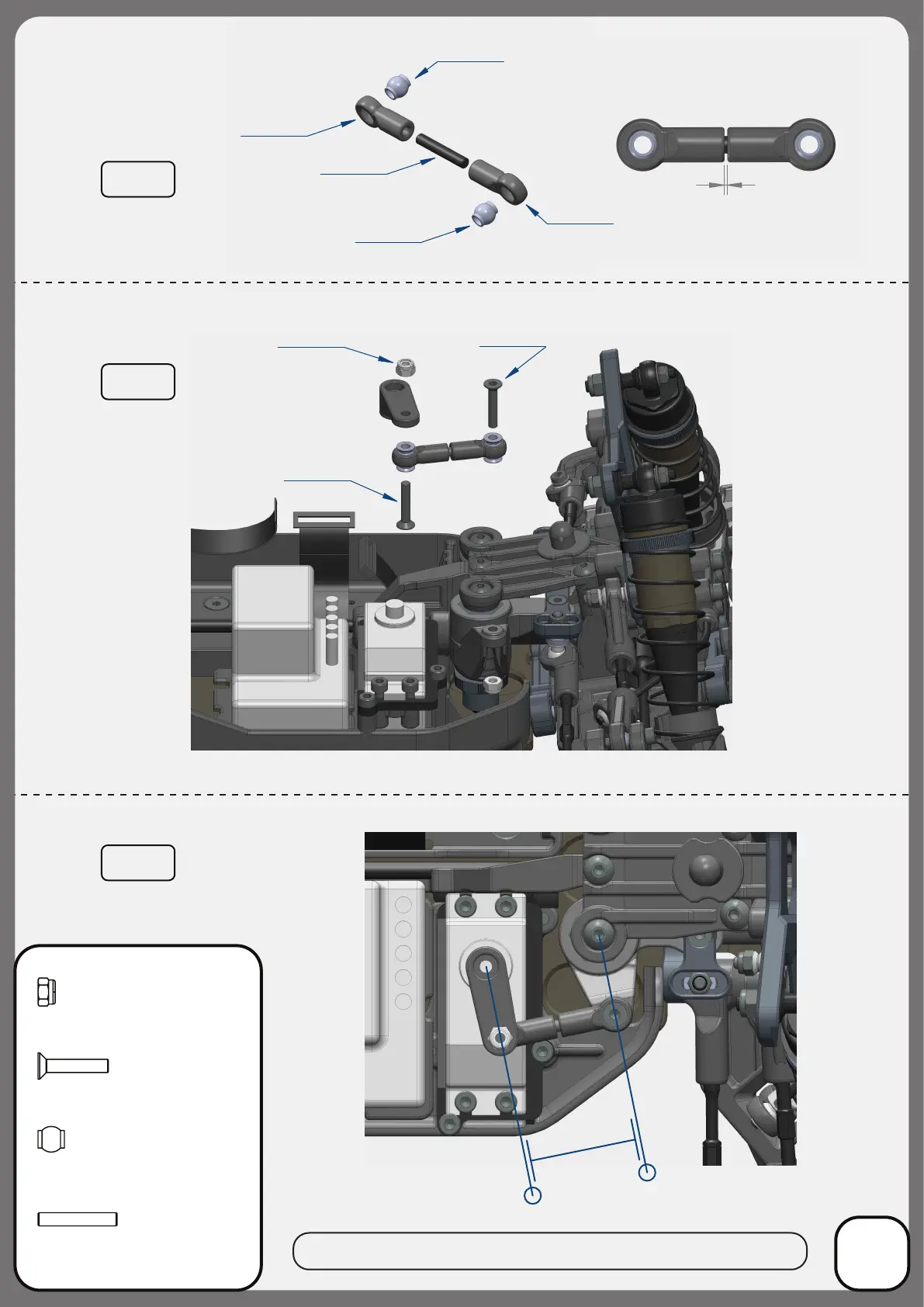

Note: Oset servo arm so it is parallel with the connecting arm at neutral or zero servo position.
PARALLEL
.5mm
