Tekno RC EB48 - Bag J: Steering Assembly; Steering Assembly Components; Steering Assembly Steps

TKR1323
TKRBB050825
TKRBB050825
5.50
31.60
Note: Notch always goes on
the left side of the
vehicle
Note: Apply a small
drop of oil for
easy installation.
Stock Position
(in center hole)
TKR5100
TKR5056
TKR5056
TKR5056
TKR5056
TKR5123
TKR5123
TKR5052
TKR5052
TKR5052
TKR5122
TKR5104
TKR5104
TKR5104
TKR5231
TKR5231
TKR1201
TKRBB06103TKRBB06103
TKRBB06103
TKR1529
TKR1221
Note: Stock bumpsteer setting is two washers
above and below the steering ball link.
2 x TKR1221
2 x TKR1221
TKR1221
TKRBB06103
TKR5122
TKR1323
M3x10mm Flat Head Screw
x2
TKR1201
M3 Lock Nut Black
x2
O-ring 16x12x2
TKR5231
x1
TKRBB06103
Ball Bearing (6x10x3)
x4
TKRBB050825
Ball Bearing (5x8x2.5)
x4
TKR1529
M3x20mm Cap Head Screw
x2
TKR5052
Pivot Ball M3x6.8mm
x4
TKR1221
M3x8mm Washer
x8
*TKR5052A
(Option)
TKR5052
*TKR5052A
(Option)
TKR5052
*TKR5052A
(Option)
TKR5052
*TKR5052A
(Option)
*TKR5052A
(Option)
*TKR5052A
(Option)
Step
J-1
Step
J-2
Step
J-3
Step
J-4
Thread
Lock
Thread
Lock
Bag J

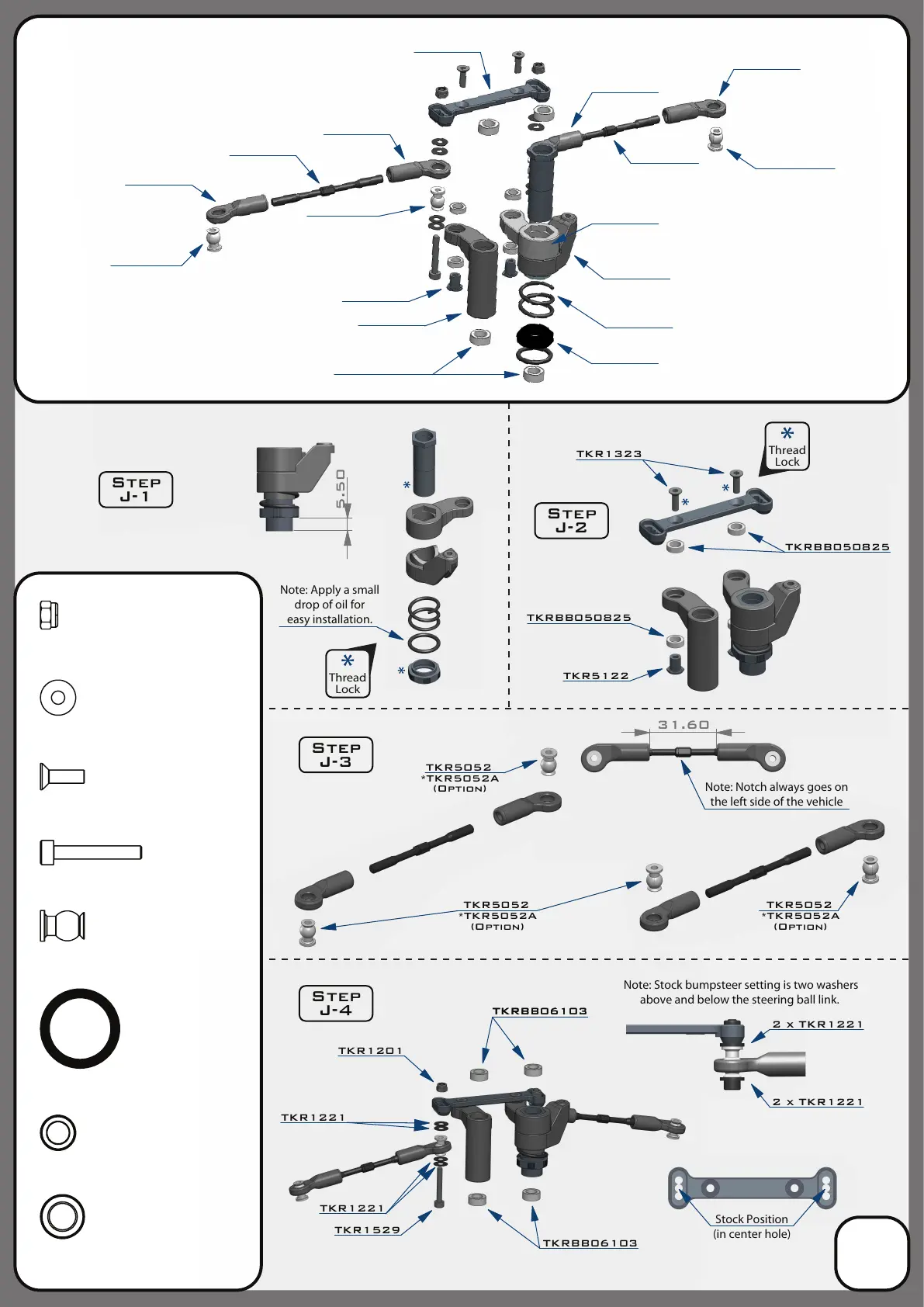

Steering Assembly
(overview)
16
