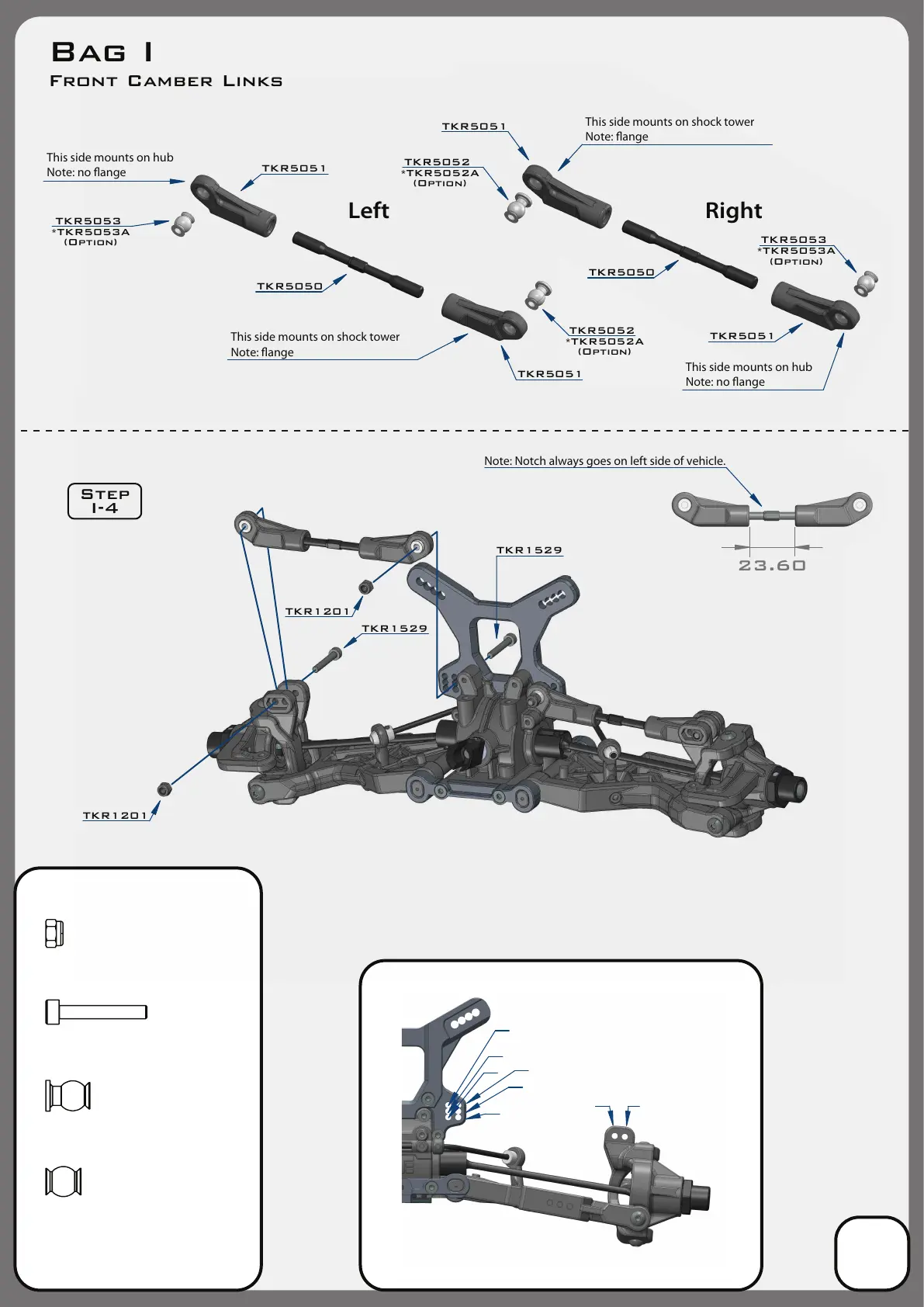

Tekno RC EB48 - P15_EB48 instructions_BagI

TKR1529
23.60
Note: Notch always goes on left side of vehicle.
A
B
Stock position is 2B
TKR1529
TKR1201
TKR1201
TKR1201
M3 Lock Nut Black
x4
TKR1529
M3x20mm Cap Head Screw
x4
TKR5052
Pivot Ball M3x6.8mm
x2
TKR5053
Pivot Ball M3x6.8mm
No Flange
x2
TKR5051
TKR5050
TKR5051
TKR5052
This side mounts on hub
Note: no ange
This side mounts on shock tower
Note: ange
TKR5053
Right
TKR5051
This side mounts on hub
Note: no ange
This side mounts on shock tower
Note: ange
TKR5051
Left
TKR5050
*TKR5053A
(Option)
TKR5053
*TKR5053A
(Option)
*TKR5052A
(Option)
TKR5052
*TKR5052A
(Option)
1
2
3
4
5
6
Step
I-4
Bag I
Front Camber Links
15
