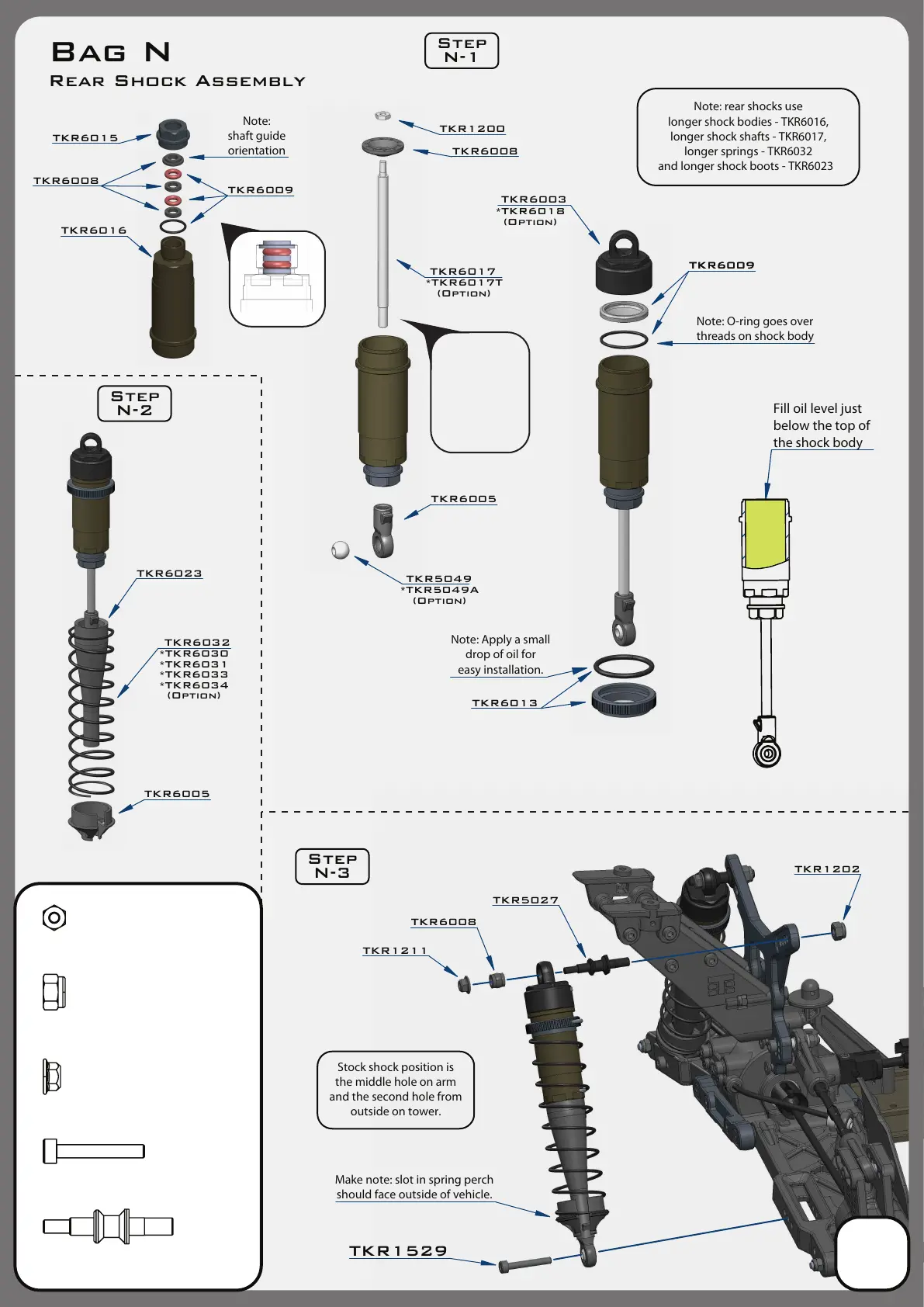

Tekno RC EB48 - Bag N: Rear Shock Assembly; Rear Shock Components; Rear Shock Assembly & Installation

Note: rear shocks use
longer shock bodies -
TKR6016,
longer shock shafts - TKR6017,
longer springs - TKR6032
and longer shock boots - TKR6023
TKR6032
TKR6023
TKR6005
TKR6015
TKR6008
TKR6009
TKR6016
TKR6003
TKR6009TKR6009
TKR6013
Note: O-ring goes over
threads on shock body
*TKR6018
(Option)
*TKR6030
*TKR6031
*TKR6033
*TKR6034
(Option)
TKR1200
TKR6008
TKR6017
TKR6005
TKR5049
*TKR5049A
(Option)
*TKR6017T
(Option)
Fill oil level just
below the
top of
the shock body
Note:
shaft guide
orientation
TKR1202
TKR1529
Make note: slot in spring perch
should face outside of vehicle.
TKR1211
TKR6008
TKR5027
Step
N-1
Step
N-2
Step
N-3
Note: Apply a small
drop of oil for
easy installation.
Hex 4035 - M2.5
TKR1200
x2
TKR1529
M3x20mm Cap Head Screw
x2
TKR1202
M4 Lock Nut Black
x2
TKR1211
M3 Lock Nut Flange Black
x2
TKR5027
Shock Stand Off
x2
Stock shock position is
the middle hole on arm
and the second hole from
outside on tower.
Bag N
Rear Shock Assembly
21
Note: Use green
slime or oil on
shock shaft
threads AND
O-rings to
prevent tearing
and leaking.
