Characteristic
READOUT DISPLAY
Number of Digits
Display Size
Sampling Rate
1
Over range Capability
Indication
Input Amplifier Overload
1
A/D Converter Overload
1
RMS Converter Overload
1
Characteristic
Deflection Factor
Calibrated Range
Accuracy
Uncalibrated (Variable) Range
DC Balance
1
Vc:iric1blc DC Shift
1
Position Range (Vertical)
1
1
Supplemental information only.
@

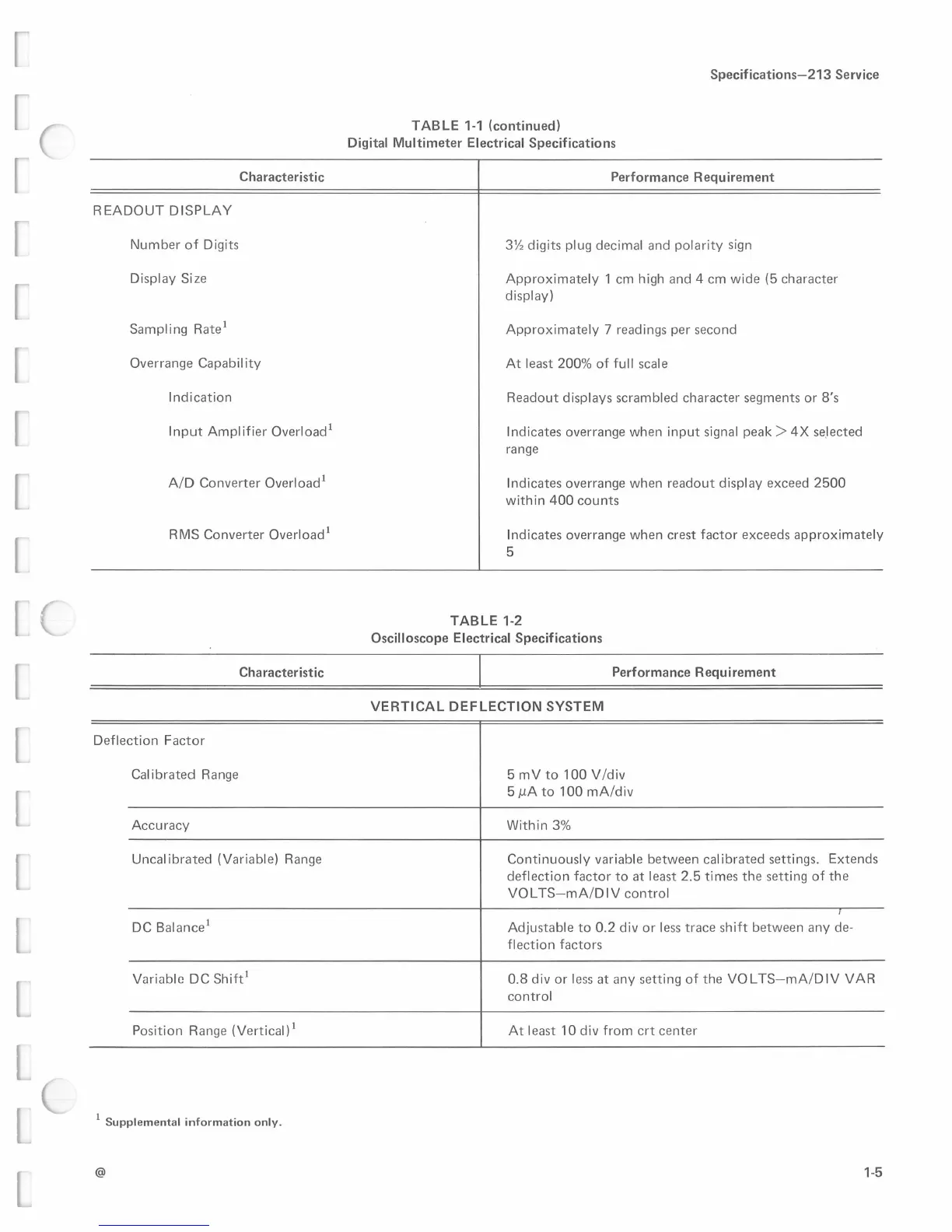

Specifications-213 Service
TABLE 1-1 (continued)
Digital Multimeter Electrical Specifications
Performance Requirement
3½ digits plug decimal and polari ty sign
Approximately 1 cm high and 4 cm wide (5 character
display)
Approximately 7 readings per second
At least 200% of full scale
Readout displays scrambled character segments or 8's
Indicates overrange when input signal peak> 4X seJected
range
Indicates overrange when readout display exceed 2500
within 400 counts
Indicates overrange when crest factor exceeds approximately
5
TABLE 1-2
Oscilloscope Electrical Specifications
Performance Requirement
VERTICAL DEFLECTION SYSTEM
5 mV to 100 V /div
5 µA to 100 mA/div
Within 3%
Continuously variable between calibrated settings. Extends
deflection factor to at least 2.5 times the setting of the
VOL TS-mA/D IV control
/
Adjustable to 0.2 div or less trace shift between any de-
flection factors
0.8 div or less at any setting of the VOL TS-mA/D IV VAR
control
At least 10 div from crt center
1-5
