Section
2-213
Service
OPERATING
INSTRUCTIONS
SAFETY
INFORMATION
This
instrument
is
designed
to
allow
the
input
common
re-
ference
to
float
above
ground.
Under
this
condition,
the
probe
common
clip, COMMON
input
jack,
mA-n
input
jack,
EXT
TR
I G
jack,
and
the
power
plug
prongs
may
be
at
a
dangerous
potential.
See
Table
1-4,
Common
Isolation
Protection
in
the
Specifications
section.
When
operated
on
batteries,
the
power
line plug
should
be
stored
in
the
rear-panel insulated
compartment.
Potentials
applied
to
the
common
connectors
(probe
common
clip
or
COMMON jack)
may
cause small
amounts
of
current
to
flow
in
the
power-line
circuitry
creating
a possible
shock
hazard
on
the
plug
prongs.
The
probe
common
clip
and
COMMON
jack
are electrically
connected
to
each
other;
therefore,
any
potential
applied
to
one
is
present
on
the
other
creating
a possible
shock
ha-
zard.
Also,
to
prevent
dissimilar voltages being applied
to
the
probe
common
clip
and
COMMON
jack,
which
could
cause
equipment
damage,
only
one
should
be
connected
to
the
circuit
under
test
at
any
given
time.
The
probe
with
its
common
clip,
and
the
mA-n
input
jack
with
its COMMON
jack,
should
not
be
connected
simultaneously
to
a
circuit
under
test.
Personal
and
equipment
safety
precautions
are used
through-
out
this
manual
and
are
identified
as follows:
213
DMM
OSCILLOSCOPE
Personal
Safety
WARNING
I
Equipment
Safety
CONTROLS, CONNECTORS,
AND
INDICATORS
Side
Panel
CD
0
CD
©
mA-n-Banana-jack
input
for
current
and
resistance
measurements.
In
then
mode,
this
jack
is
negative
with
respect
to
the
COMMON jack.
EXT
TRIG-Banana-jack,
high-impedance
input
for
external
trigger voltage.
DC
BAL-Screwdriver
adjustment
to
adjust
for
mini-
mum
trace
shift,
or
change
in
DMM
zero
reading,
when
switching
vertical
deflection
factors
or
DMM
range.
COMMON-Banana-jack
common
return
path
for
cur-
rent
and
resistance
measurements,
or
as
an
alternate
reference
point
or
common
return
when
using
the
voltage
probe.
It
is
el
ectrically
connected
to
the
probe
common
clip.
1481-35

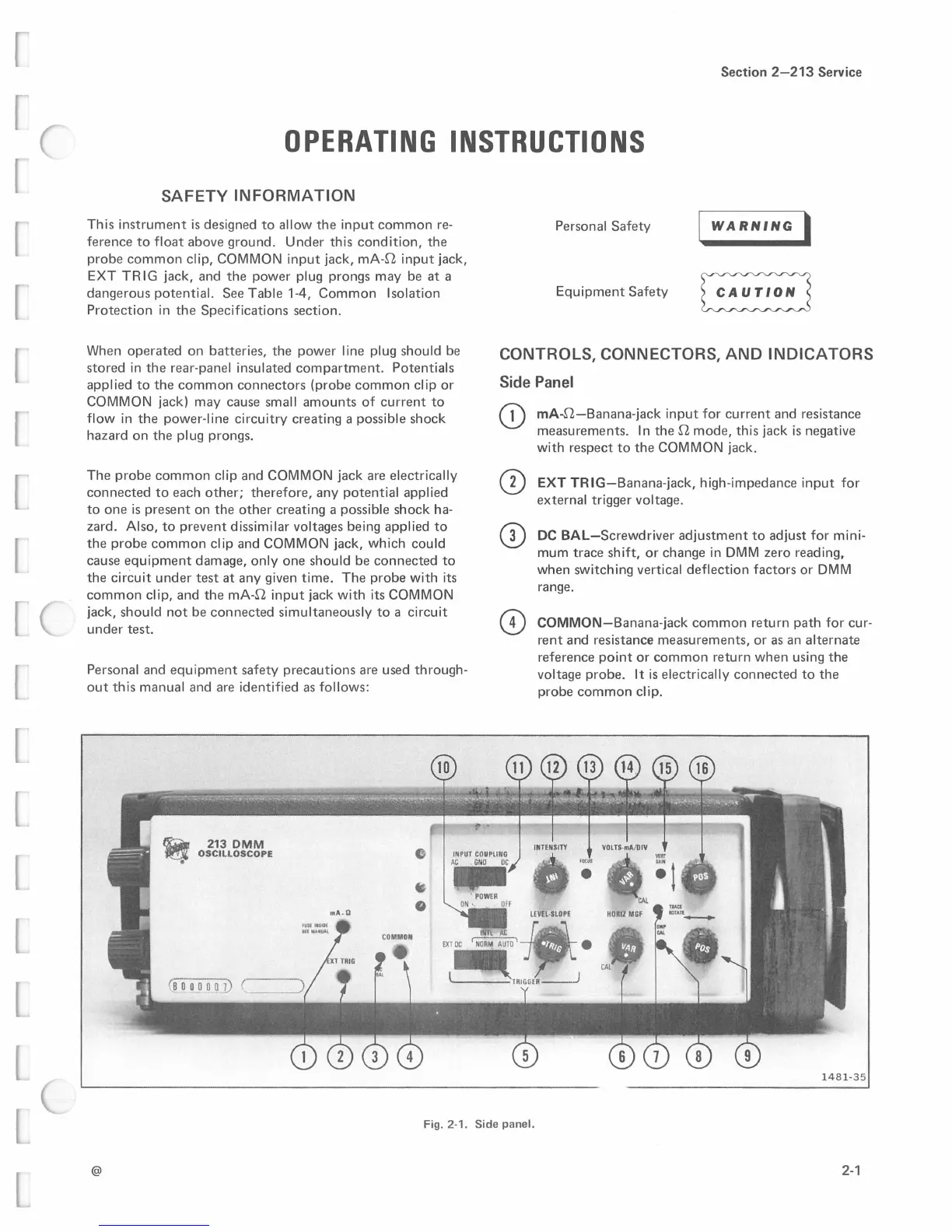

Fig. 2-1.
Side
panel.
@
2-1
