Tektronix 213 DMM User Manual

Specifications-213 Service
Characteristic
Dimensions
Weight ( Instrument Only)
Finish
TABLE 1-6
Physical
5.35"
(135.9 mm)
Description
See Figure 1-1. Dimensional Drawing
Approximately 3.7 lb (1.7 kg)
Blue plastic case; gray plastic side panel
I
2.10" I
~ (53.3 mm)--+-
1-10
j
i
-t
1.35"
(34.3 mm)
_i
FRONT
VIEW
213 DMM
OSCILLOSCOPE
1.65" (41.9 mm)
t
•
•
3.35"
(85.1 mm)
••
•
•
•
9.05"
(229.9 mm)
-•·
-
EZ2II
•·
SIDE VIEW

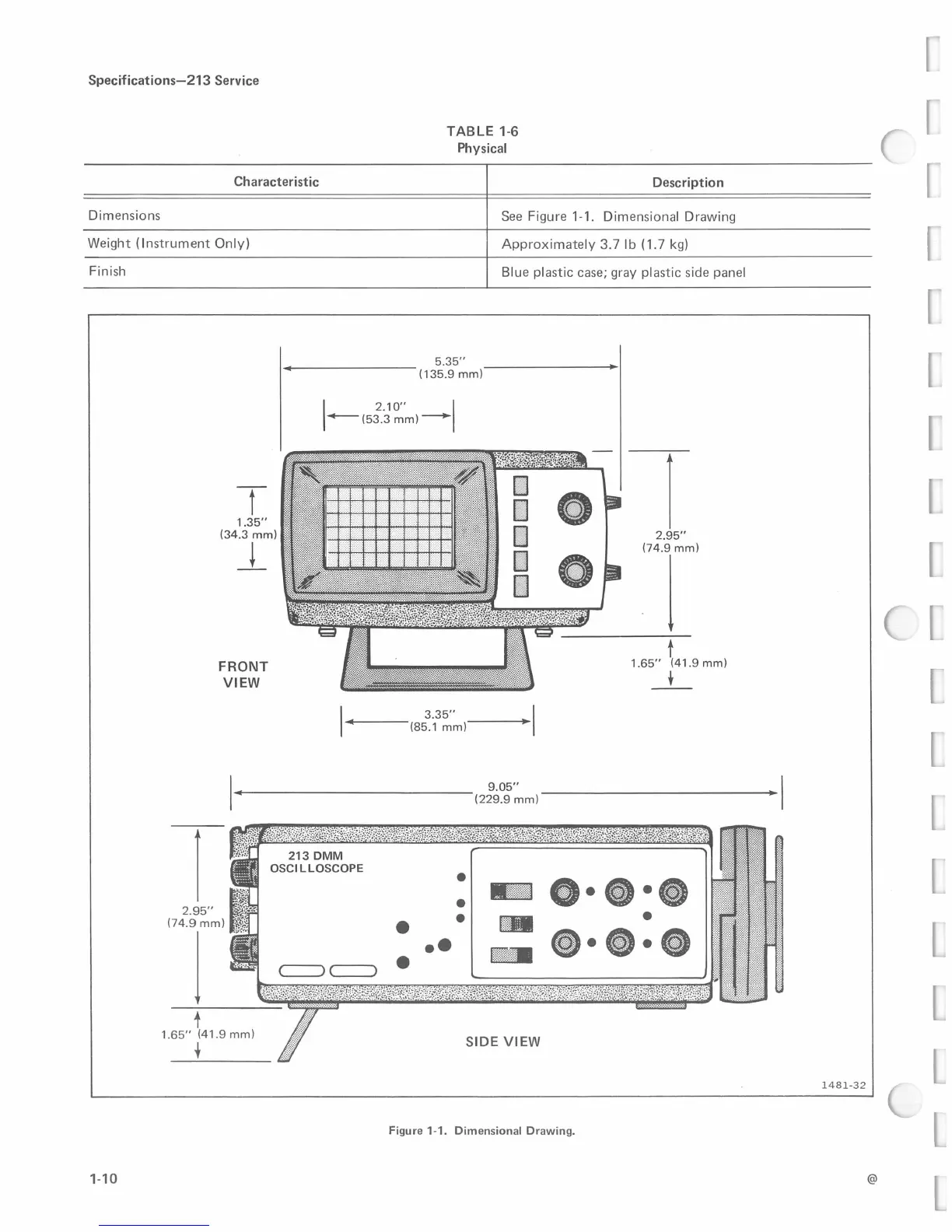

Figure 1-1 . Dimensional Drawing.
l
2.95"
(74.1 mm)
t
1.65" (41.9 mm)
•
·•
•
1481 - 32
@
