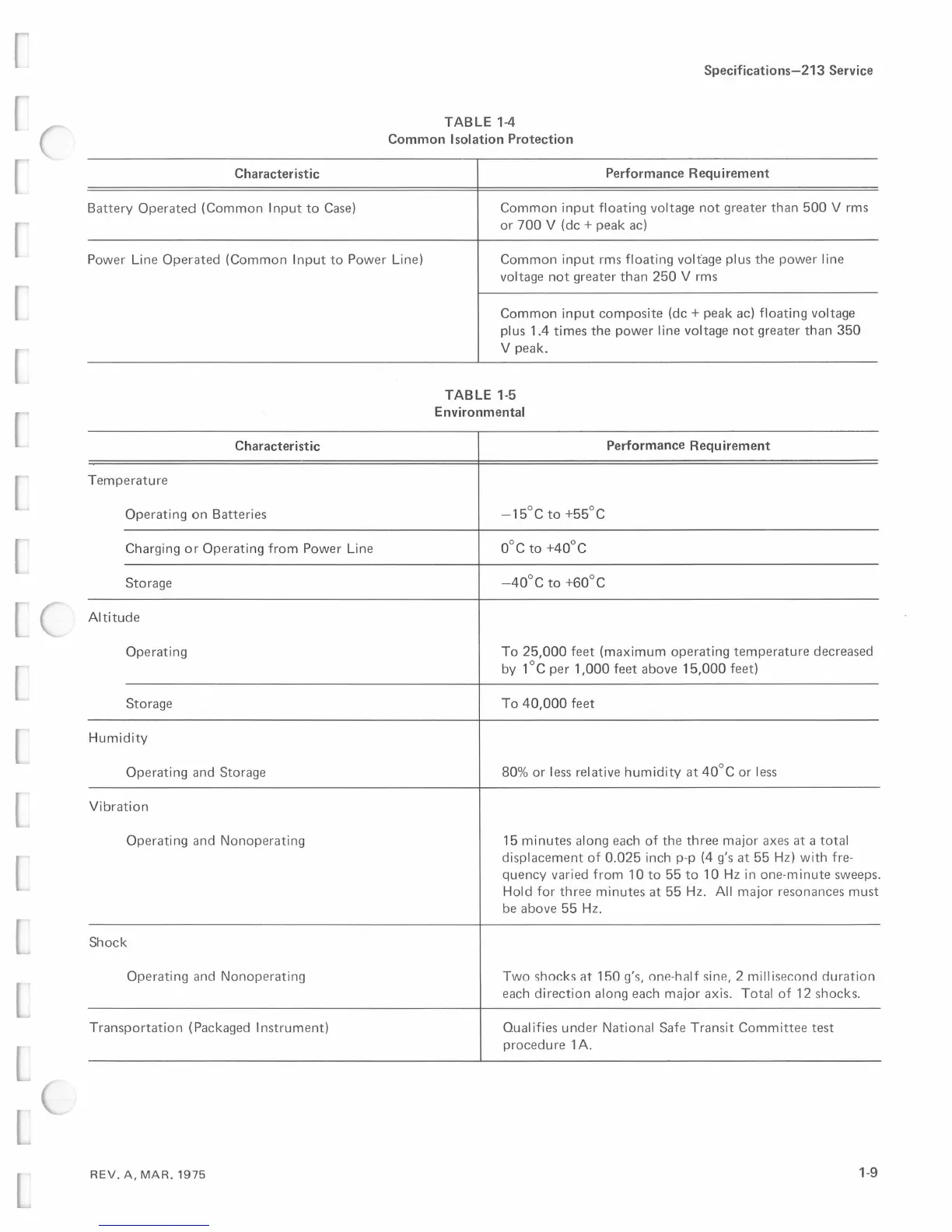

Tektronix 213 DMM User Manual

Characteristic
Battery Operated (Common Input to Case)
TABLE 1-4
Common Isolation Protection
Specifications-213 Service
Performance Requirement
Common input floating voltage not greater than 500 V rms
or 700 V (de+ peak ac)
Power Line Operated (Common Input to Power Line) Common input rms floating voltage plus the power line
voltage not greater than 250 V rms
Characteristic
Temperature
Operating on Batteries
Charging or Operating from Power Line
Storage
Altitude
Operating
Storage
Humidity
Operating and Storage
Vibration
Operating and Nonoperating
Shock
Operating and Nonoperating
Transportation (Packaged Instrument)
REV. A, MAR. 1975
Common input composite (de+ peak ac) floating voltage
plus 1.4 times the power line voltage not greater than 350
V peak.
TABLE 1-5
Environmental
-15°C to +55°C
0°C to +40°C
-40°C to +60°C
Performance Requirement
To 25,000 feet (maximum operating temperature decreased
by 1 ° C per 1,000 feet above 15,000 feet)
To 40,000 feet
80% or less relative humidity at 40°C or less
15 minutes along each of the three major axes at a total
displacement of 0.025 inch p-p (4 g's at 55 Hz) with fre-
quency varied from 10 to 55 to 10 Hz in one-minute sweeps.
Hold for three minutes at 55 Hz. All major resonances must
be above 55 Hz.
Two shor.ks at 1!10 g's, onr.-half sinr., 2 milliser.ond duration
each direction along each major axis. Total of 12 shocks.
Ou al ifies under National Safe Transit Committee test
procedure 1 A.
1-9

Tektronix 213 DMM Specifications

General

Brand	Tektronix
Model	213 DMM
Category	Test Equipment
Language	English
