Specifications-213 Service
Characteristic
Frequency Response
5 µA to 10 µA/div
20 µA to 200 mA/div
5 mV to 10 mV/div
20 mV to 100 V /div

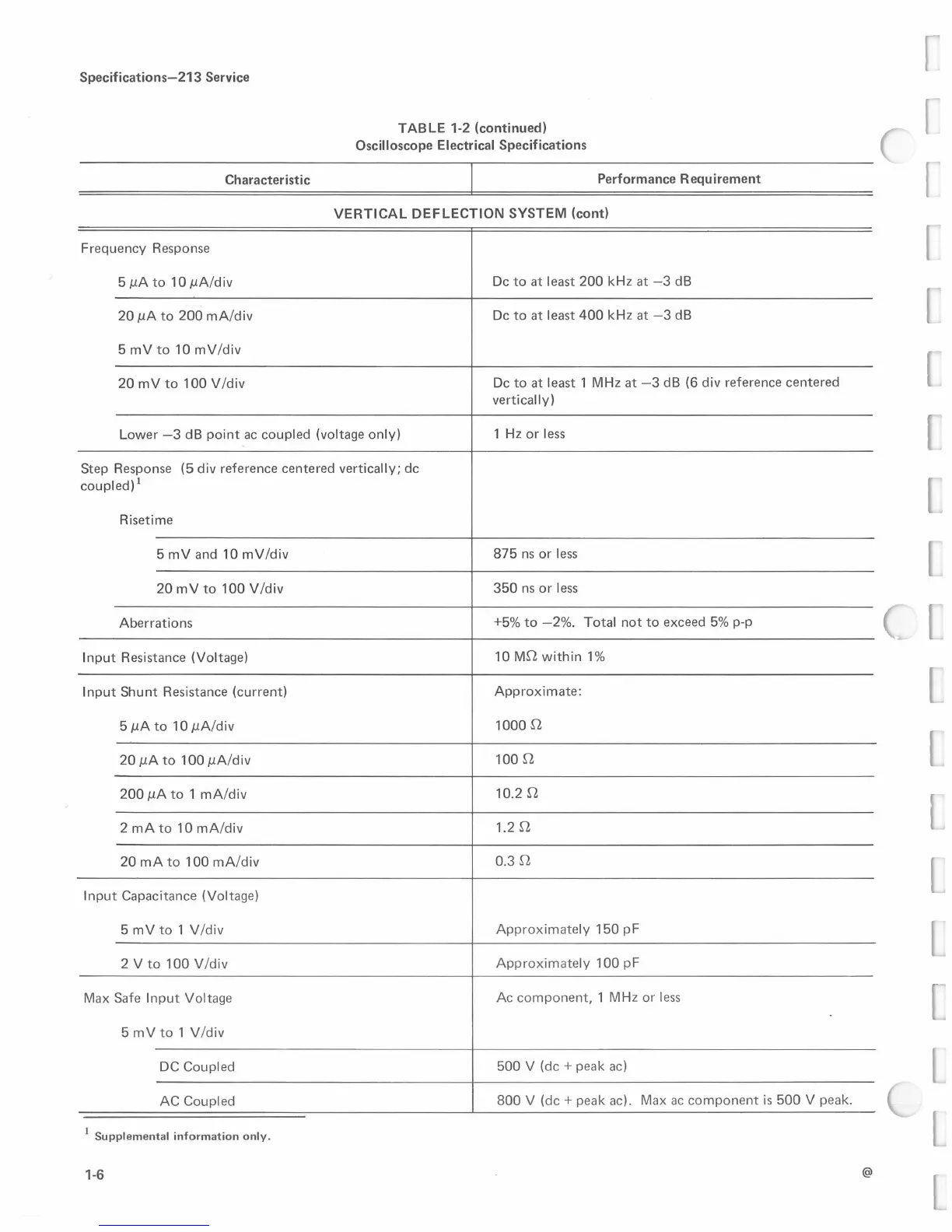

TABLE 1-2 (continued)
Oscilloscope Electrical Specifications
Performance Requirement
VERTICAL DEFLECTION SYSTEM (cont)
De to at least 200 kHz at -3 dB
De to at least 400 kHz at -3 dB
De to at least 1 MHz at -3 dB (6 div reference centered
vertically)
Lower -3 dB point ac coupled (voltage only)
1 Hz or less
Step Response
(5 div reference centered vertically; de
coupled)
1
Risetime
5 mV and 10 mV/div
875 ns or less
20 mV to 100 V /div
350 ns or less
Aberrations
+5% to -2%. Total not to exceed 5% p-p
Input Resistance (Voltage)
10 MQ within 1%
Input Shunt Resistance (current)
Approximate:
5 µA to 10 µA/div
1000 n
20 µA to 100 µA/div
100 n
200 µA to 1 mA/div
10.2 n
2 mA to 10 mA/div
1.2 n
20 mA to 100 mA/div
o.3 n
Input Capacitance (Voltage)
5 mV to 1 V/div
Approximately 150 pF
2 V to 100 V/div
Approximately 100 pF
Max Safe Input Voltage
Ac component, 1 MHz or less
5 mV to 1 V/div
DC Coupled
500 V (de+ peak ac)
AC Coupled
800 V (de+ peak ac).
Max ac component is 500 V peak.
1
Supplemental information only.
1-6
-,
@
