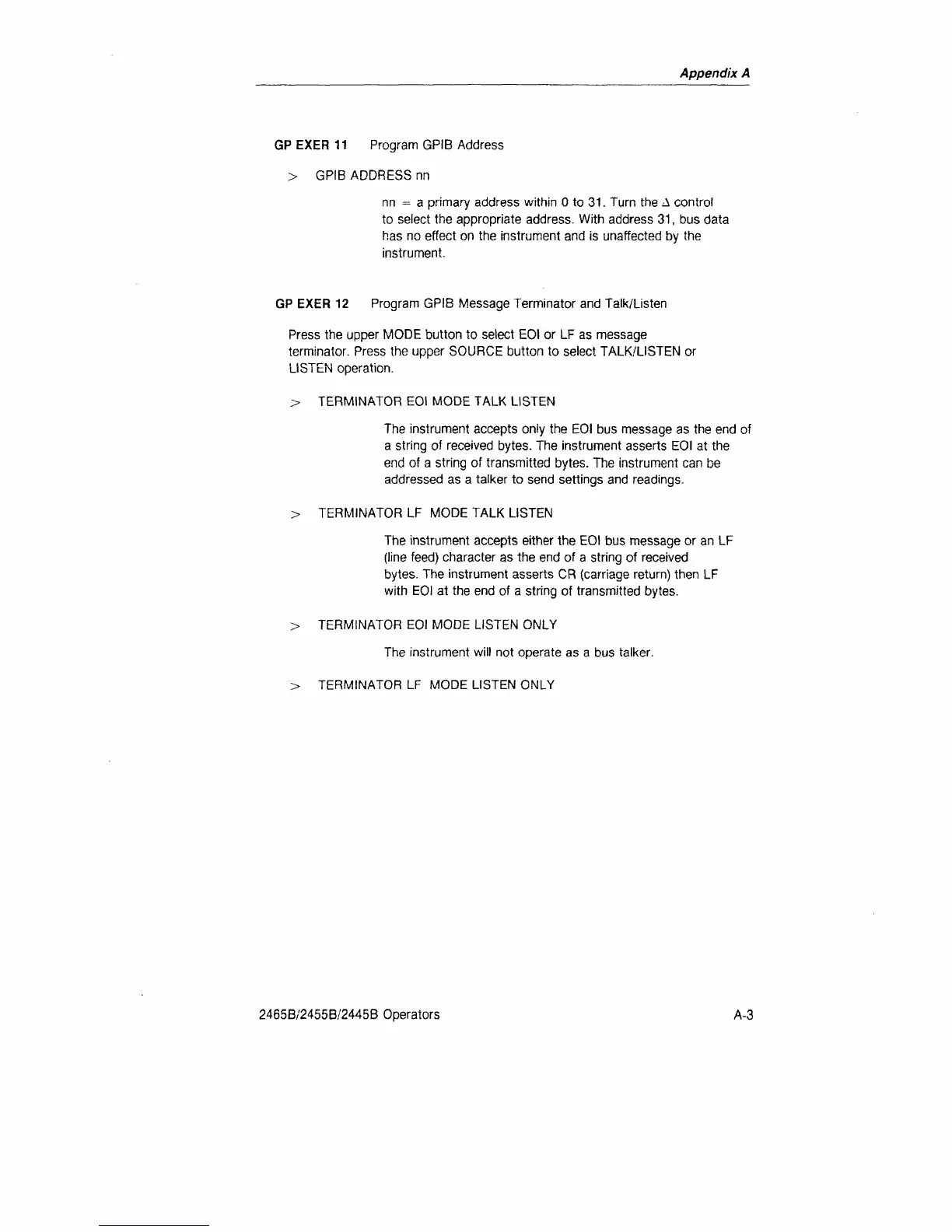

Appendix A
GP EXER 11 Program GPIB Address
> GPIB ADDRESS nn
nn = a primary address within 0 to 31. Turn the ^ control
to select the appropriate address. With address 31, bus data
has no effect on the instrument and is unaffected by the
instrument.
GP EXER 12 Program GPIB Message Terminator and Talk/Listen
Press the upper MODE button to select EOl or LF as message
terminator. Press the upper SOURCE button to select TALK/LISTEN or
LISTEN operation.
> TERMINATOR EOl MODE TALK LISTEN
The instrument accepts only the EOl bus message as the end of
a string of received bytes. The instrument asserts EOl at the
end of a string of transmitted bytes. The instrument can be
addressed as a talker to send settings and readings.
> TERMINATOR LF MODE TALK LISTEN
The instrument accepts either the EOl bus message or an LF
(line feed) character as the end of a string of received
bytes.
The instrument asserts CR (carriage return) then LF
with EOl at the end of a string of transmitted bytes.
> TERMINATOR EOl MODE LISTEN ONLY
The instrument will not operate as a bus talker.
> TERMINATOR LF MODE LISTEN ONLY
2465B/2455B/2445B Operators
A-3
