Tektronix 3 Series Service Manual

Rear chassis

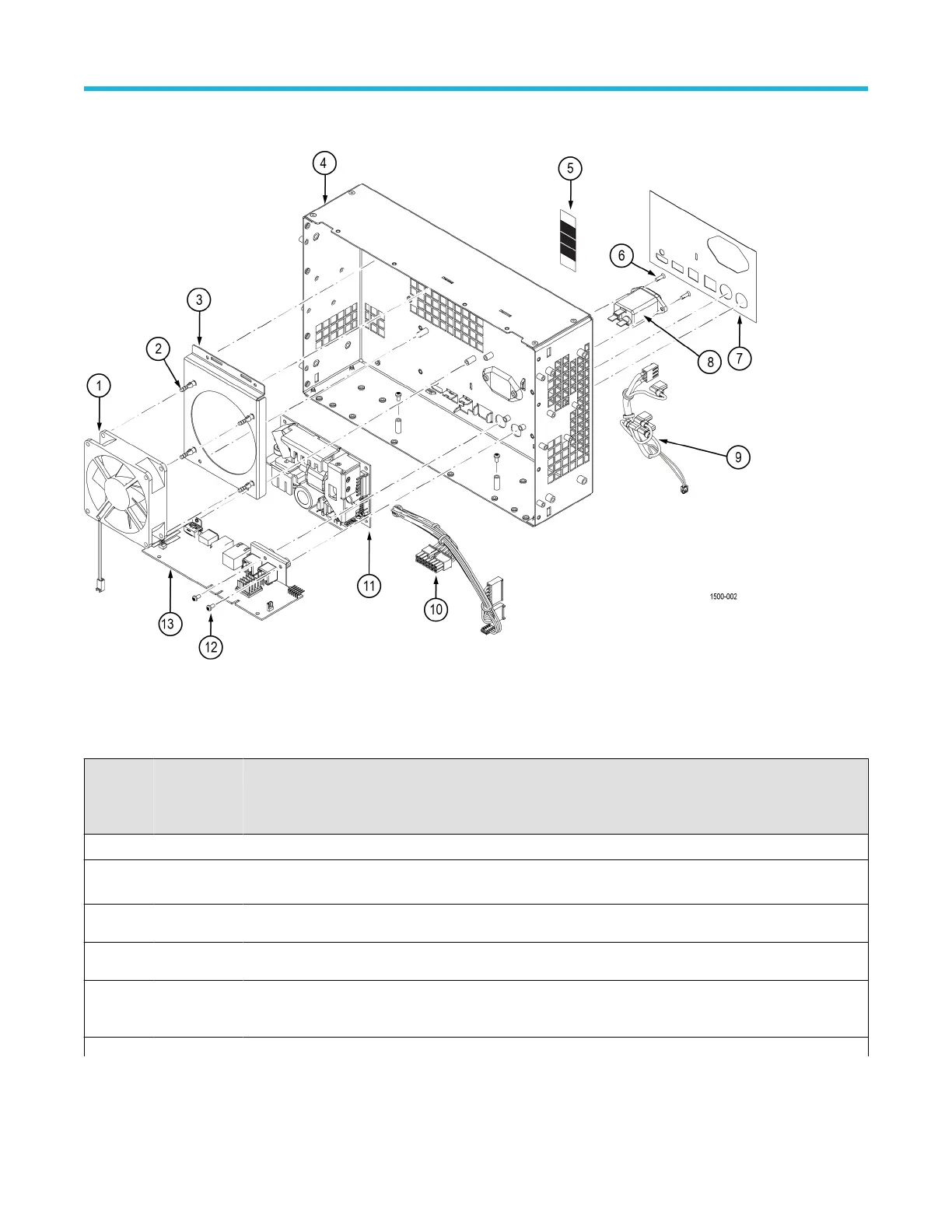

Figure 9: Rear chassis exploded view
Table 7: Rear chassis
Fig. &
index
number
Tektronix part
number
Serial no.
effective
Serial no.
discont'd Qty Name & description
Figure 9: Rear chassis exploded view on page 26
-1 119-8177-XX 1
FAN, TUBEAXIAL; 12 VDC, 0.21 A, 2.52 W, 1.45 M^3/MIN, 3150 RPM, 33
DBA, 92 MM X 92 MM X 25 MM, SAFETY CONTROLLED
-2 348-2082-XX 4
GROMMET, FAN MOUNT, NOISE DAMPING
-3 407-6149-XX 1 BRACKET, FAN
-4 441-2911-XX 1 CHASSIS, REAR (a new Rear I/O Label needs to be installed when
replacing the rear chassis; order separately)
Table continued…
Replaceable parts
3 Series MDO Mixed Domain Oscilloscope Service Manual 26
