Tektronix 3 Series Service Manual

Front panel and display

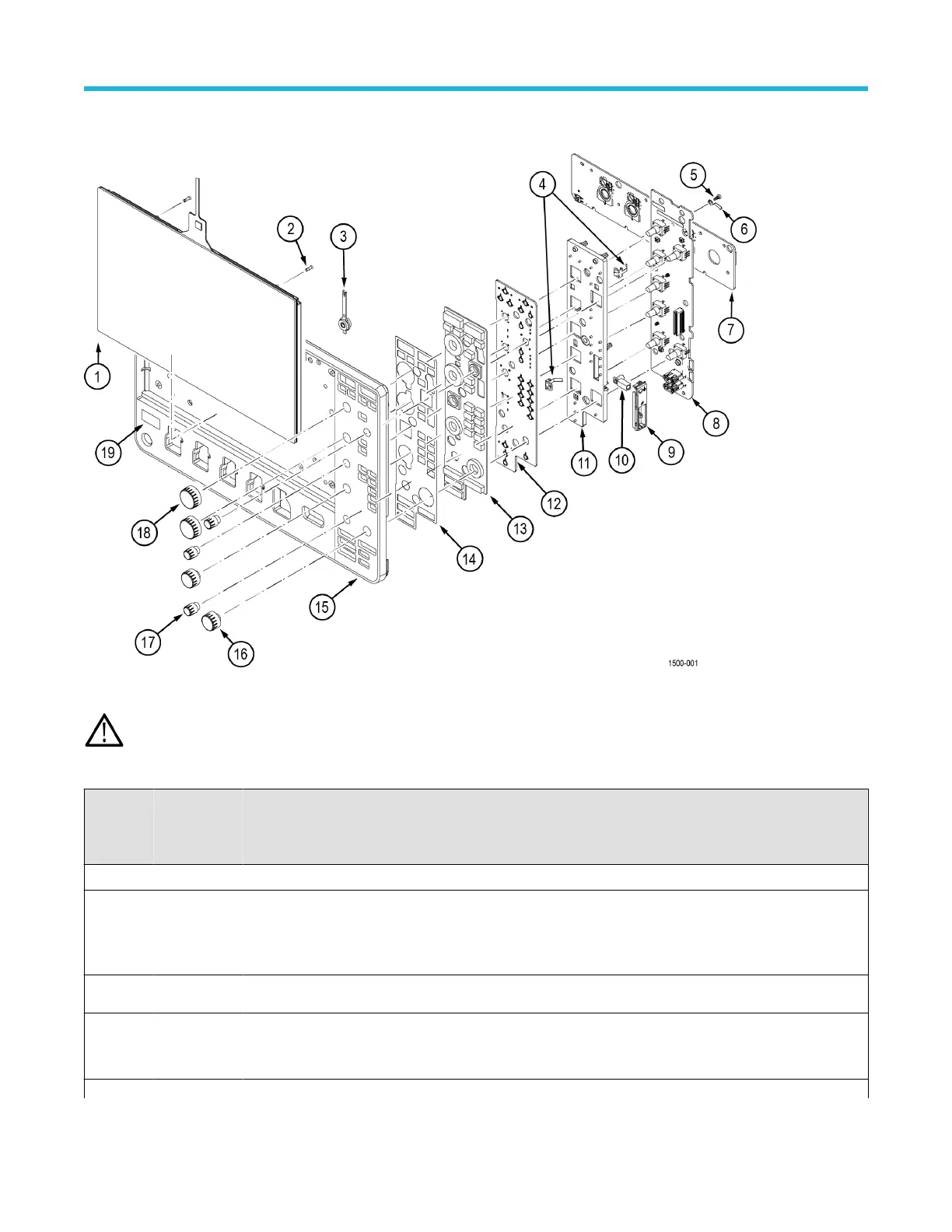

Figure 11: Front panel and display exploded view
Note: None of the components listed are user-replaceable except for front panel knobs and the front panel label. Return the
instrument to your nearest Tektronix Service Center to repair or replace any internal components or assemblies in this diagram.
Table 9: Front panel and display
Fig. &
index
number
Tektronix part
number
Serial no.
effective
Serial no.
discont'd Qty Name & description
Figure 11: Front panel and display exploded view on page 30
-1 850-0404-XX 1 ASSEMBLY,DISPLAY / TOUCHSCREEN (INCLUDES DISPLAY +
TOUCHSCREEN + BRACKET), SAFETY CONTROLLED
Return the instrument to Tektronix for service.
-2 211-1584-XX 5
SCREW, MACHINE, M3X0.5X6MM PAN HEAD, TORX T10
-3 366-0920-XX 1 BUTTON, POWER SWITCH, SAFETY CONTROLLED
Return the instrument to Tektronix for service.
Table continued…
Replaceable parts
3 Series MDO Mixed Domain Oscilloscope Service Manual 30
