Available settings depend on the probe.

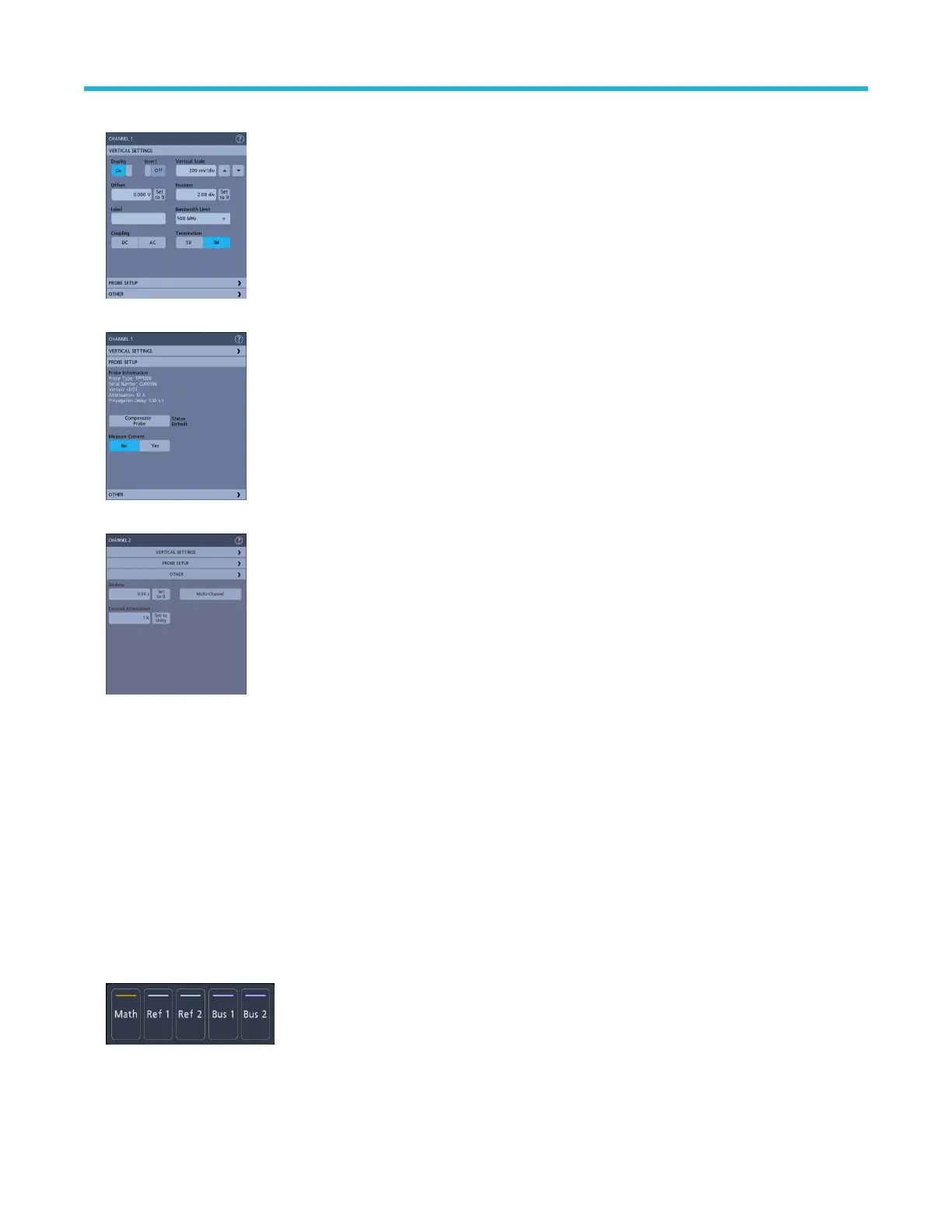

2. Tap the Probe Setup panel to confirm probe settings and run configuration or compensation on supported probes.
3. T
ap the Other panel to set probe deskew and external attenuation parameters.
4. T
ap the Help icon on the menu title to open the help topic for more information.
5. Tap outside the menu to close the menu.
Add a math, reference, or bus waveform
Math waveforms let you create new waveforms based on operations between two or more waveforms or by applying equations to
waveform data. A reference waveform is a static waveform record displayed for comparison. Bus waveforms let you view and analyze
serial or parallel data.
About this task
You can add 1 Math, 4 Reference (2 Reference on a 2 channel instrument), or 2 Bus waveforms to the Waveform View.
Procedure
1. Tap the Add Math Ref Bus button in the Settings bar and select from the available waveforms.
2. The instrument adds the waveform to the W
aveform view and adds a Waveform badge to the Settings bar. This example shows adding
the Math waveform.
Analog channel operating basics
3 Series Mixed Domain Oscilloscope Printable Help 71
