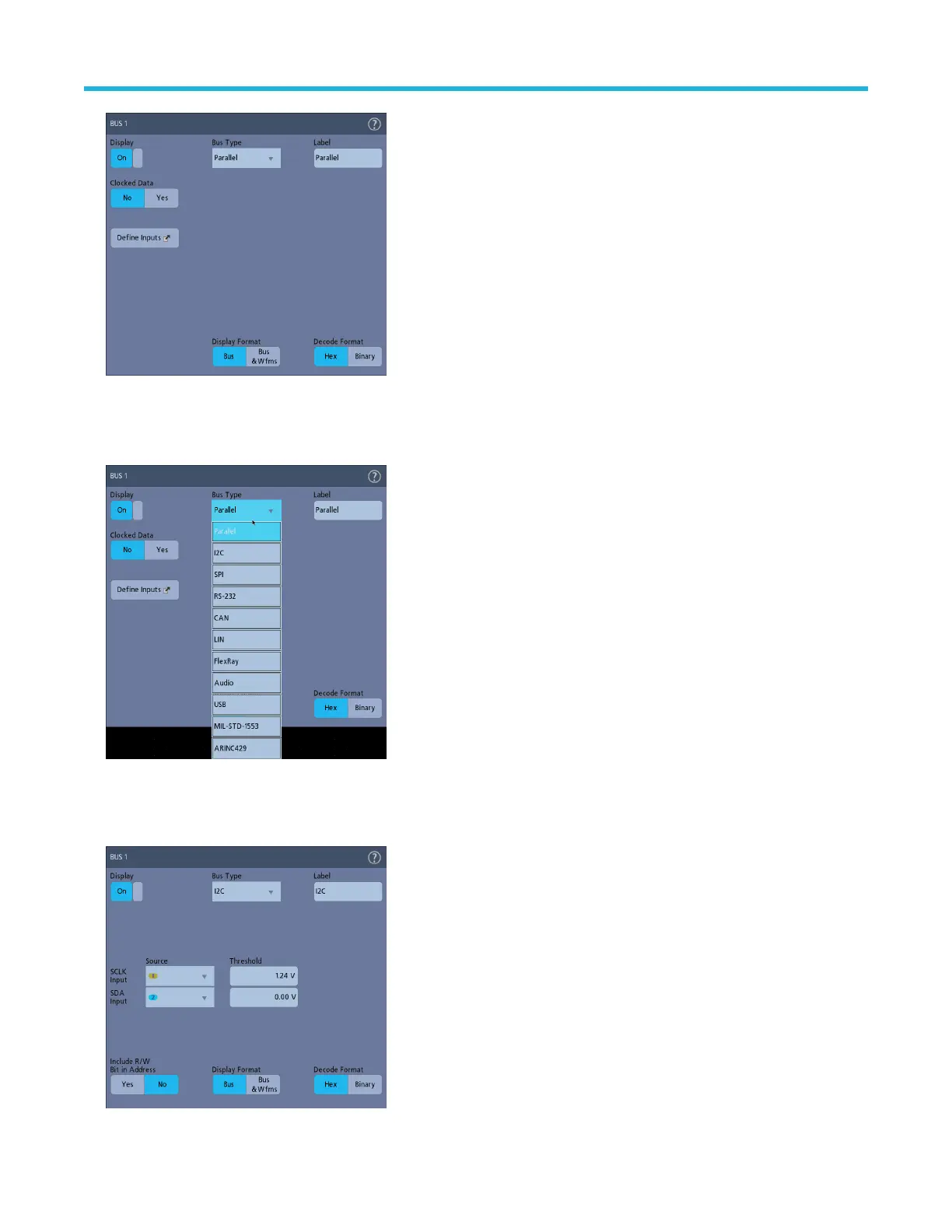

2. Double tap the Bus badge to open the Bus Configuration menu.
3. T
ap Bus Type and select the bus type from the drop-down list.
4. Use the fields and controls to select the bus signal sources, thresholds, other parameters, and the output format. The following
example shows the settings for an I
2
C serial bus.
