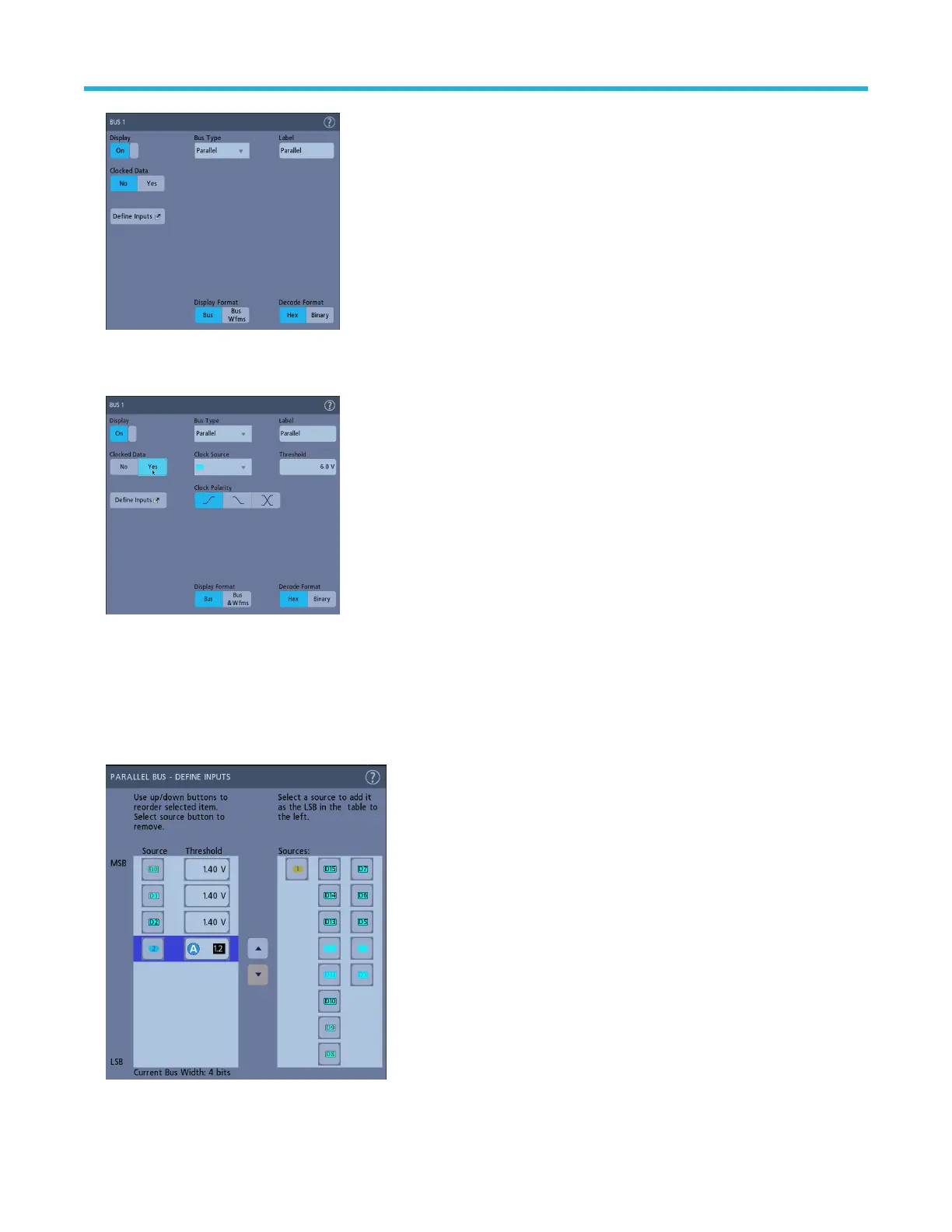

3. If setting up a clocked bus:
a) Set Clocked Data to Y
es.
b) Tap the Clock Source field and select the source for the parallel bus clock signal.
c) Tap the Clock Polarity and Threshold controls and set the clock signal transition to detect and threshold level, respectively.
4. Tap Define Inputs and select the signal sources for the parallel bus. Signal sources can be analog or digital. Tap a signal in the
Sources list to add it to the bus list on the left.
Acquiring digital signals
3 Series Mixed Domain Oscilloscope Printable Help 85
