Function introduction
AFG31000 Series Arbitrary Function Generator User's Manual 105

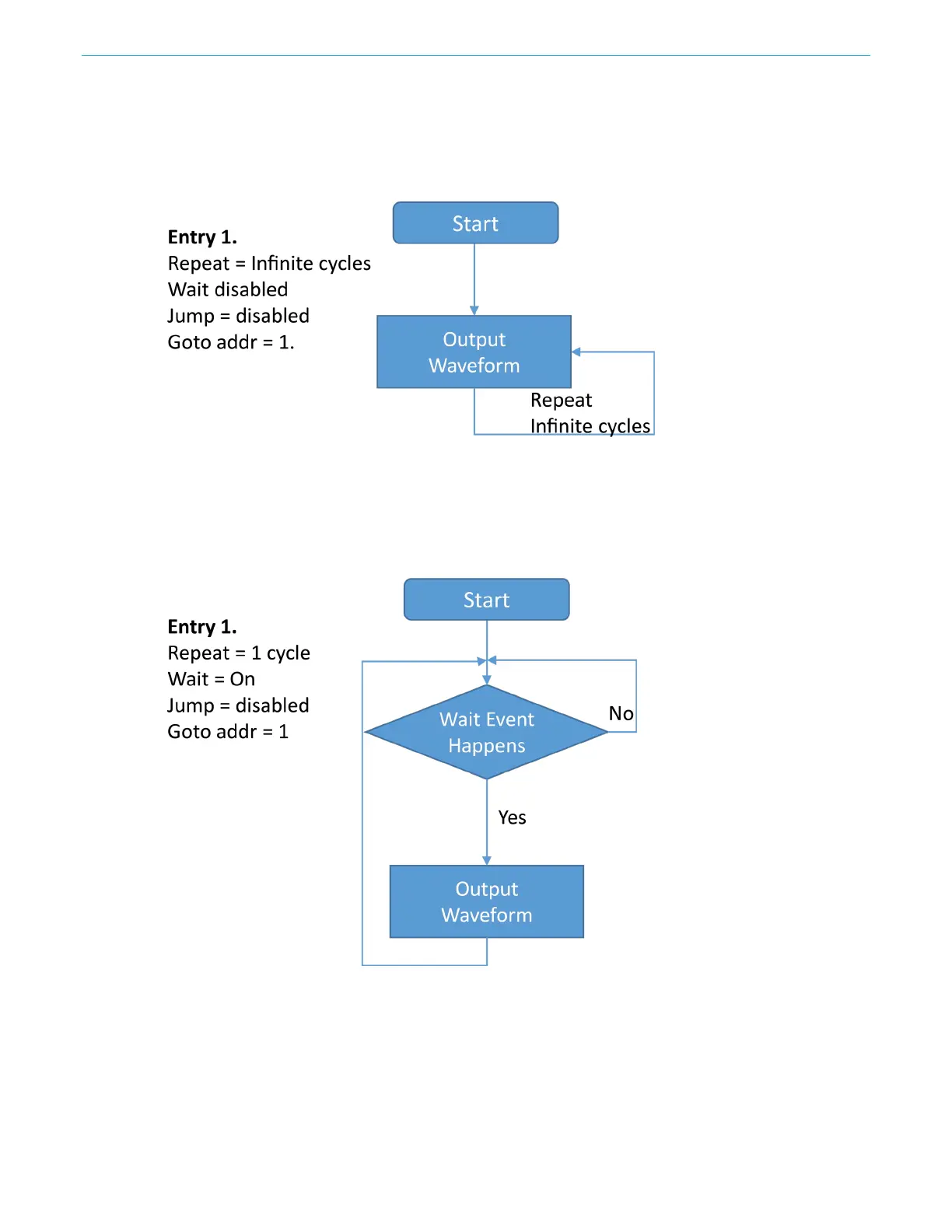

Continuous mode
There is only one entry (address = 1) in continuous mode; the waveform in the entry is output for
infinite cycles. Wait, Jump, and Goto are disabled in this mode.
Figure 87: Continuous mode
Triggered mode
There is only one entry (address = 1) in triggered mode. The output is held until the wait event is
triggered, then the waveform is output once (1 cycle). Then the instrument returns to the starting point
of the sequence, and waits for the next trigger event. Jump is disabled in this mode
Figure 88: Triggered mode
