Tektronix AFG31052 User Manual

Function introduction
AFG31000 Series Arbitrary Function Generator User's Manual 91

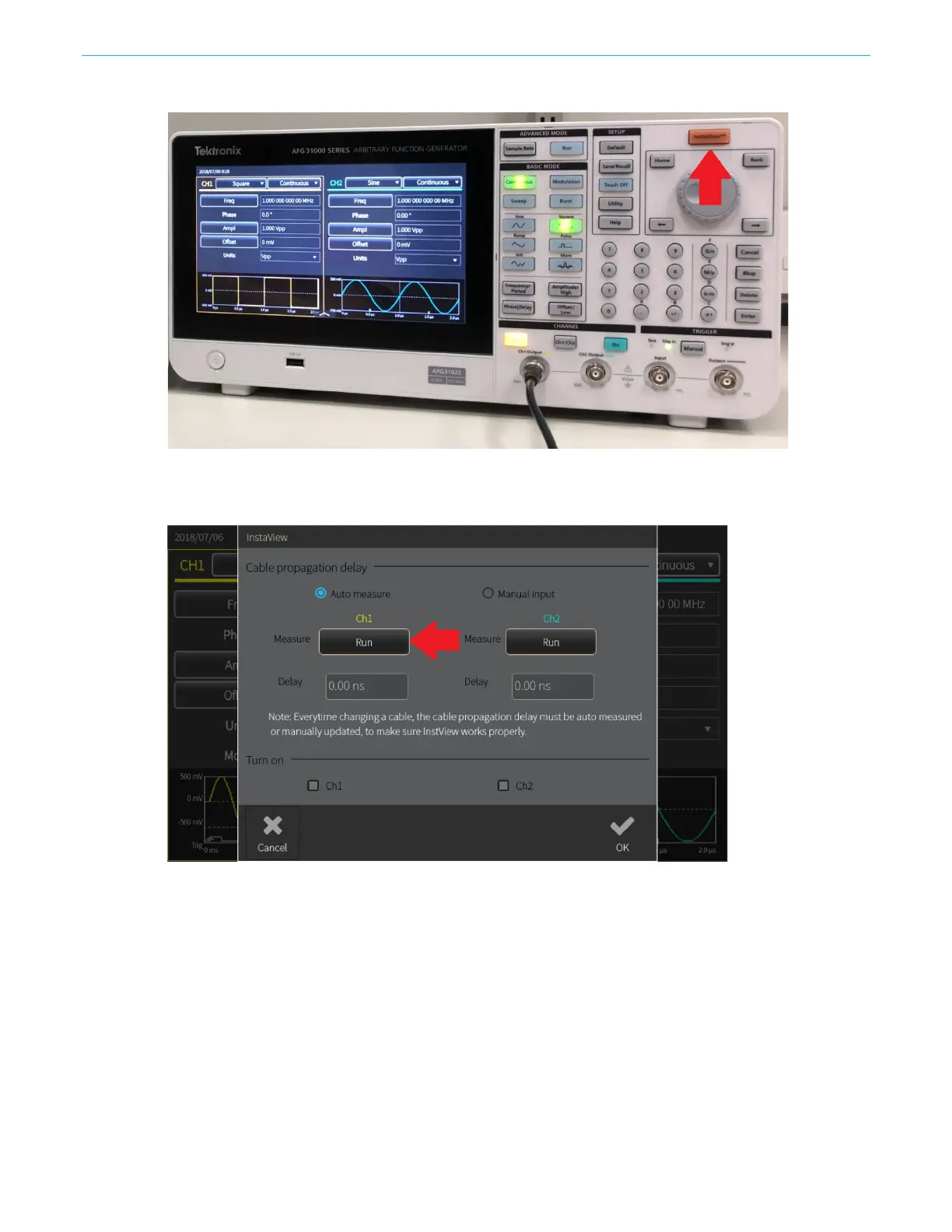

Figure 67: Set up InstaView on the AFG31000 instrument
2. Select CH1 and select Run button on the screen to automatically measure the cable propagation
delay.
Figure 68: Select channel one
3. Connect the BNC cable between CH1 output and Trigger In, then select OK.
